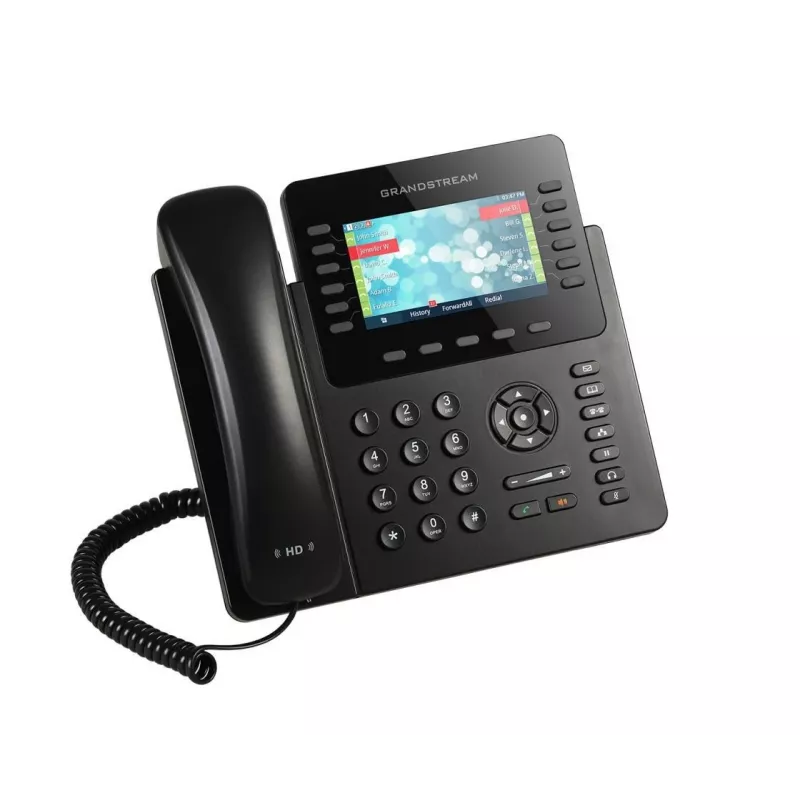

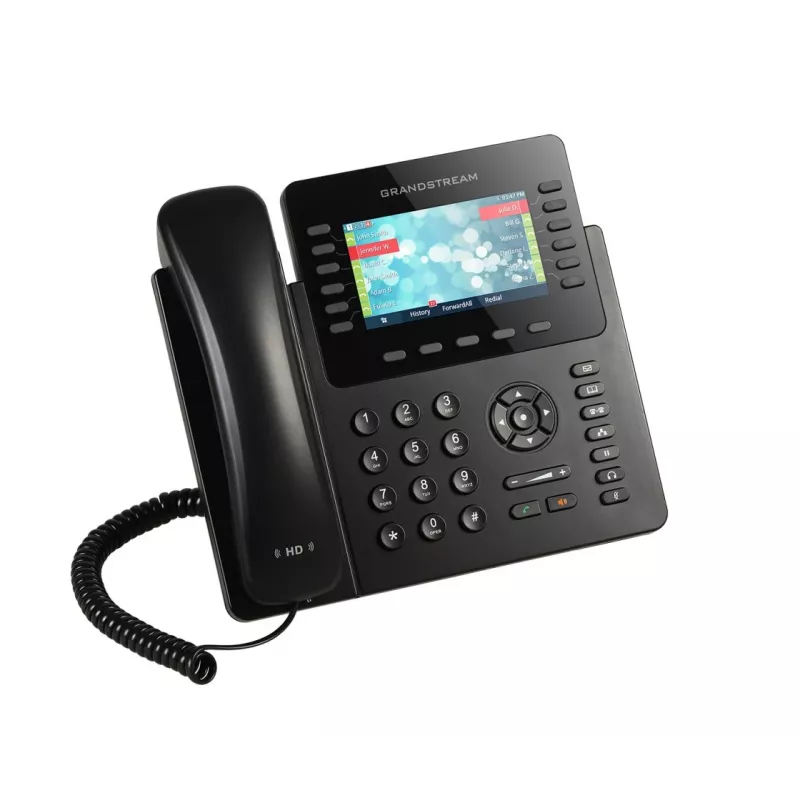

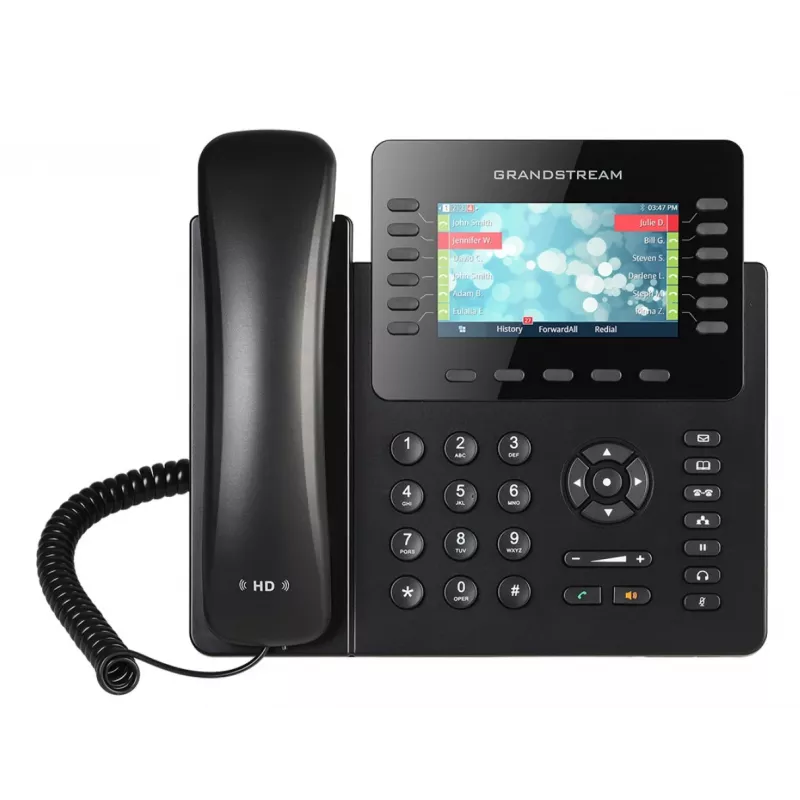

IP-telefoon Grandstream GXP2170 zwart

The Grandstream GXP2170 is a high-performance enterprise IP phone designed for users who handle large call volumes. It supports up to 12 line appearances and 6 SIP accounts, and features a 4.3-inch (480 x 272) color LCD, full HD audio, built-in Bluetooth, dual Gigabit Ethernet ports with integrated PoE, and a wired handset. The phone supports up to 48 on-screen BLF/speed-dial keys and can connect to up to four GXP2200EXT modules to provide access to as many as 160 BLF/speed-dial contacts. Its compact footprint (228 × 206 × 46 mm) and 2,000-entry phonebook make it suitable for busy office desks and executive workstations.

Advantages

The GXP2170 delivers advanced call handling with 12 lines and 6 SIP accounts while maintaining clear voice quality through full HD audio. Dual Gigabit ports and integrated PoE ensure reliable network connectivity and simplified installation. On-screen programmable BLF/speed-dial keys and support for external GXP2200EXT modules expand contact access for power users. Built-in Bluetooth enables pairing with mobile devices and Bluetooth headsets, increasing flexibility.

Suitable for

• Receptionists and operators managing heavy incoming call traffic
• Executives and managers requiring multiple line appearances and fast contact access
• Open-plan offices and shared workstations needing robust desk phones
• Enterprises deploying mass provisioning and secure VoIP endpoints

Key specifications

• Lines: up to 12 line appearances
• SIP accounts: up to 6
• Display: 4.3" color LCD, 480 × 272 resolution
• Speed-dial/BLF keys: 48 on-screen; expandable to 160 with up to four GXP2200EXT modules
• Audio: Full HD audio, 5-way conferencing
• Connectivity: Dual Gigabit Ethernet ports, PoE
• Wireless: Built-in Bluetooth
• Handset: Wired handset
• Phonebook capacity: 2000 entries
• Dimensions: 228 × 206 × 46 mm
• Weight: 0.98 kg

How to use

Connect the GXP2170 to your network using the Gigabit Ethernet port and enable Power over Ethernet if available, or use an appropriate power adapter. Register up to six SIP accounts through the phone’s web UI or provisioning server. Configure line appearances and assign on-screen BLF/speed-dial keys directly on the device or via provisioning templates. Pair Bluetooth devices from the phone’s settings menu to use mobile syncing or Bluetooth headsets. If additional BLF capacity is required, attach up to four GXP2200EXT modules to increase programmable keys.

Recommendations

For large deployments, use encrypted provisioning (TR-069 or encrypted XML) or Grandstream UCM zero-configuration to simplify mass provisioning and apply security settings (SRTP/TLS) consistently across endpoints.
