IT-BUDGET ventilator montagekit met thermostaat, houder, kabel en montagemateriaal - instelbaar 0-60°C (90ITBTKD180603KTH)

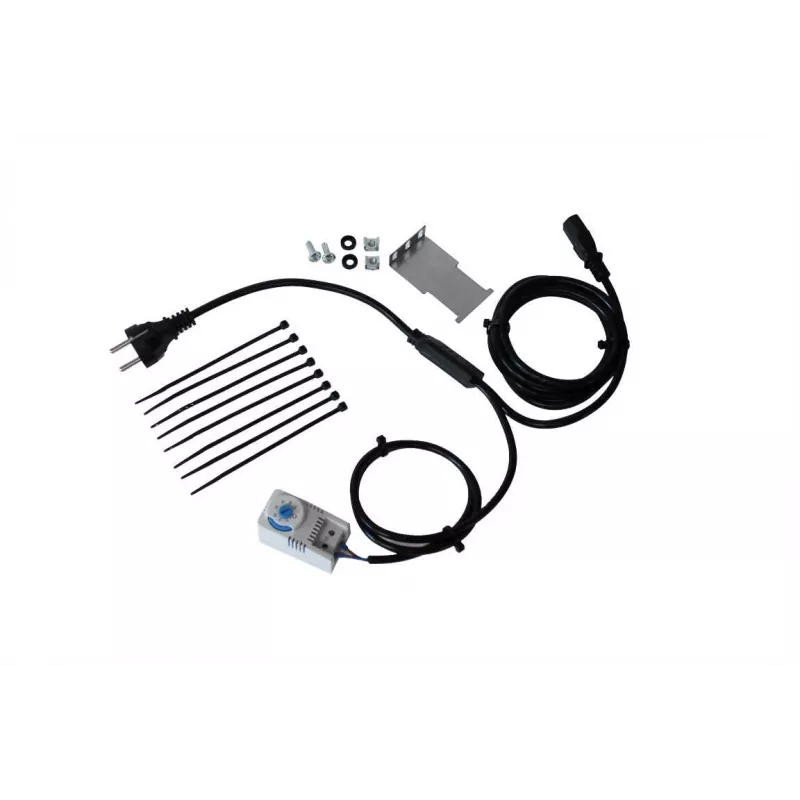

Fan control mounting kit with a mechanical thermostat that switches a connected fan on when the temperature rises. The set includes a thermostat, mounting bracket, connection cable, and mounting hardware for installation in IT cabinets, server racks, control panels, and industrial enclosures.

Advantages

Adjustable temperature range from 0°C to 60°C allows precise control of cooling fans. The normally open contact activates the fan only when cooling is needed, reducing noise and energy consumption. Screw terminals and pre-wired cable simplify connection.

Suitable for

• IT cabinets and server racks
• Control panels
• Industrial enclosures

Key specifications

• Thermostat type: Mechanical temperature controller
• Adjustable temperature range: 0°C to 60°C
• Switching principle: Normally open (NO) contact
• Max. switching voltage: 250V AC
• Max. switching current (resistive load): 10A
• Max. switching current (inductive load): 2A
• Connection type: Screw terminals (thermostat), pre-wired cable (fan)
• Cable length: 1.8 m
• Hysteresis: approx. 7K (±4K)
• Sensor element: Thermostatic bimetal
• Protection class: IP20
• Operating temperature: -20°C to +80°C
• Housing material: Plastic (thermostat), metal (bracket)

Recommendations

For reliable temperature-controlled ventilation in enclosures, this kit provides the necessary components for a straightforward installation.
