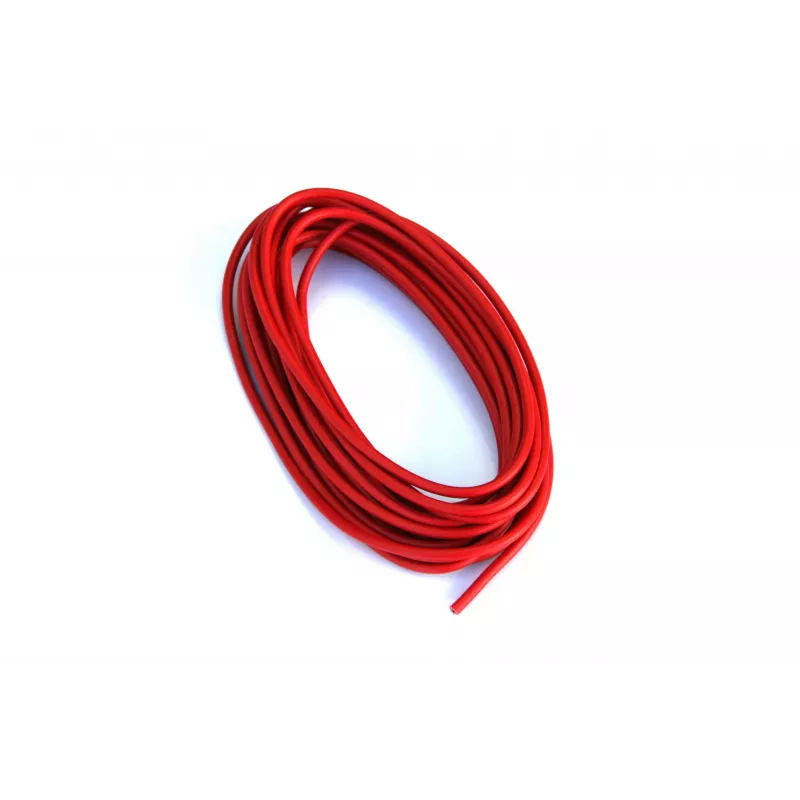

IWH voertuigkabel 5m, 1,5 mm², rood (19036)

Automotive electrical work often demands a cable that can handle the vibrations, temperature swings, and tight routing of a vehicle. The IWH Vehicle Cable 5m, 1.5 mm², Red (19036) provides a dependable single-core conductor for 12V and 24V systems, from lighting to accessories.

Who is it for

DIY mechanics, auto electricians, and workshop professionals who need a flexible, colour-coded cable for repairs, upgrades, or new installations in cars, motorcycles, boats, or agricultural machinery.

Main features

• Fine-stranded electrolytic copper conductor (Class 5) for easy routing and vibration resistance
• PVC insulation rated for -40°C to +85°C, self-extinguishing
• 5-metre length in red for clear identification of positive or signal lines
• Suitable for up to 60V DC, covering 12V/24V vehicle electrical systems

Specifications

• Conductor material: Electrolytic copper (Cu)
• Conductor construction: Fine-stranded, Class 5 per IEC 60228
• Insulation material: PVC
• Nominal cross-section: 1.5 mm²
• Cable length: 5 m
• Colour: Red
• Number of cores: 1
• Rated voltage: up to 60V DC
• Operating temperature range: -40°C to +85°C
• Outer diameter: 2.6 mm
• Flame retardancy: Self-extinguishing
• Oil resistance: Limited
• Acid resistance: Limited
• Abrasion resistance: Good
• Halogen-free: No

Tips

Use red for positive feeds or switched circuits to match common automotive wiring conventions. Always secure the cable with appropriate clips or loom to prevent chafing.
