IWH wipschakelaar groen 12V/24V 10A SPST LED verlicht paneelmontage 19030

Rated for 10 A at both 12 V and 24 V DC, this rocker switch handles high-current switching in a compact panel-mount form. The green LED illumination gives instant visual feedback on the circuit state, while the flat plug terminals accept standard 6.3 mm connectors for quick wiring.

Overview

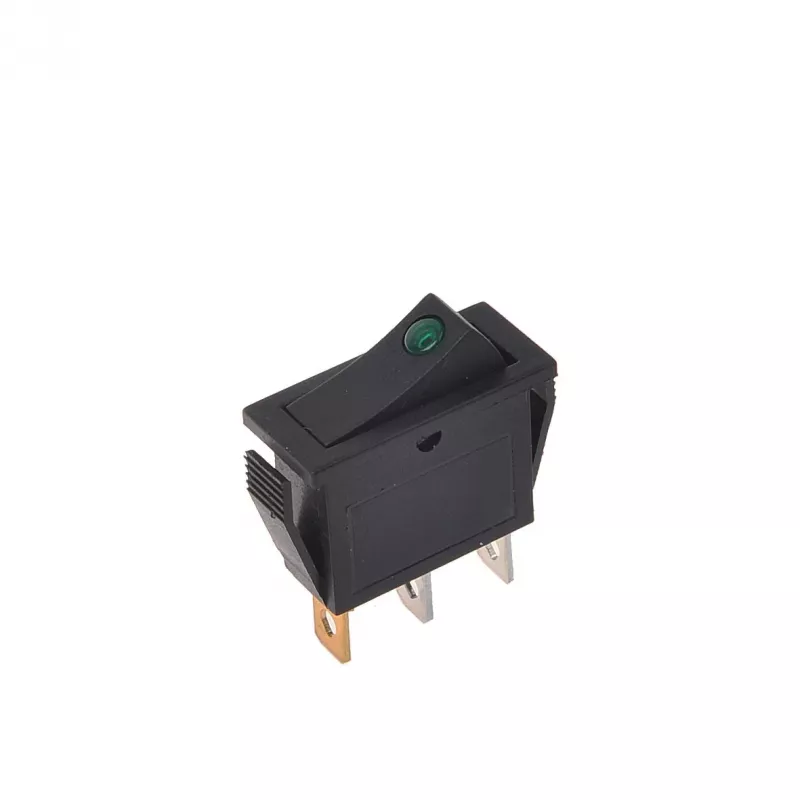

The IWH 19030 is a single-pole single-throw (SPST) rocker switch with an ON/OFF function. It is designed for panel mounting with a cutout diameter of 20.2 mm. The housing is made of black polyamide, and the actuator is translucent green, which glows when the switch is in the ON position. Operating temperature range is -20 to +85 °C, making it suitable for a wide range of environments.

What stands out

• 10 A current rating at 12 V or 24 V DC
• Built-in green LED illumination
• Panel mount with 20.2 mm cutout

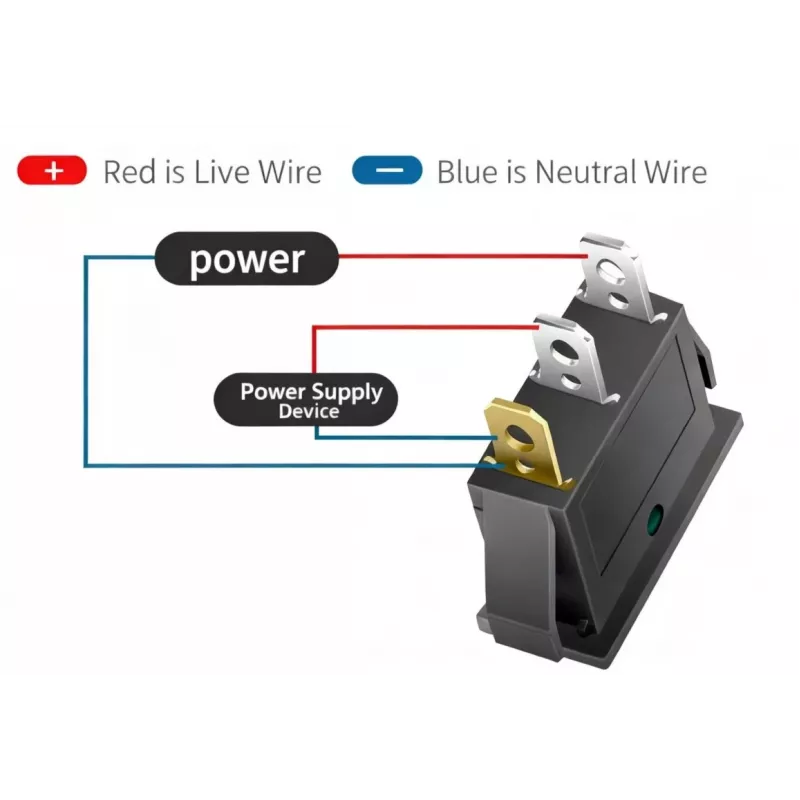

• Flat plug terminals (6.3 mm) for easy connection
• Durable polyamide housing

Technical details

• Switch type: Rocker switch
• Switching function: ON/OFF (SPST)
• Number of poles: 1
• Number of throws: 1
• Illumination colour: Green
• Illumination type: LED
• Operating voltage: 12 V / 24 V DC
• Current rating: 10 A
• Connection type: Flat plug terminals
• Terminal size: 6.3 mm
• Number of terminals: 3
• Mounting type: Panel mount
• Panel cutout diameter: 20.2 mm
• Housing material: Polyamide
• Housing colour: Black
• Actuator colour: Green (translucent)
• Electrical life: 10,000 cycles at rated load
• Operating temperature range: -20 to +85 °C

Our verdict

A reliable illuminated rocker switch for 12 V and 24 V DC applications, with clear status indication and straightforward installation.
