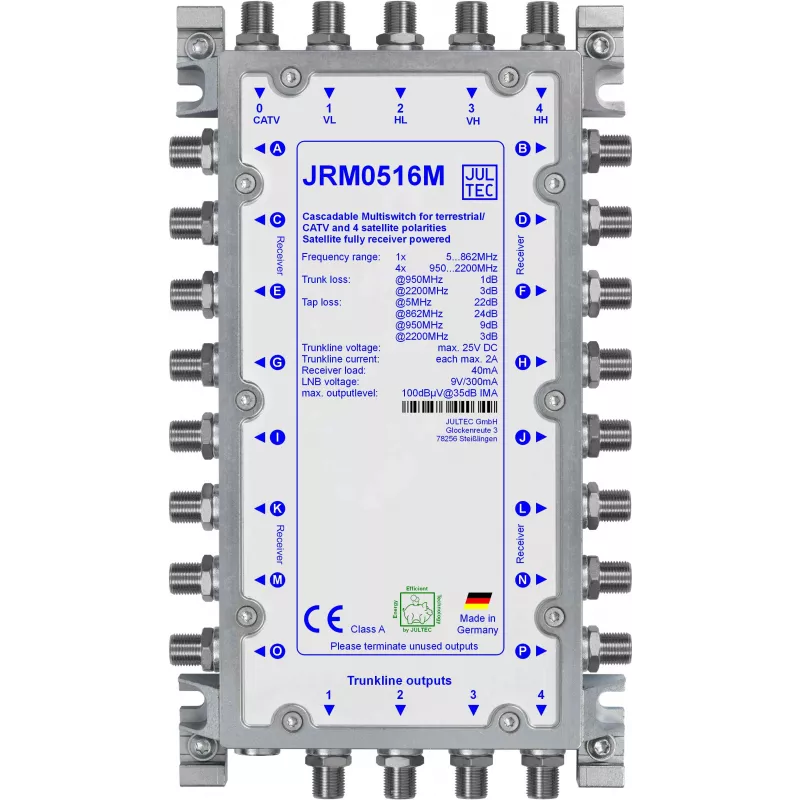

JULTEC JRM0516M 16-voudige multiswitch met 4 SAT-ingangen en 1 terrestrische ingang

The JULTEC JRM0516M is a professional-grade multiswitch designed for distributing satellite and terrestrial TV signals to up to 16 subscribers. With 4 SAT inputs (HL, VL, HH, VH) and 1 terrestrial input, it supports both horizontal/vertical and high/low band switching, making it ideal for multi-satellite or single-satellite systems with a return path. The integrated switching power supply ensures low power consumption (<1.5 W without LNBs), while the metal housing guarantees durability and reliable performance in demanding environments.

Advantages

• Supports up to 16 subscriber outputs for large installations
• 4 SAT inputs for full-band reception (950-2200 MHz)
• Passive terrestrial path (47-862 MHz forward, 5-65 MHz return)
• DiSEqC 2.0 control for advanced satellite switching
• Low insertion loss (0 dB SAT, 20-22 dB terrestrial)
• Integrated power supply with high LNB current capacity (500 mA per input, 2000 mA total)
• Compact metal housing for wall or rack mounting

Suitable for

• Multi-dwelling units (apartments, hotels)
• Single-family homes with multiple TV outlets
• Commercial installations requiring reliable signal distribution
• Systems combining satellite and terrestrial (DVB-T/T2) signals

Key specifications

• Number of SAT Inputs: 4 (HL, VL, HH, VH)
• Number of Terrestrial Inputs: 1
• Number of Subscriber Outputs: 16
• SAT Frequency Range: 950 - 2200 MHz
• Terrestrial Frequency Range (Forward): 47 - 862 MHz (passive)
• Terrestrial Frequency Range (Return Path): 5 - 65 MHz (passive)
• SAT Insertion Loss (Typ.): 0 dB
• Terrestrial Insertion Loss (Typ.): 20 - 22 dB (passive)
• Max. Output Level SAT: 90 dBµV
• Max. Output Level Terrestrial: 85 dBµV
• LNB Supply Voltage: 13V / 18V (receiver controlled)
• LNB Control: 0/22 kHz Tone
• DiSEqC Control: DiSEqC 2.0 (backward compatible)
• Power Supply: Integrated switching power supply
• Power Consumption (Multiswitch only): < 1.5 W (without LNBs)
• Max. LNB Current: 500 mA per input (2000 mA total)
• Connector Type: F-type (all inputs/outputs)
• Operating Temperature: -20°C to +50°C
• Housing Material: Metal

Recommendations

For optimal performance, use high-quality F-type connectors and ensure proper grounding. The JRM0516M is compatible with all standard satellite receivers and DiSEqC 2.0 controllers. Ideal for expanding existing TV distribution systems.
