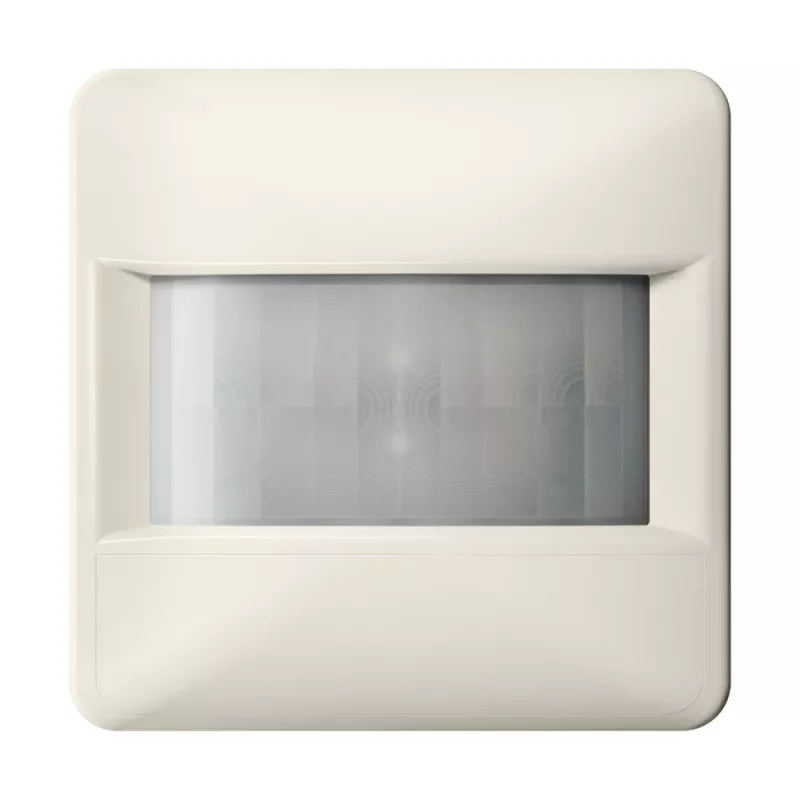

Jung CD17180 automatische schakelaar 1,1 m standaard bewegingsmelder-inzet (CD17180)

For electricians and installers working on Jung CD series flush-mounted installations, the CD17180 automatic switch insert provides reliable motion-activated lighting control in compact spaces. Mounted at a height of 1.1 m, its 180° passive infrared sensor detects movement within a radius of approximately 1.1 m, making it ideal for corridors, staircases, and small rooms where hands-free switching is essential.

Key specifications

• Sensor type: Passive infrared (PIR)
• Detection angle: 180°
• Detection range: approx. 1.1 m radius at 1.1 m mounting height
• Operating voltage: 230 V AC, 50/60 Hz
• Switching capacity: 2300 W incandescent/halogen, 1500 W electronic transformers, 400 W LED, 1200 VA fluorescent (uncompensated)
• Time delay: adjustable approx. 1–15 minutes
• Brightness threshold: adjustable approx. 0–80 lux or continuous operation
• Protection class: IP20
• Installation: flush-mounted
• Material: thermoplastic (PC)
• Colour: Alpine White

Why choose it

The CD17180 offers flexible adjustment of time delay and brightness threshold, allowing precise adaptation to the environment. It supports short-term operation and a test function for commissioning, and can be combined with an extension unit for expanded coverage.

Ideal use cases

• Automatic lighting in corridors and hallways
• Staircase lighting with hands-free operation
• Small rooms, closets, or utility areas
• Integration into Jung CD series flush-mounted installations

Good to know

The insert is designed for flush-mounted installation and is compatible with the Jung CD series design line. It operates on standard 230 V AC mains and is intended for indoor use.
