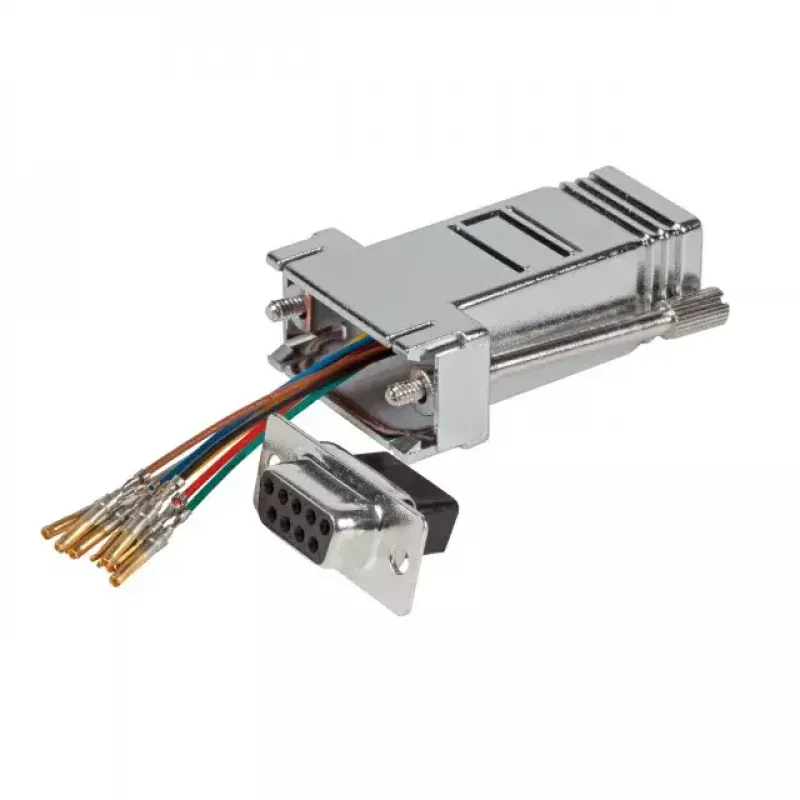

Kabeladapter EFB Elektronik ETM23067 — DB-09 naar RJ-45, grijs

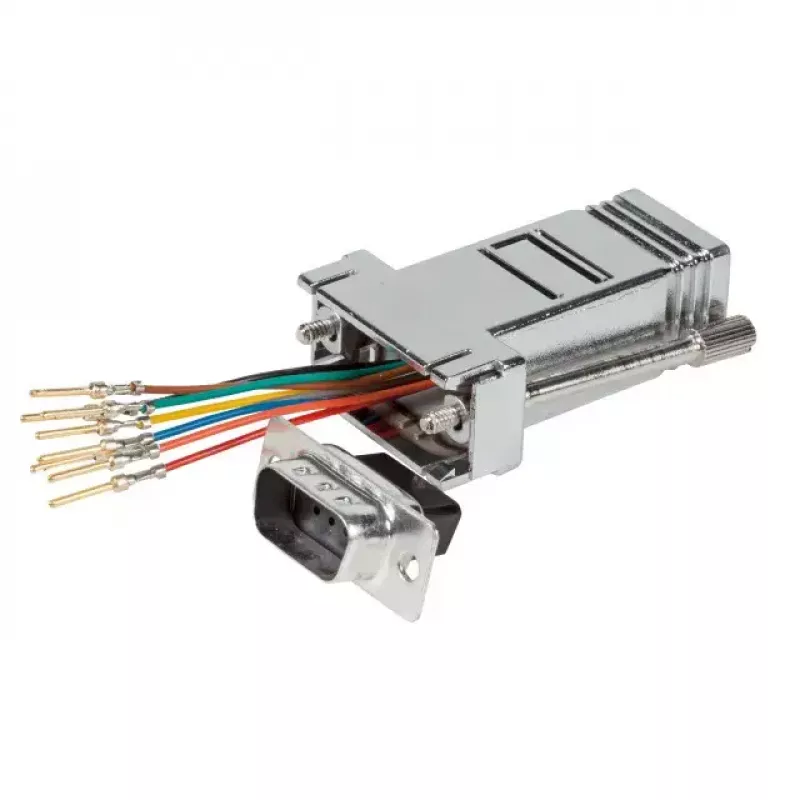

EFB Elektronik ETM23067 cable gender changer DB-09 to RJ-45 in grey is an adapter that converts a DB-09 (male or female) serial connector to an RJ-45 network-style plug. The adapter features a metallized housing and a freely configurable wiring scheme, allowing it to be used where a DB-09 to RJ-45 connection is required.

Advantages

The metallized housing provides improved shielding and mechanical durability. Freely configurable wiring lets technicians map pins according to the target device requirements. Compact grey form factor makes the adapter easy to install in confined spaces.

Suitable for

• Connecting RS-232 serial equipment to devices using RJ-45 console or custom wiring
• Field wiring and on-site adapter configurations
• Repairing or modifying existing DB-09 to RJ-45 connections

Key specifications

• Brand: EFB Elektronik
• Model / MPN: ETM23067
• Connector 1: DB-09
• Connector 2: RJ-45
• Colour: Grey
• Housing: Metallized
• EAN: 4049759029531

How to use

Determine the required pinout for your DB-09 and RJ-45 endpoints and wire the adapter accordingly, using appropriate tools for secure terminations. After wiring, verify continuity and correct signal mapping with a multimeter or loopback test before connecting powered equipment. Mount the adapter in place and ensure the metallized housing is properly grounded if shielding is required.

Recommendations

Use the ETM23067 in low-voltage serial applications and avoid exposing the adapter to moisture or excessive mechanical stress. Confirm pin assignments with device manuals to prevent signal conflicts or damage.
