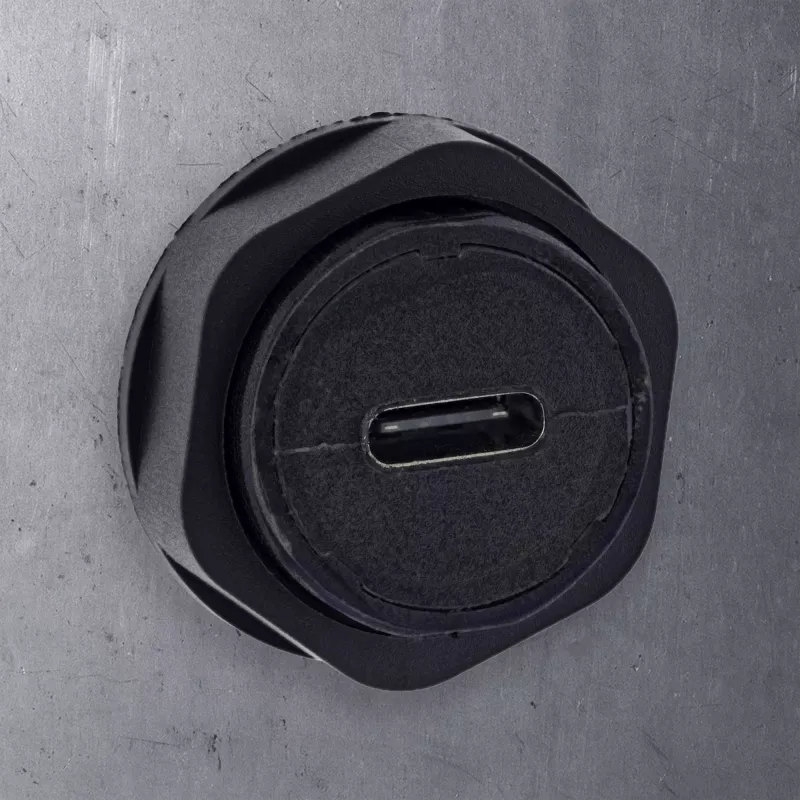

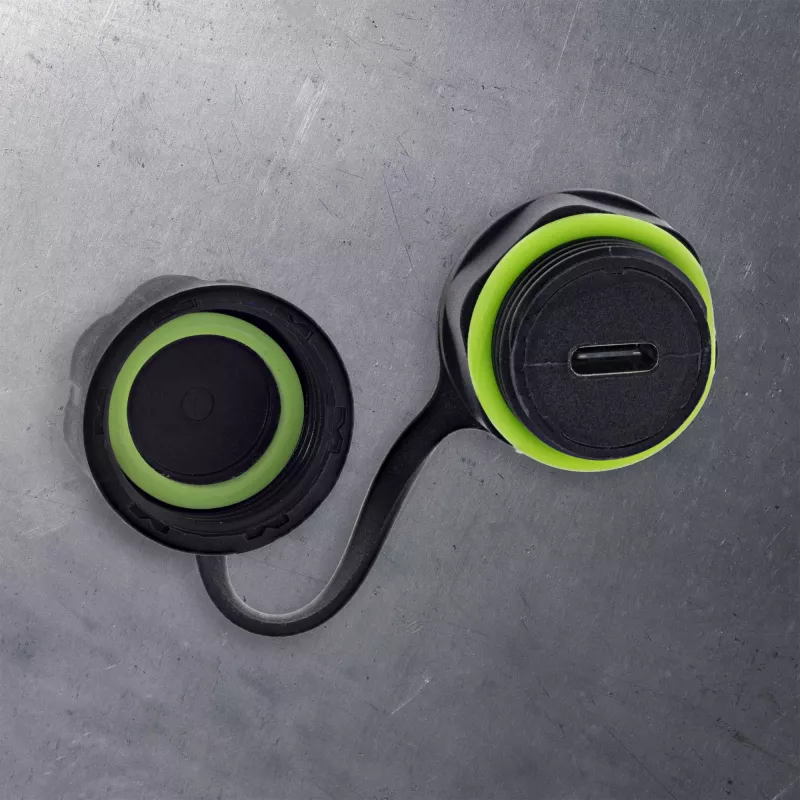

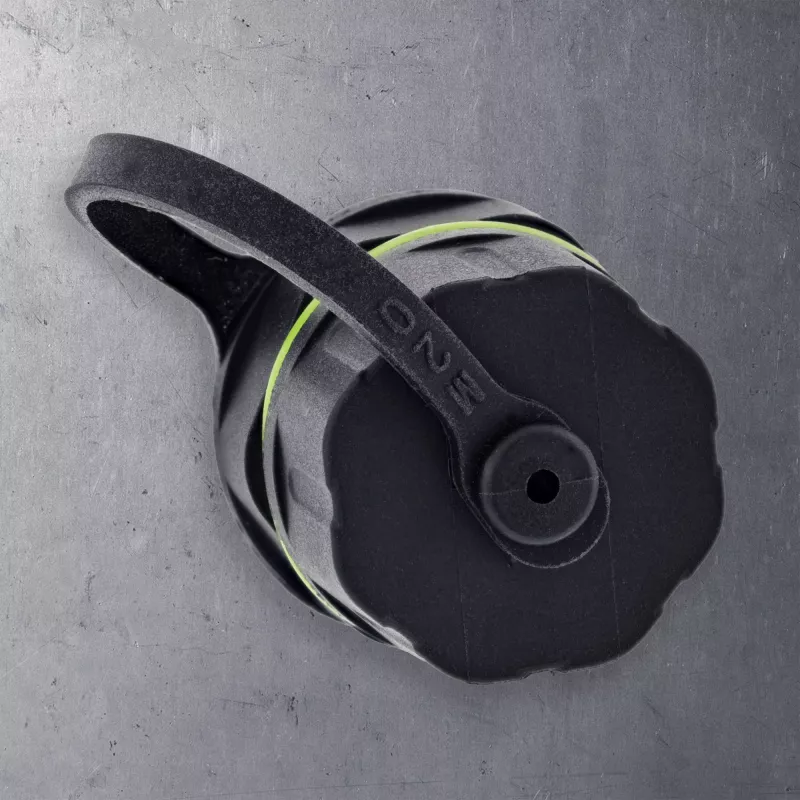

Kabelkoppeling InLine 69927O — USB-adapter (InLine 69927O)

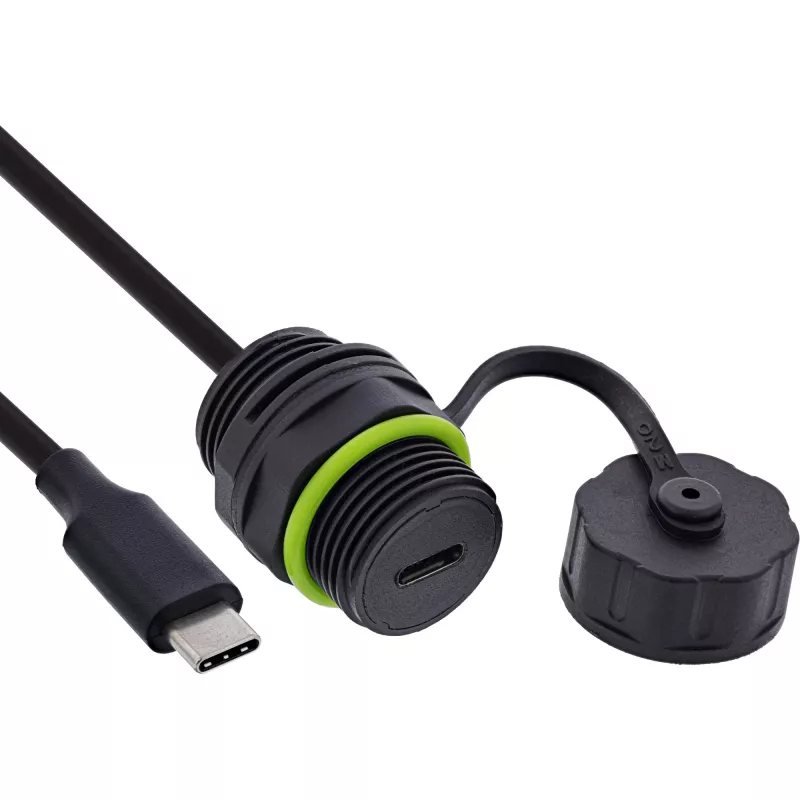

50 cm integrated USB-C cable with plug:Female to male – ideal for enclosure mounting or low-loss, direct connections.
With IP68 protection for harsh conditions:The robust design with silicone seal provides reliable protection against moisture and dust.
USB-C performance for data and power:Transfers up to 5 Gb/s and 5 V/2 A – ideal for communication and charging applications.
Shielded against electromagnetic interference:For reliable signals in sensitive technical or industrial environments.
Easy installation:Can be easily integrated into enclosures, technical boxes, or distributors.

The InLine® USB-C cable coupling with 50 cm cable is the ideal solution for applications requiring a weatherproof, robust, and low-loss USB-C connection. The permanently integrated cable with connector reduces the number of transitions – ideal for enclosure installation, embedded systems, or technical field installations.
The system offers IP68 protection against water and dust and, thanks to its silicone seal and robust PA66 housing, is also suitable for permanent outdoor use or in industrial environments. The shielded design prevents interference from electromagnetic fields – perfect for machines, control systems, or sensitive measurement technology, for example.
The cable supports data rates of up to 5 Gb/s and a power supply of 5 V and 2 A. Installation is tool-free via an M20 thread.
This connector is ideal for anyone who needs a high-quality, weatherproof, and shielded USB-C connection with a fixed cable – compact, reliable, and versatile.

Material: Nylon (PA66)
Thread size: M20
Module: USB-C socket/plug
Seal: Silicone
Transfer rate: 5 Gb/s
Current: 2 A
Voltage: 5 V
Charging: Yes
Protection rating: IP68
Temperature resistance: –25 °C to +105 °C

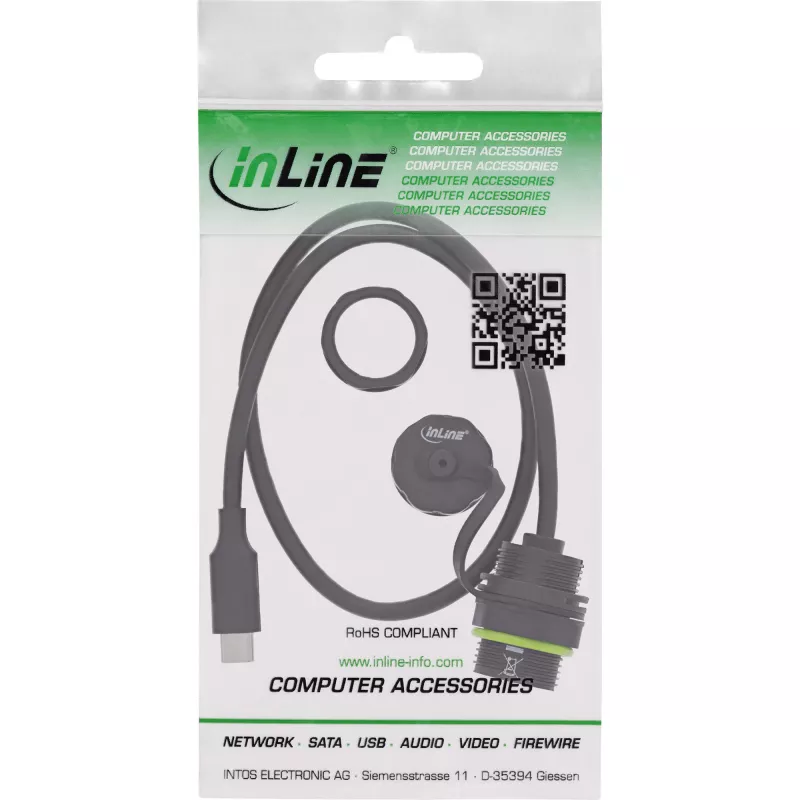

InLine 69927O. Product type: Cable coupler, Product colour: Black, Material: Polyamide, Silicone. Compliance certificates: TÜV mark. Width: 28 mm, Depth: 500 mm, Height: 28 mm. Quantity per pack: 1 pc(s). Package width: 70 mm, Package depth: 140 mm, Package height: 30 mm

How to use

Install the unit by mounting it into an M20 threaded hole in an enclosure or panel; the integrated cable provides a direct connection to the internal device. Ensure the silicone seal is correctly seated to maintain IP68 protection. Connect the external USB-C cable or device to the exposed connector and route the integrated cable to the internal USB-C socket or interface. No special tools are required for basic installation.

Recommendations

For long-term outdoor or industrial installations, verify compatibility with connected devices regarding the 5 V/2 A power limit and ensure that cable routing avoids sharp edges or mechanical strain to preserve the silicone seal and shielding performance.
