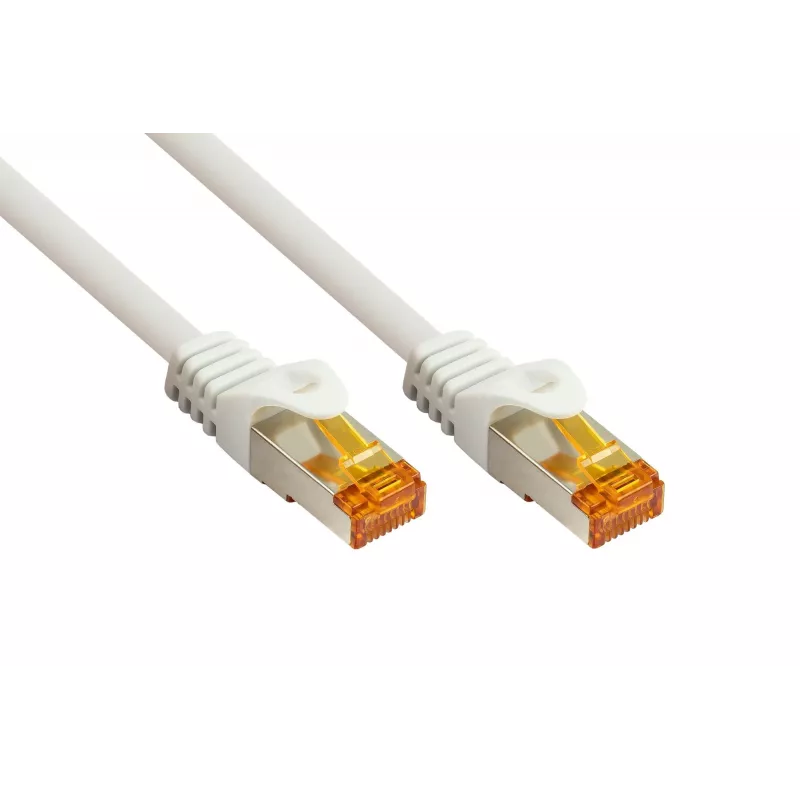

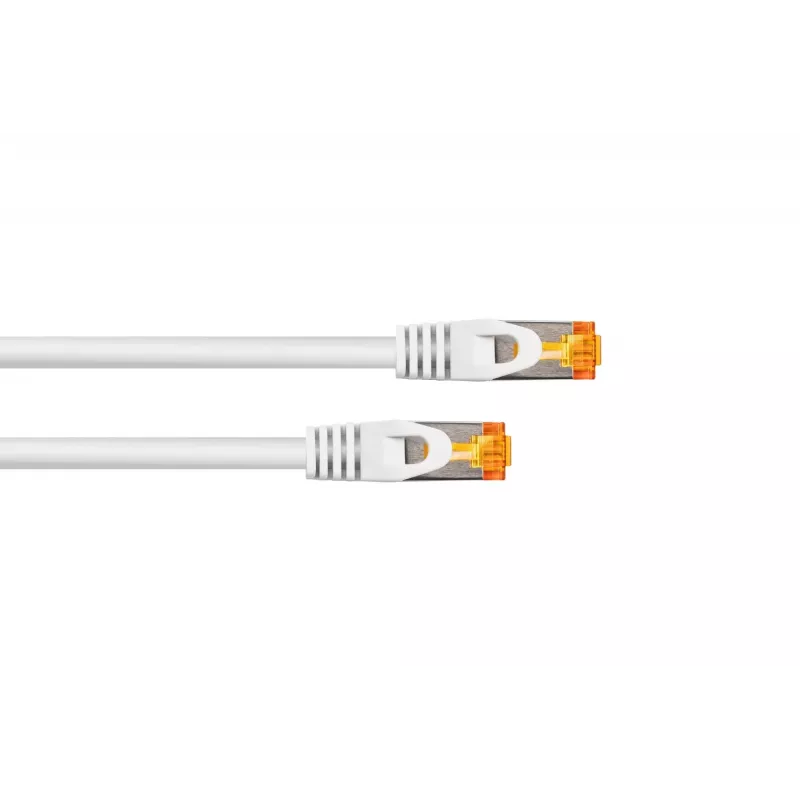

KABELMEISTER Cat.7 S/FTP patchkabel, TPE-mantel, halogeenvrij, wit, 0,25 m

When rack density is tight and every millimetre counts, a patch cable that refuses to bend is a liability. The KABELMEISTER PK7-TPE-003W solves that with a highly flexible TPE jacket wrapped around a genuine Cat.7 raw cable. At just 0.25 m, it keeps connections short, tidy, and free of signal-killing slack – without sacrificing the headroom of 600 MHz bandwidth.

Highlights

• Cat.7 S/FTP construction: individually foil-shielded pairs (PiMF) plus overall braid for superior noise immunity.
• 10 Gigabit Ethernet ready: supports 10GBASE-T up to 100 m, with full backward compatibility to Cat.6a/6/5e/5.
• Halogen-free TPE jacket: low smoke, zero halogen, and exceptionally flexible for easy routing in tight spaces.

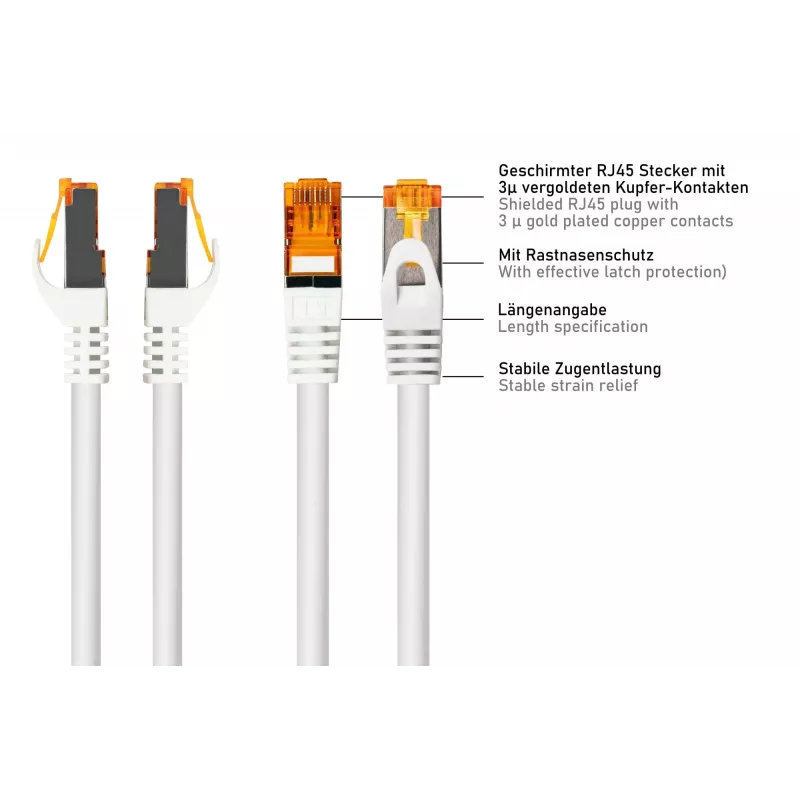

• Gold-plated RJ45 connectors: corrosion-resistant contacts ensure reliable, long-lasting connections.
• Stranded 26 AWG copper conductors: oxygen-free copper for maximum conductivity and durability in patch applications.

In daily use

This 0.25 m patch cable is ideal for patching between adjacent ports on a switch, connecting a patch panel to a device directly above or below, or cleaning up cable management in a server cabinet. The TPE jacket remains pliable even in cool environments, so you can dress it neatly without kinking. Because it is halogen-free, it is also suitable for installations where fire safety regulations demand low-smoke materials.

Full specifications

• Length: 0.25 m
• Cable category: Cat.7 (raw cable), performance Cat.7
• Shielding: S/FTP (PiMF)
• Bandwidth: up to 600 MHz
• Data rate: 10 Gbps
• Conductor: stranded copper, 26 AWG, oxygen-free
• Jacket: TPE, halogen-free (LSZH)
• Connectors: RJ45 (8P8C) male to RJ45 (8P8C) male, gold-plated contacts
• Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Final note

For short, high-performance links where flexibility and low smoke emission matter, the PK7-TPE-003W delivers Cat.7 reliability in a compact, easy-to-manage form.
