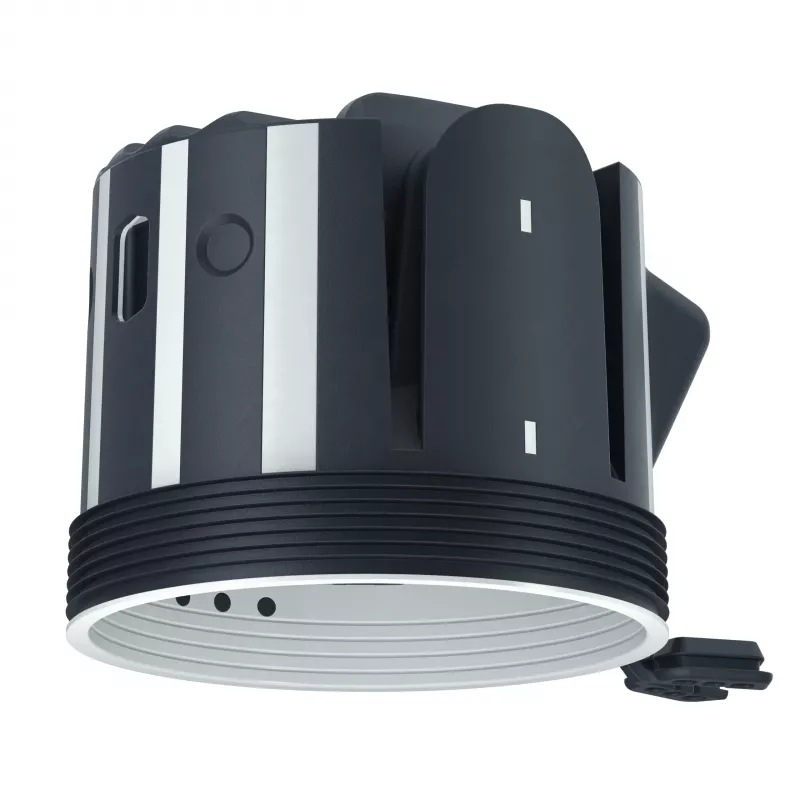

Kaiser Elektro ThermoX LED inbouwbehuizing 9320-20 uitsparing 81mm inbouwdiepte 60mm

Recessed LED luminaires often suffer from heat buildup and air leakage in insulated ceilings, compromising both performance and building efficiency. The Kaiser Elektro ThermoX LED 9320-20 installation housing solves these issues with integrated thermal management and certified fire-rated, air-tight construction. This housing accommodates luminaires with an 81 mm cut-out and up to 60 mm installation depth, providing a secure, energy-efficient recessed mounting solution.

Who is it for

Electricians and contractors working on new construction or renovation projects where recessed LED luminaires must be installed in insulated ceilings. It is ideal for energy-efficient buildings requiring fire protection and air-tightness, as well as for applications in cavity walls and solid walls.

Main features

• Integrated ThermoX technology for superior heat dissipation, extending LED lifespan
• Certified for fire-rated installations, maintaining ceiling fire resistance
• Air-tight design prevents air leakage, reducing energy loss
• Safe for direct contact with insulation, simplifying installation
• Halogen-free plastic construction for environmental safety
• Supports one luminaire with 81 mm cut-out and up to 60 mm depth

Specifications

• Cut-out diameter: 81 mm
• Maximum installation depth: 60 mm
• Material: High-quality plastic
• Protection class: IP20
• Colour: Grey
• Halogen-free: Yes
• Number of luminaires: 1
• Mounting type: Recessed

Tips

For best performance, pair with compatible LED luminaires and ensure installation by a qualified electrician. This housing is designed for recessed mounting in ceilings with insulation, so verify the insulation type and thickness before installation to maintain fire rating and air-tightness.
