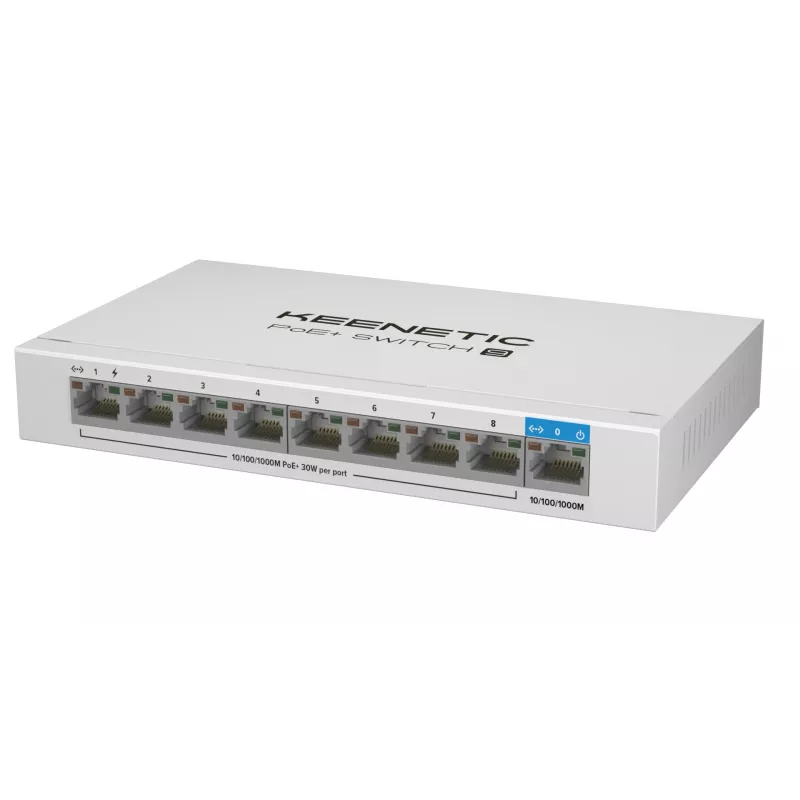

Keenetic Switch 9 PoE+ 9-poorts Gigabit Ethernet-switch

Powering multiple network devices such as IP cameras, access points, and VoIP phones often requires separate power supplies and complicated cabling. The Keenetic Switch 9 solves this by combining data and power delivery over a single Ethernet cable, simplifying installation and reducing clutter.

Who is it for

This switch is ideal for small offices, retail spaces, and homes that need to connect and power several PoE-capable devices without the hassle of individual power adapters. It suits users who want a reliable, plug-and-play network expansion without complex configuration.

Main features

• 8 PoE+ Gigabit Ethernet ports with IEEE 802.3af/at support and a total power budget of 120 W
• 1 additional Gigabit uplink port for connection to a router or existing network
• Unmanaged operation – no configuration needed, just connect and go
• Fanless design for silent operation, suitable for noise-sensitive environments
• Desktop or wall-mountable form factor for flexible placement

Specifications

• Total ports: 9 (8 PoE+ + 1 uplink)
• Port speed: Gigabit Ethernet (10/100/1000 Mbps)
• PoE standard: IEEE 802.3af/at (PoE+)
• Total PoE power budget: 120 W
• Switching capacity: 18 Gbps
• Forwarding rate: 13.39 Mpps
• MAC address table: 4K entries
• Jumbo frame support: 9 KB
• Management type: Unmanaged
• Fanless: Yes
• Mounting: Desktop, Wall-mountable
• Power supply: External DC 54V / 2.22A
• LED indicators: Power, Link/Act, PoE Status
• Operating temperature: 0°C to 40°C
• Networking standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3af, 802.3at

Tips

To maximize the PoE budget, ensure the total power draw of connected devices does not exceed 120 W. For optimal performance, use Cat5e or higher Ethernet cables.
