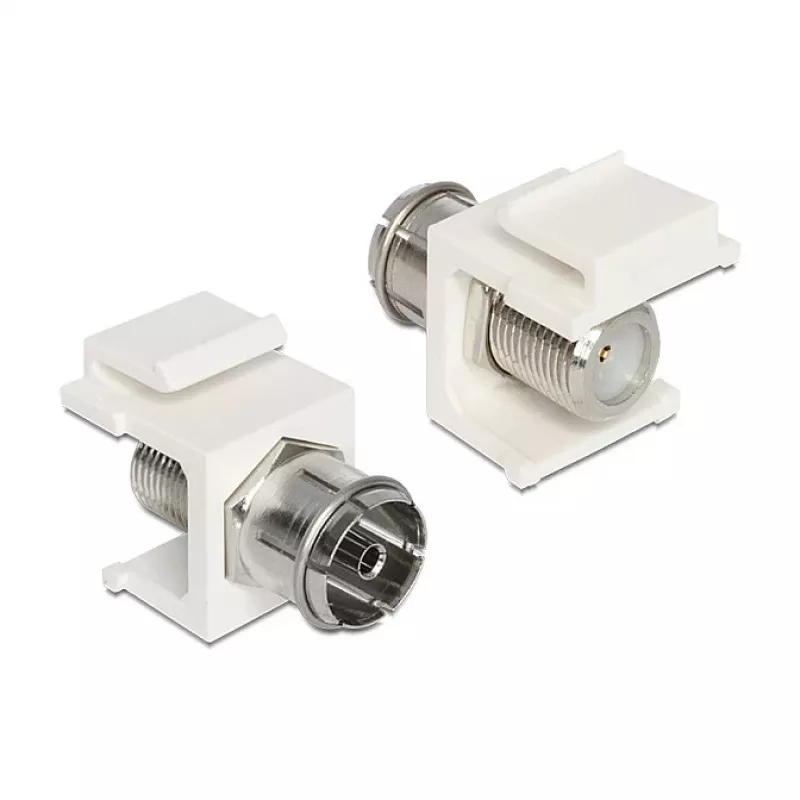

Keystone-module DeLOCK 86302

The DeLOCK 86302 keystone module provides a compact interface to connect antenna cables with an IEC connector to cables with an F-connector (coax). It has a white housing and standardised keystone dimensions for snap-in mounting into keystone patch panels, faceplates or surface-mount boxes. With its small footprint it is suitable for both home and professional installations where reliable coax connections are required.

Advantages

The module combines an IEC connector and an F connector in a single keystone element, enabling a tidy transition between different coax connector types. Its standardised dimensions and white colour allow easy integration into common keystone panels, face plates or surface-mount boxes. The compact size supports space-saving installations without additional adapters.

Suitable for

• Connecting antenna leads with IEC to cables or devices using F-connectors
• Keystone patch panels and wall faceplates
• Surface-mount or flush-mounted installations in home and professional setups

Key specifications

• Brand: DELOCK
• Model / MPN: 86302
• EAN: 4043619863020
• Connector 1: IEC
• Connector 2: F
• Product colour: White
• Dimensions (approx.): 16.3 mm (W) x 27.8 mm (D) x 22.3 mm (H)

How to use

Insert the keystone module into a compatible keystone opening until it snaps into place. Connect the antenna cable with an IEC connector to the IEC side and attach the coax cable or device with an F-connector to the F side. Ensure both connectors are securely fastened to maintain a stable and low-loss connection.

Recommendations

For best performance, mount the module in a properly sized keystone panel or faceplate and avoid excessive bending or tension on the coax cables. Check connector tightness after installation to prevent signal loss.
