Keystone-module DeLOCK 86320

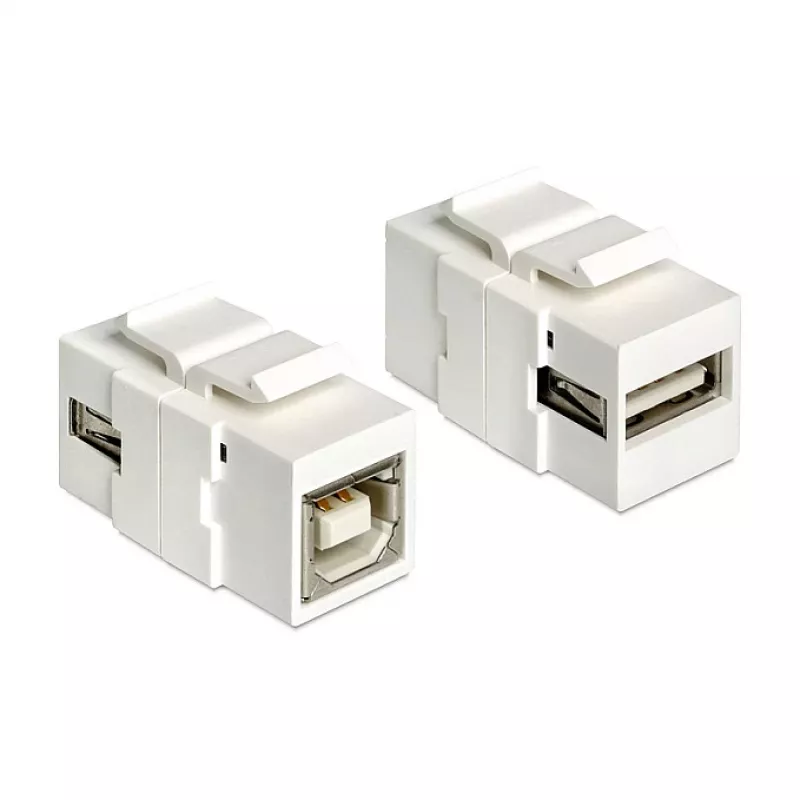

The DeLOCK 86320 keystone module provides USB 2.0 A and USB 2.0 B connectors in a compact, standardized housing suitable for keystone wall plates, faceplates and surface-mount boxes. With dimensions of 16.8 mm (width) × 34.4 mm (depth) × 22.3 mm (height) and a white finish, the module is intended to extend USB connections for home and office equipment while maintaining compatibility and reliable data transfer.

Advantages

The module's standardized keystone form factor allows snap-in installation into compatible panels and plates without additional tools. Inclusion of both USB 2.0 A and USB 2.0 B connectors supports a range of peripheral and host devices. Its compact dimensions and white colour make it unobtrusive in typical installation environments.

Suitable for

• Extending USB 2.0 connections between devices and hosts
• Installation in keystone patch panels
• Use in wall faceplates and surface-mount boxes
• Home and office USB cabling setups

Key specifications

• Brand: DELOCK
• Model / MPN: 86320
• EAN: 4043619863204
• Connectors: USB 2.0 A and USB 2.0 B
• Dimensions: 16.8 mm (W) × 34.4 mm (D) × 22.3 mm (H)
• Colour: White
• Category: Outlets / Keystone module

How to use

Insert the DeLOCK 86320 keystone module into a compatible keystone opening in a patch panel, faceplate or surface-mount box until it snaps into place. Connect a USB 2.0 A or B cable to the corresponding female connector on the module; on the opposite side plug the matching cable to the device or host. Ensure cables are routed and secured to avoid strain on the connectors.

Recommendations

Use USB 2.0 cables and devices to ensure compatibility with the module. Do not force incompatible connector types; verify A-to-A or B-to-B cable requirements before connecting. For permanent installations, secure cables and avoid excessive bending near the module.
