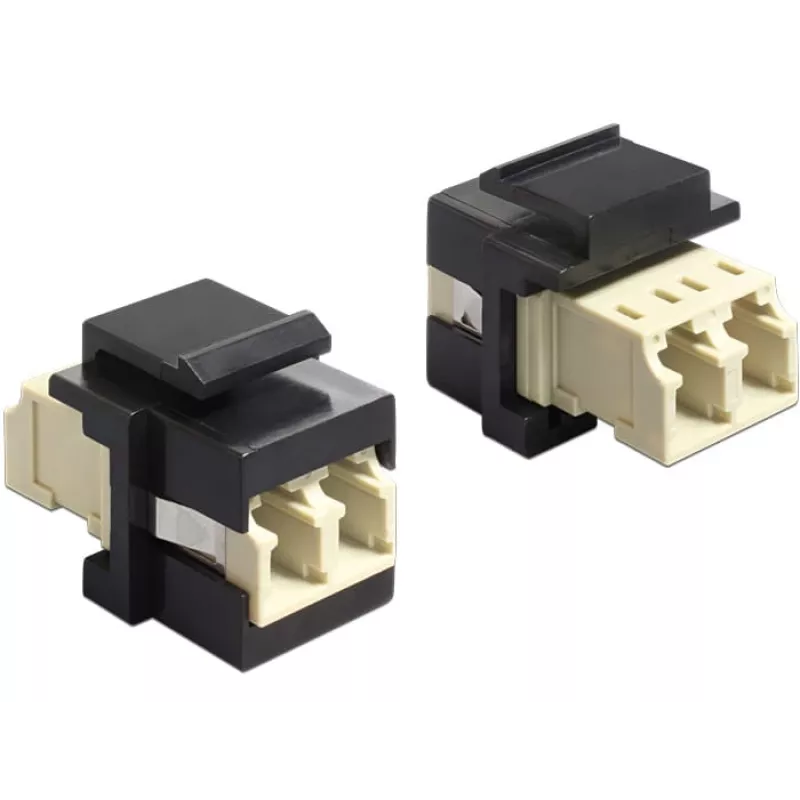

Keystone-module DeLOCK 86330

The DeLOCK 86330 keystone module provides a compact solution to extend optical fiber connections. It features dual LC connectors in a slim, standardized housing that fits into common keystone-compatible face plates, patch panels and surface-mount boxes. Available in black and white, the module is designed for straightforward snap-in mounting and reliable fiber connectivity.

Advantages

The keystone module’s standardized dimensions (29.2 mm width, 17.8 mm depth, 22.1 mm height) ensure compatibility with most keystone cutouts and simplify installation. Dual LC connectors allow for duplex fiber connections, and the compact housing supports tidy cable management in networking panels and wall plates.

Suitable for

• Fiber optic patch panels
• Keystone wall plates and faceplates
• Surface-mount boxes and small enclosures
• Local area network (LAN) fiber terminations

Key specifications

• Brand: DELOCK
• Model / MPN: 86330
• EAN: 4043619863303
• Connector type: Dual LC
• Dimensions: 29.2 mm (W) x 17.8 mm (D) x 22.1 mm (H)
• Colours: Black, White
• Category: Accessories for networks

How to use

Insert the module into a compatible keystone cutout by aligning the housing and snapping it into place. Route fiber cables to the rear of the module and terminate or connect LC pigtails/adapters as required. Ensure connectors are clean before mating to maintain optimal optical performance.

Recommendations

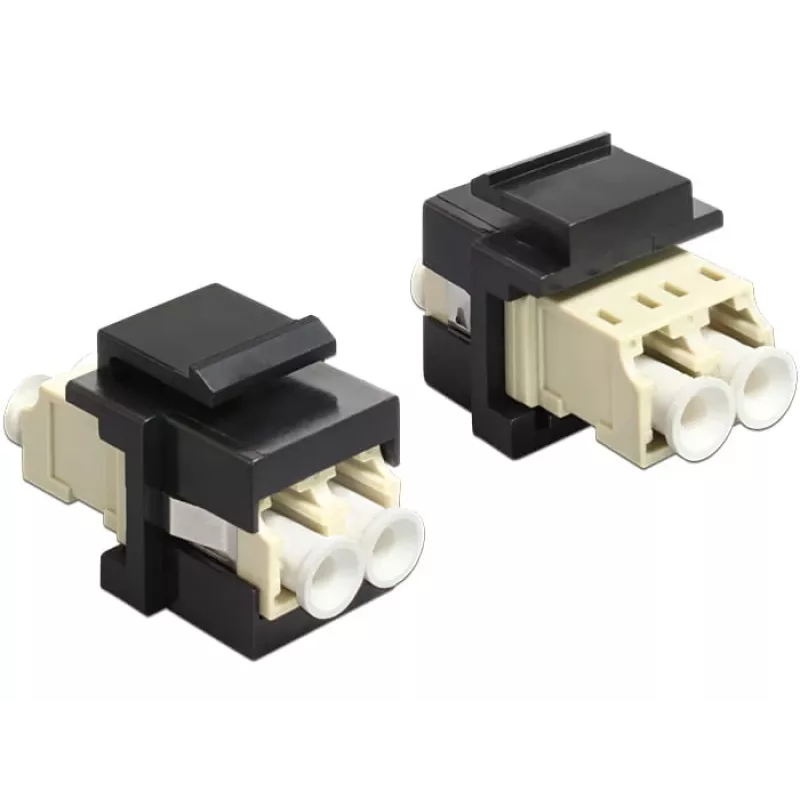

For best results, use compatible keystone panels or faceplates and keep LC connectors covered with dust caps until connection. Follow standard fiber handling and cleaning procedures to prevent signal loss.
