Keystone-module DeLOCK 86352

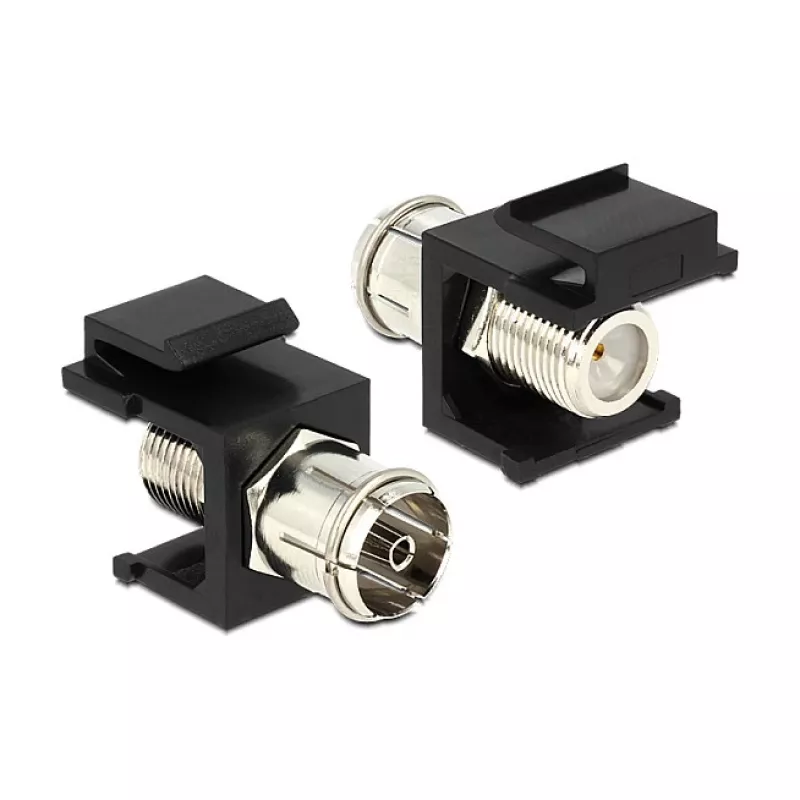

The DeLOCK 86352 Keystone Module provides a compact interface for connecting coaxial antenna cables with F-connector and IEC connector. Designed to fit standard keystone openings, it allows snap-in mounting into keystone patch panels, face plates or surface-mount boxes. The module measures 27.8 mm wide, 16.3 mm deep and 22.3 mm high and is finished in black and silver.

Advantages

The module supports a direct connection between F and IEC coaxial cables without additional adapters, conserving space thanks to its compact keystone format. Its standardised dimensions ensure compatibility with common keystone panels and face plates, while the metal/plastic construction provides stable and reliable signal connection suitable for mounting in structured cabling installations.

Suitable for

• Connecting antenna or TV coaxial cables with F-connector to devices or outlets with IEC input
• Installation in keystone patch panels and wall plates
• Use in surface-mount boxes and small distribution enclosures

Key specifications

• Model: DeLOCK 86352
• Connectors: IEC and F
• Dimensions: 27.8 mm (W) × 16.3 mm (D) × 22.3 mm (H)
• Colour: Black, Silver
• Category: Cable interface and gender adapters

How to use

Insert the module into a compatible keystone opening until it snaps into place. Connect the F-connector coaxial cable by screwing it onto the F socket and attach the IEC cable or device to the IEC connector. Ensure connections are hand-tight and mounted in a stable plate or box to avoid strain on the connectors.

Recommendations

For best performance, install the module into keystone-compatible panels or face plates and avoid excessive bending of coaxial cables near the connector. Check that the connectors are compatible with the cable types used and tighten connections securely but without over-torquing.
