Keystone-module DeLOCK 86742

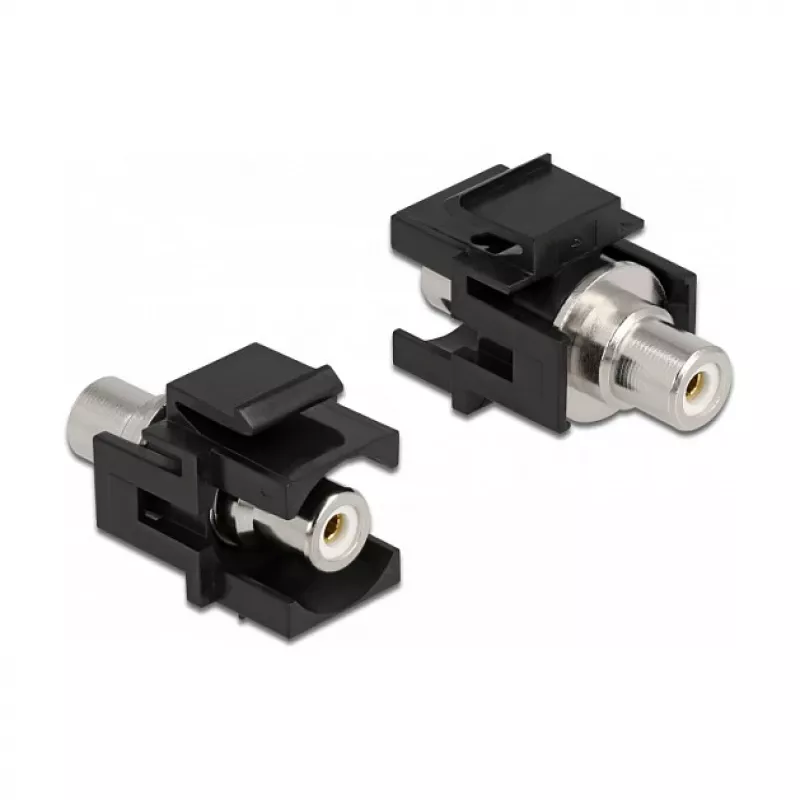

The DeLOCK 86742 keystone module is a compact, flat module in black designed to provide an RCA connection for audio and video applications. With standardised keystone dimensions it fits snap-in into keystone patch panels, face plates or surface-mount boxes and is sold individually.

Advantages

The module offers a space-saving flat design and standard keystone sizing for easy installation. It provides a female RCA connector for extending or terminating stereo and AV cables and is compatible with common keystone mounting systems.

Suitable for

• Extending or repairing stereo RCA cables
• Audio and composite video connections in patch panels
• Installation into keystone faceplates or surface-mount boxes

Key specifications

• Brand: DELOCK
• Model / MPN: 86742
• EAN: 4043619867424
• Connector: RCA (female)
• Colour: Black
• Width: 18 mm
• Depth: 33.2 mm
• Height: 22.3 mm
• Sold: single unit

How to use

Insert the module into a compatible keystone opening until it snaps into place. Connect RCA plugs from cables or devices to the module’s RCA connector to extend or terminate audio/video lines. Ensure connectors are fully seated to maintain reliable signal transmission.

Recommendations

Use the module in keystone-compatible panels or faceplates and avoid excessive force when inserting or removing RCA plugs. For optimal signal quality, use good-condition RCA cables and ensure firm mechanical connections.
