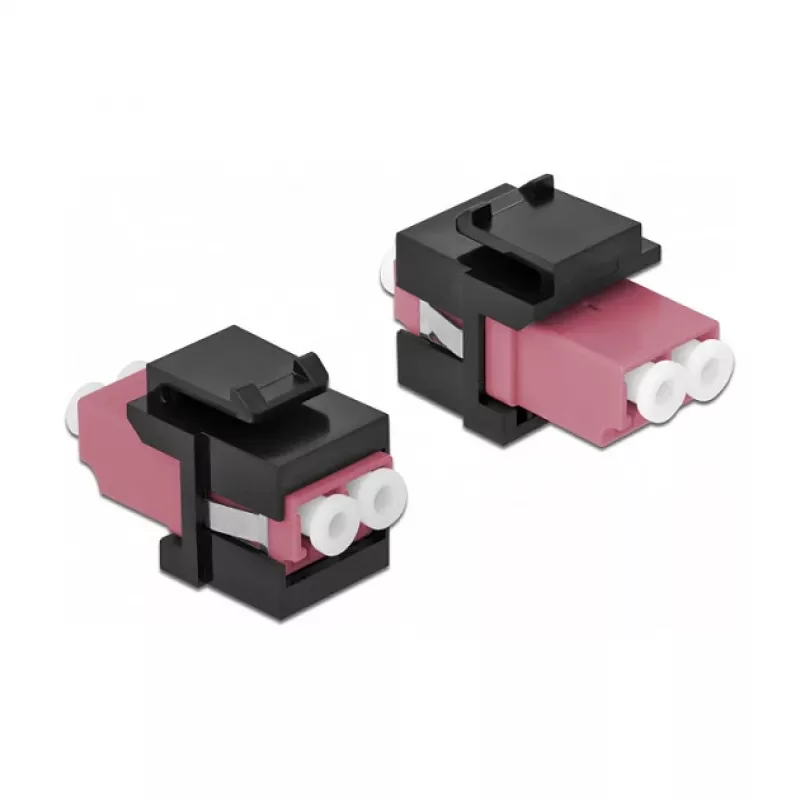

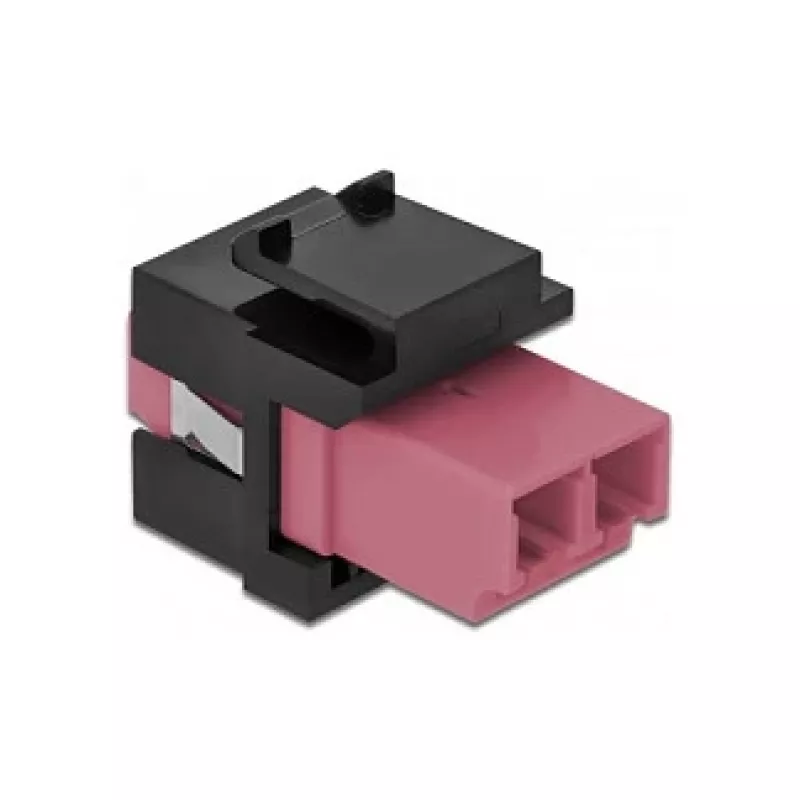

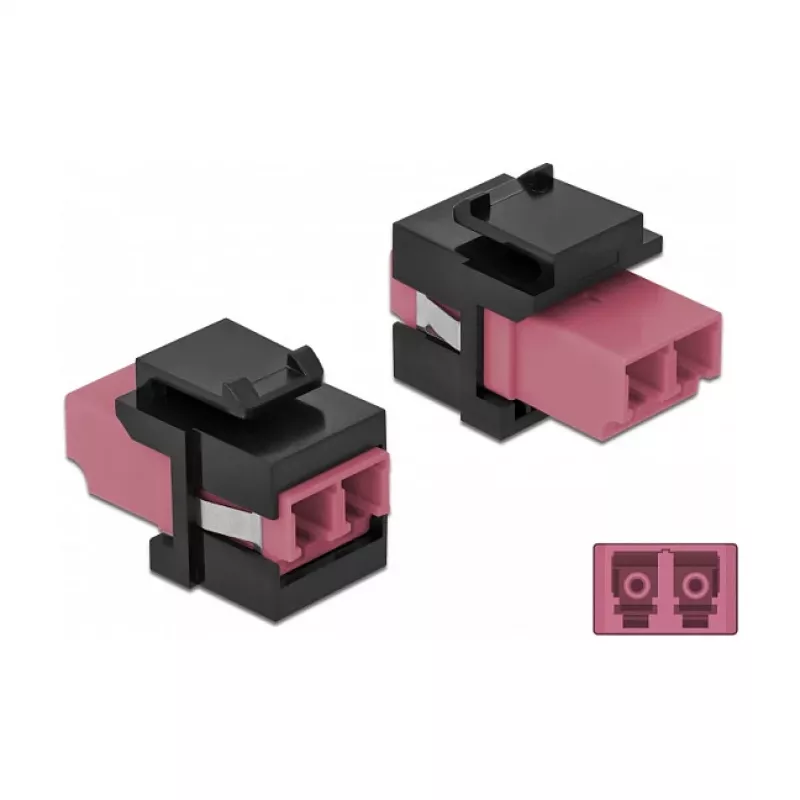

Keystone-module LC duplex bus naar LC duplex bus DeLOCK

The DeLOCK Keystone Module LC Duplex female to LC Duplex female is a compact fiber optic adapter designed for quick, snap-in integration into keystone-compatible panels, faceplates or surface-mount boxes. Its flat construction and black-violet design offer a low-profile connection point for LC Duplex fiber links. Manufactured in Germany, the module provides a standardised form factor for straightforward installation and cable extension in structured cabling environments.

Advantages

The module provides a reliable LC Duplex female-to-female connection in a compact keystone format, enabling easy extension or reconfiguration of fiber runs. Its standardised dimensions permit tool-free snap-in mounting into keystone patch panels, face plates or surface-mount boxes. The flat, low-profile construction reduces space requirements in dense installations, while the black and violet colouring helps with visual identification of the connection.

Suitable for

• Extending LC Duplex fiber optic cables
• Keystone patch panels and rack-mounted faceplates
• Surface-mount boxes and wall plates
• Structured cabling in offices, data closets and telecom rooms

Key specifications

• Connector: LC Duplex female to LC Duplex female
• Dimensions (W x D x H): 16.5 mm x 29.2 mm x 21.9 mm
• Design: flat keystone module, black and violet
• Brand: DELOCK
• Manufacturer part number (MPN): 86721
• EAN: 4043619867219
• Made in: Germany

How to use

Insert the module into a compatible keystone opening until it snaps into place. Connect LC Duplex fiber connectors into both LC female ports to join or extend fiber runs. For removal, press the release tabs on the keystone frame or housing and pull the module out. Ensure fiber connectors are clean and protected during installation to maintain signal quality.

Recommendations

Use LC-compatible patch cords and clean connectors before mating. Avoid excessive bending or tension on fiber cables near the module and secure cables to prevent strain. Install in keystone-compliant panels or faceplates to ensure proper retention and alignment.
