Keystone-module SC simplex bus naar SC simplex bus DeLOCK 86811

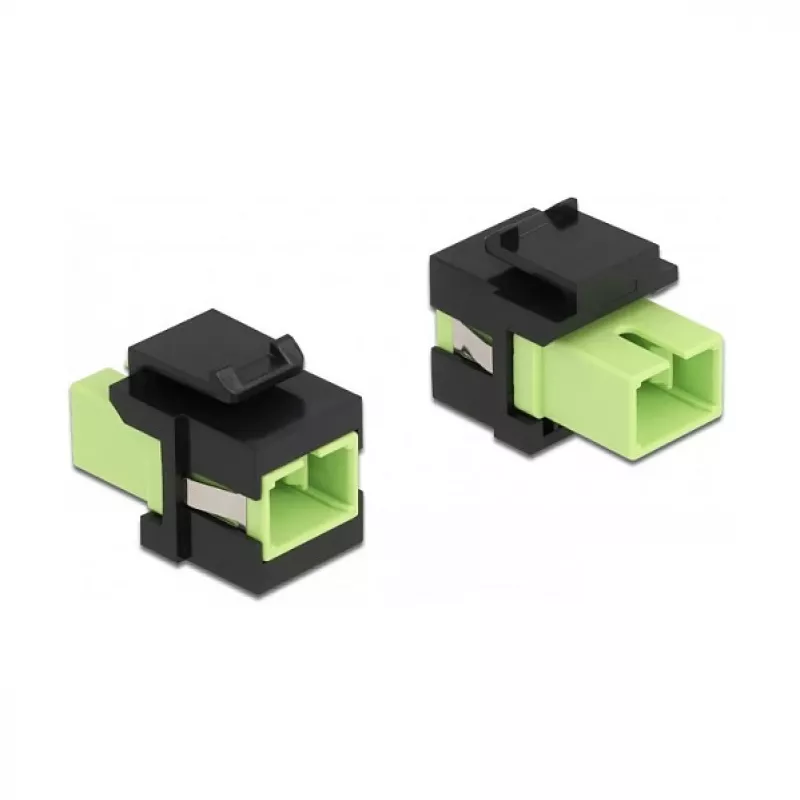

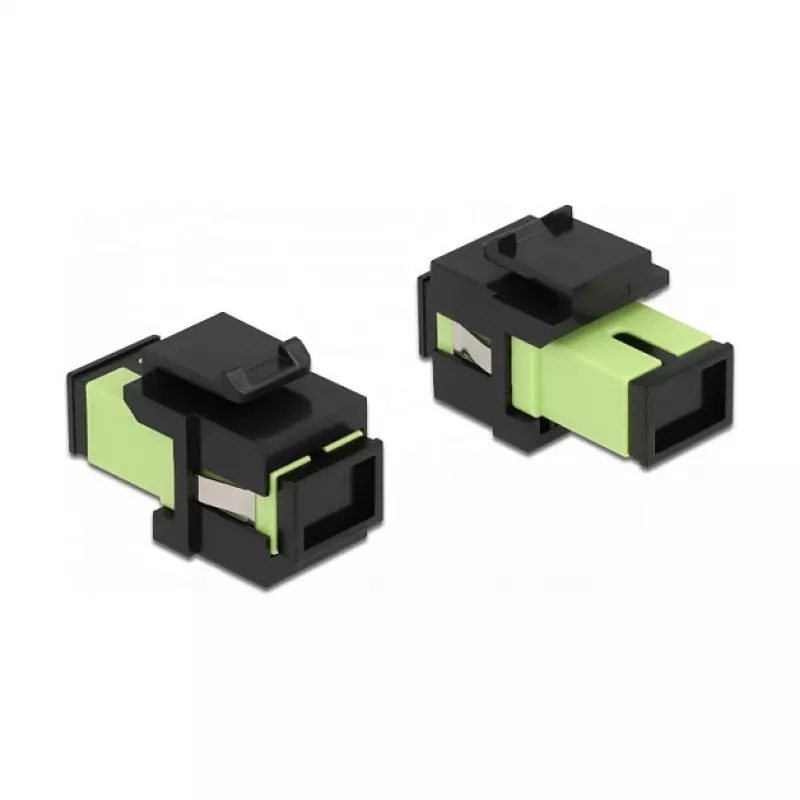

The DeLOCK Keystone Module SC Simplex female to SC Simplex female (model 86811) is a compact fiber optic adapter designed to extend SC simplex fiber connections. It has standardised keystone dimensions for quick snap-in installation into keystone patch panels, face plates or surface-mount boxes. The module features a flat construction with a lime green and black design and is supplied as a single piece per pack.

Advantages

This keystone module provides a standardised footprint for easy installation and replacement in common keystone housings. The SC simplex female-to-female interface allows straightforward extension or coupling of SC simplex fiber cables without additional tooling. Its compact, flat construction reduces space requirements in patch panels and face plates while the coloured design helps with visual identification.

Suitable for

• Extending SC simplex fiber optic connections
• Installation in keystone patch panels
• Mounting in face plates and surface-mount boxes
• Small network or telecommunications projects requiring individual keystone inserts

Key specifications

• Connector type: SC simplex female to SC simplex female
• Dimensions (W × D × H): 16.5 mm × 27.4 mm × 21.9 mm
• Design: flat keystone module, lime green and black
• Pack contents: 1 piece
• Brand: DELOCK, MPN: 86811, EAN: 4043619868117

How to use

Insert the module into a compatible keystone opening until it snaps into place. Connect SC simplex fiber cables to each SC female port, ensuring alignment and clean connectors to maintain signal quality. To remove, depress the retention tabs and pull the module out of the keystone housing.

Recommendations

Use clean, undamaged SC connectors and follow standard fiber handling practices: avoid bending the fiber beyond its minimum bend radius, keep connector endfaces clean with appropriate cleaning tools, and secure cables to prevent strain on the module.
