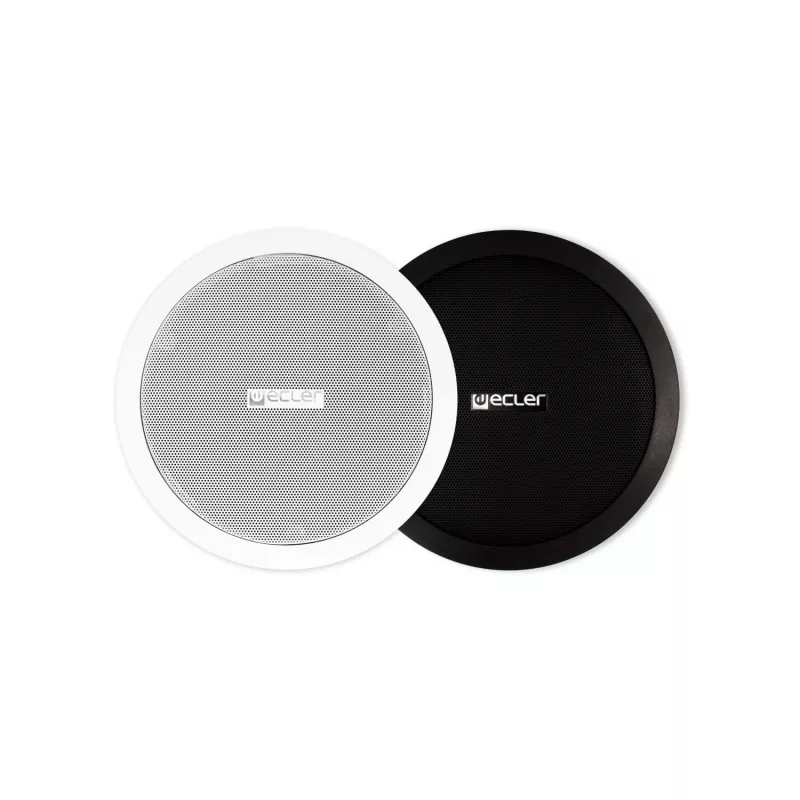

Kindermann Ecler IC3 plafondluidspreker zwart

The Kindermann Ecler IC3 is a high-performance 2-way coaxial ceiling speaker designed for professional audio installations. With a compact 3-inch woofer and a 0.5-inch silk dome tweeter, it delivers clear and balanced sound for background music and paging applications. The speaker features a magnetic steel grille and an ABS plastic enclosure, ensuring durability and easy installation. Its 120° conical dispersion provides wide coverage, making it ideal for commercial spaces.

Advantages

Compact design with high-quality sound reproduction; easy ceiling mount with 105 mm cutout; magnetic grille for quick installation; reliable spring terminals for secure connections.

Suitable for

• Background music in retail stores, restaurants, and offices
• Public address and paging systems
• Hotels, conference rooms, and lobbies

Key specifications

• Speaker type: 2-way coaxial
• Woofer: 3 inches (76 mm)
• Tweeter: 0.5 inches (13 mm) silk dome
• RMS power: 10 W
• Program power: 20 W
• Peak power: 40 W
• Impedance: 8 Ohms
• Frequency response: 120 Hz - 20 kHz (-10 dB)
• Sensitivity: 85 dB SPL (1W/1m)
• Dispersion: 120° conical
• Cutout diameter: 105 mm
• Mounting depth: 70 mm
• Overall diameter: 120 mm
• Colour: Black

Recommendations

For optimal performance, pair with a suitable amplifier rated for 8 Ohm loads. Ensure proper ceiling support for secure mounting.
