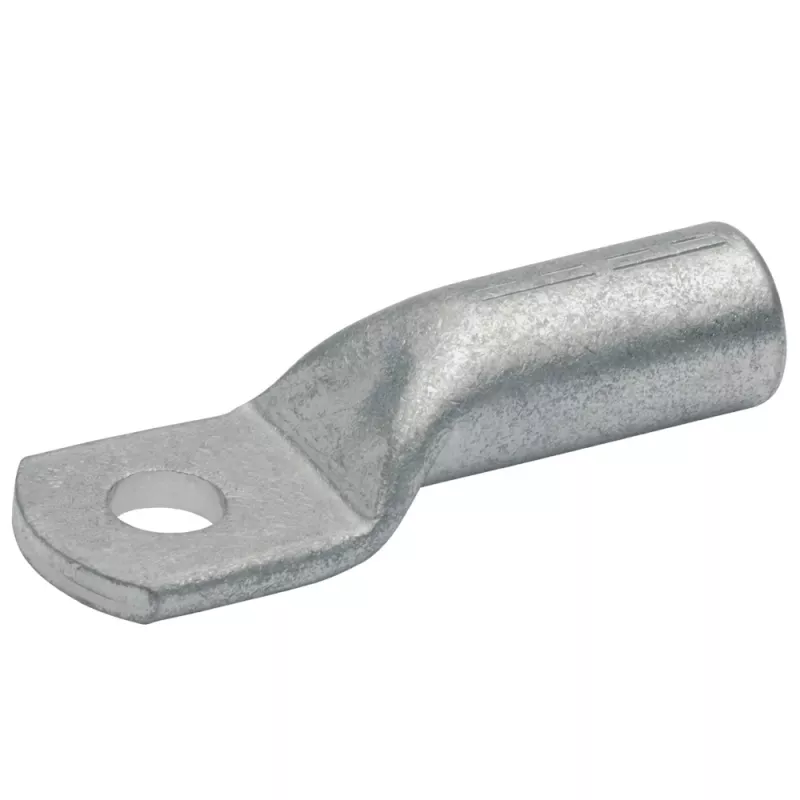

Klauke 102R6 buiskabelschoen, vertind koper, 10 mm², M6-boutgat, grijs

The Klauke 102R6 is a high-quality tubular cable lug designed for reliable and durable electrical connections. Manufactured from electrolytic copper (E-Cu) with a tinned surface, this lug ensures excellent conductivity and corrosion resistance. It is suitable for copper conductors with a cross-section of 10 mm² and features a bolt hole diameter of 6.4 mm for M6 bolts. The lug includes an inspection hole for easy verification of proper crimping. Conforms to DIN 46235 standard.

Advantages

Electrolytic copper material provides superior electrical conductivity. Tinned plating offers protection against oxidation and corrosion. Inspection hole allows visual confirmation of correct conductor insertion. Designed for long-term reliability in demanding environments.

Suitable for

• Electrical installations and power distribution
• Industrial control panels and switchgear
• Automotive and marine electrical systems
• Renewable energy systems such as solar and wind

Key specifications

• Product Type: Tubular Cable Lug
• Material: Electrolytic Copper (E-Cu), Tinned
• Cable Cross-section: 10 mm²
• Bolt Hole Diameter: 6.4 mm (for M6 bolts)
• Internal Barrel Diameter: 4.5 mm
• Palm Width: 10 mm
• Total Length: 31 mm
• Barrel Length: 15 mm
• Connection Type: Crimp
• Standard: DIN 46235
• Operating Temperature: -55°C to +150°C
• Voltage Rating: 1000 V
• Colour: Metallic Grey

Recommendations

For optimal performance, use with appropriate crimping tools and ensure correct conductor insertion. Verify crimp quality through the inspection hole. Suitable for use with copper conductors only.
