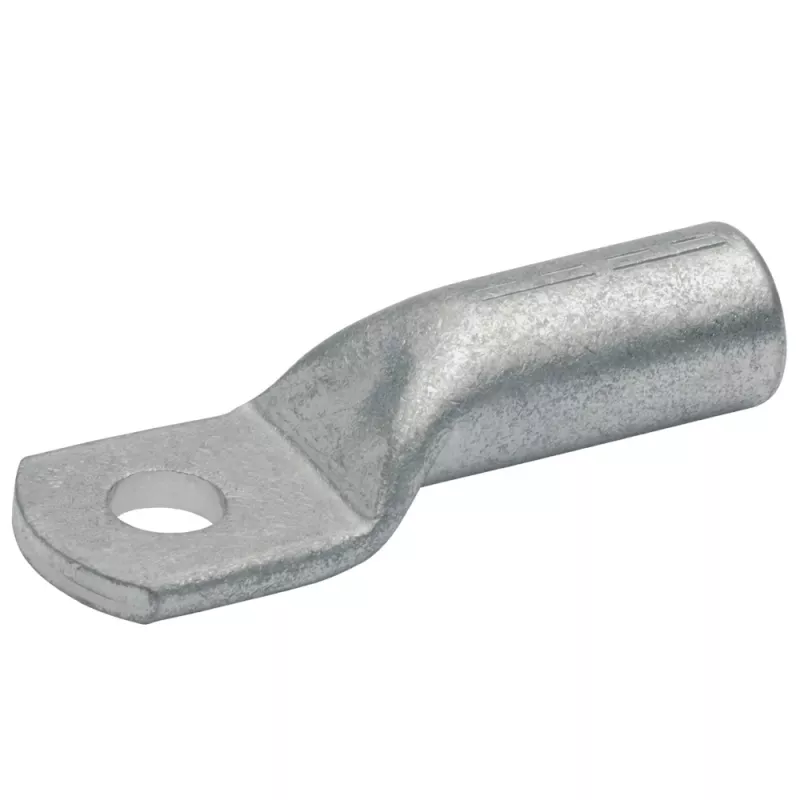

Klauke 105R8 buiskabelschoen, vertind koper, 35 mm², M8-boutgat, grijs

The Klauke 105R8 is a high-quality tubular cable lug designed for reliable and durable connections in electrical installations. Manufactured from electrolytic copper (E-Cu) with a tin-plated surface, it ensures excellent conductivity and corrosion resistance. This cable lug is suitable for stranded copper conductors with a cross-section of 35 mm² and features an M8 bolt hole (8.2 mm diameter) for secure fastening. It complies with DIN 46235 standards and is ideal for use in industrial and commercial applications.

Advantages

Tin-plated surface provides superior corrosion protection and long-term reliability. Funnel entry design simplifies conductor insertion, reducing installation time. Inspection hole allows for visual verification of proper conductor insertion. RoHS and halogen-free compliance ensures environmental safety.

Suitable for

• Power distribution systems
• Control cabinets
• Industrial machinery
• Electrical panel wiring

Key specifications

• Product Type: Tubular Cable Lug
• Material: Electrolytic Copper (E-Cu), tin-plated
• Conductor Cross-Section: 35 mm²
• Bolt Hole Diameter: 8.2 mm (M8)
• Connection Method: Crimp
• Standard: DIN 46235
• Temperature Range: -55°C to +150°C
• Voltage Rating: Up to 1000 V
• Colour: Metallic Grey
• Halogen-Free: Yes

Recommendations

Use with appropriate crimping tool for optimal connection. Ensure conductor is fully inserted into the barrel before crimping. For best results, follow manufacturer's installation guidelines.
