Klauke 12R16 buiskabelschoen, 240 mm², M16, vertind, recht, ongeïsoleerd

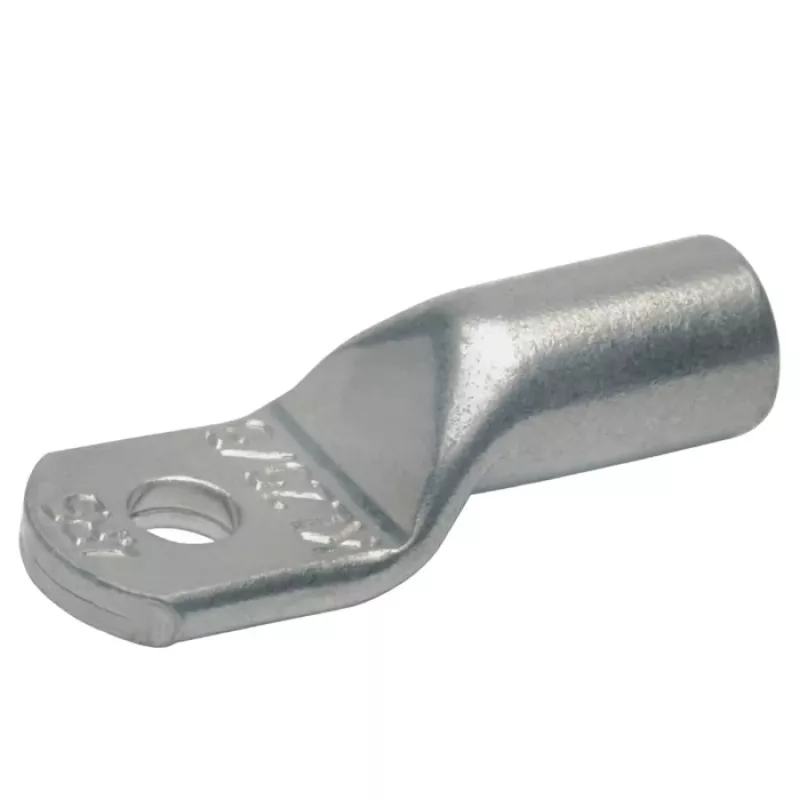

The Klauke 12R16 is a high-quality tubular ring lug designed for reliable and durable electrical connections. Manufactured from electrolytic copper (E-Cu) with a tin-plated surface, it offers excellent corrosion protection and conductivity. This uninsulated straight lug is suitable for copper conductors with a cross-section of 240 mm² and features a bolt hole diameter of M16. It complies with DIN 46235 standard and is ideal for hexagonal crimping, ensuring a secure and long-lasting connection.

Advantages

Tin-plated surface provides superior corrosion resistance. Annealed manufacturing process ensures flexibility and ease of installation. Straight design allows for straightforward alignment in tight spaces. Suitable for high-voltage applications up to 1000 V and a wide temperature range from -55°C to +150°C.

Suitable for

• Power distribution and electrical installations
• Industrial machinery and control panels
• Automotive and renewable energy systems
• Any application requiring reliable copper conductor termination

Key specifications

• Conductor Cross-Section: 240 mm²
• Bolt Hole Diameter: M16
• Lug Type: Tubular Ring Lug
• Material: Electrolytic Copper (E-Cu)
• Surface Treatment: Tin-Plated
• Design: Straight
• Insulation: Uninsulated
• Standard Compliance: DIN 46235
• Application: For copper conductors
• Crimping Method: Hexagonal crimping
• Temperature Range: -55°C to +150°C
• Voltage Rating: Up to 1000 V
• Number of Mounting Holes: 1
• Connection Angle: 180°

Recommendations

For optimal performance, use with appropriate hexagonal crimping tools and ensure proper conductor preparation. Always follow manufacturer guidelines for installation and safety.
