KLAUKE perskabelschoen DIN 46235 70mm² M8 vertind koper

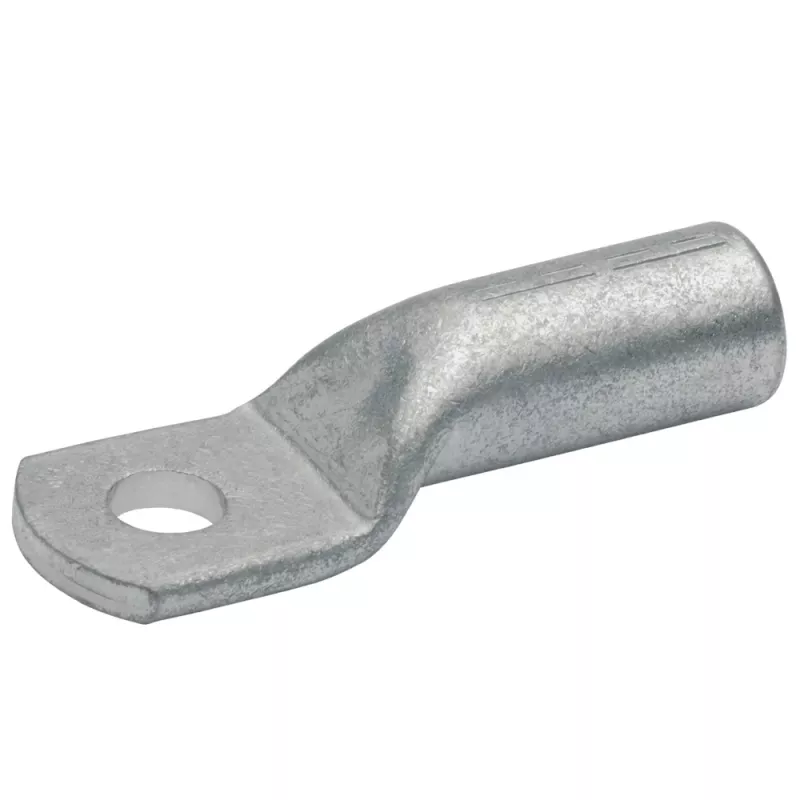

The KLAUKE Presskabelschuh n. DIN 70qmm M8 is a high-quality compression cable lug designed for reliable and durable electrical connections. Manufactured from electrolytic copper (E-Cu) with a tin-plated surface, this lug ensures excellent conductivity and corrosion resistance. It complies with DIN 46235 standard and is suitable for copper conductors up to 1000 V. The tubular barrel features an inspection hole for verifying proper crimping, and the lug accepts 2-3 crimps depending on the tool used. Ideal for industrial and commercial applications where secure, long-lasting terminations are required.

Advantages

Tin-plated copper construction provides superior corrosion resistance and long service life. Inspection hole allows visual confirmation of correct conductor insertion. Wide operating temperature range from -40°C to +120°C ensures performance in extreme conditions. RoHS and halogen-free compliant for environmental safety.

Suitable for

• Crimping onto copper cables with cross-section 70 mm²
• Electrical installations in switchgear, control panels, and distribution systems
• Industrial machinery and equipment wiring
• Power supply connections up to 1000 V

Key specifications

• Conductor cross-section: 70 mm²
• Bolt size: M8 (hole diameter 8.4 mm)
• Material: Electrolytic copper, tin-plated
• Standard: DIN 46235
• Barrel inner diameter: 11.5 mm
• Barrel outer diameter: 15.5 mm
• Palm width: 22 mm
• Total length: 65 mm
• Operating temperature: -40°C to +120°C
• Voltage rating: Up to 1000 V
• Number of crimps: 2-3
• RoHS compliant: Yes
• Halogen-free: Yes

Recommendations

For optimal performance, use with a suitable crimping tool recommended by KLAUKE. Ensure the conductor is fully inserted into the barrel before crimping. Verify crimp quality using the inspection hole.
