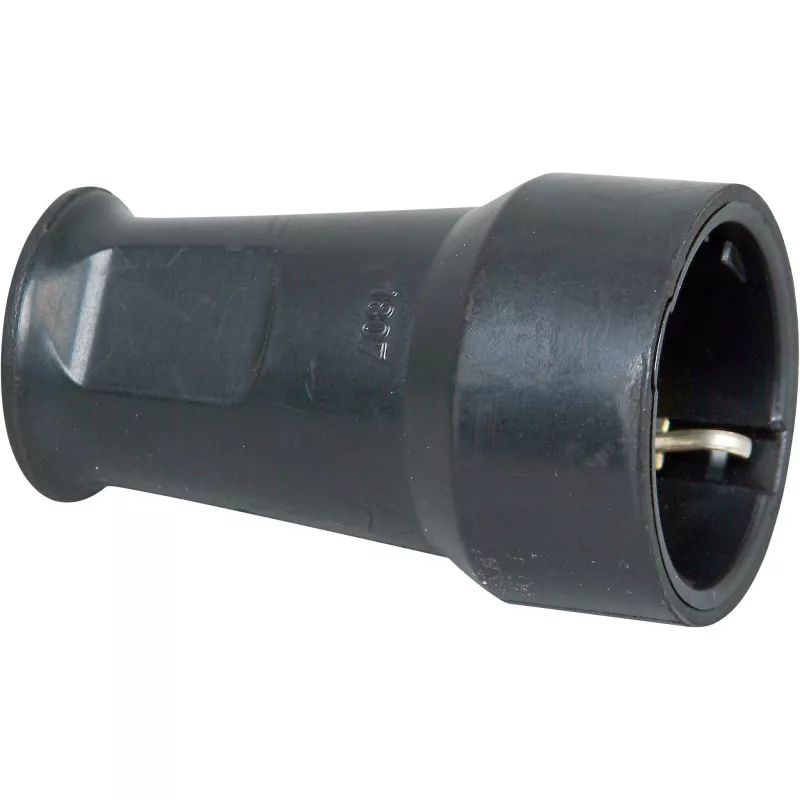

Kopp SEBS randaardecontactdoos, tot 3x1,5 mm², zwart

On a dimly lit construction site, a worker needs to extend power to a circular saw. The Kopp SEBS safety contact coupling, black, provides a secure, weather-resistant connection, ensuring the tool runs safely even with dust and occasional splashes. Its robust SEBS housing and IP44 rating make it a dependable choice for demanding environments.

Key specifications

• Connector type: Schutzkontakt (CEE 7/7) coupling
• Rated voltage: 250 V AC
• Rated current: 16 A
• Number of poles: 2-pole + earth
• Max. conductor cross-section: 1.5 mm²
• Connection method: Screw terminals
• Protection class: IP44
• Housing material: SEBS (styrene-ethylene-butylene-styrene)
• Colour: Black
• Cable entry: Straight, suitable for cable diameter 6–13 mm
• Operating temperature: -25 °C to +80 °C
• Standards: DIN VDE 0620-1

Why choose it

This coupling is built to last in harsh conditions. The SEBS material offers excellent UV and weather resistance, while the IP44 rating protects against splashing water and solid objects over 1 mm. Screw terminals ensure a reliable, vibration-resistant connection for conductors up to 1.5 mm², making it ideal for both indoor and protected outdoor use.

Ideal use cases

• Extending power cables on construction sites and workshops
• Connecting portable tools and equipment in outdoor areas
• Creating custom extension leads for gardening or DIY projects
• Use in caravans, boats, or other protected outdoor environments

Good to know

The coupling is compatible with standard CEE 7/7 plugs and sockets, ensuring broad usability across Europe. Its straight cable entry simplifies installation, and the black colour blends unobtrusively into most environments. For maximum safety, always ensure the cable is properly secured and the terminals are tightened to the recommended torque.
