Koud-/heetlaminator Olympia A 340 Combo

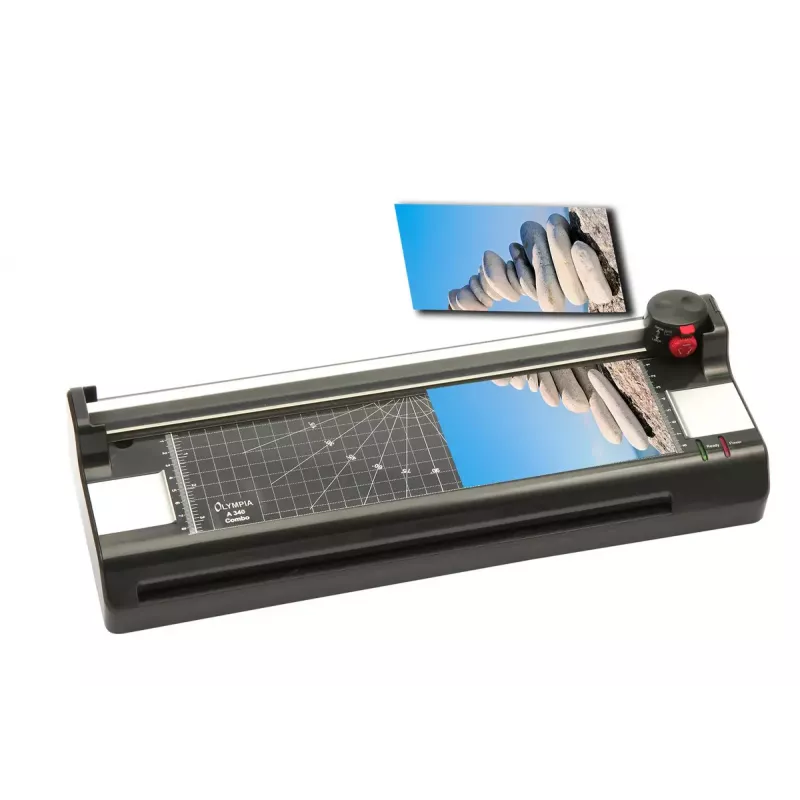

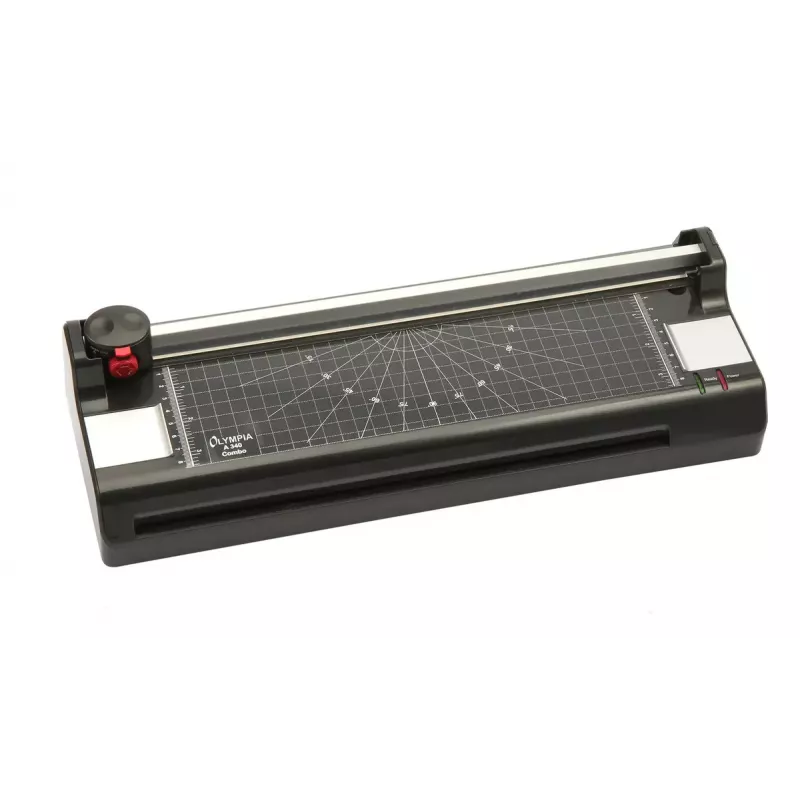

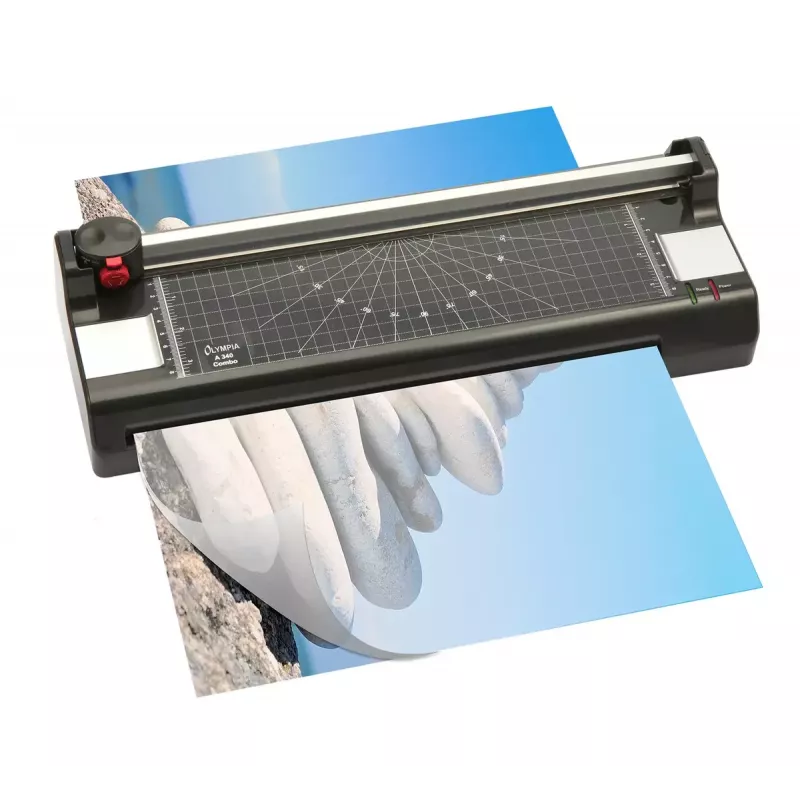

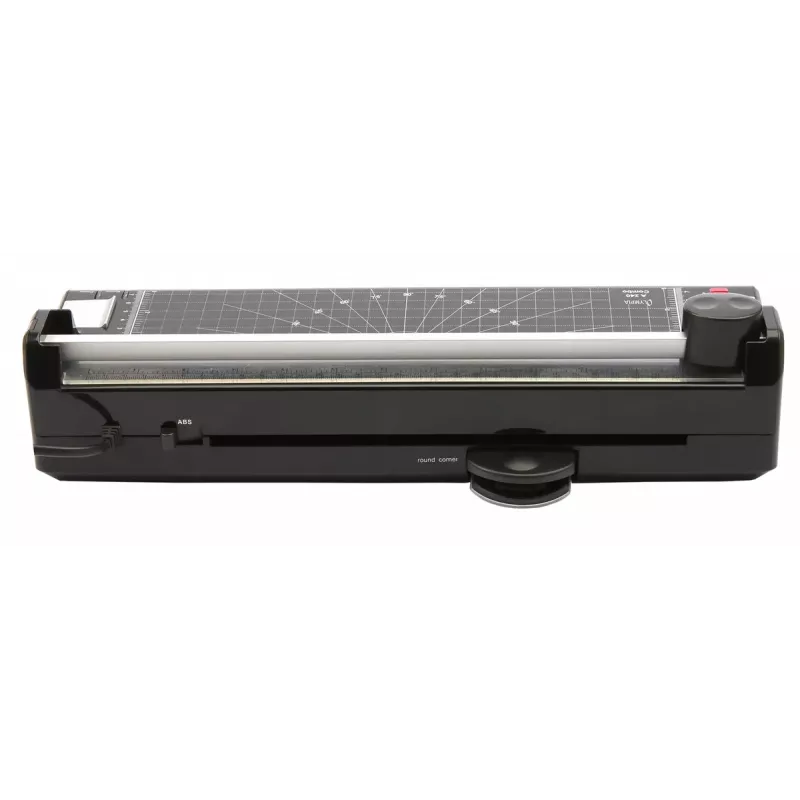

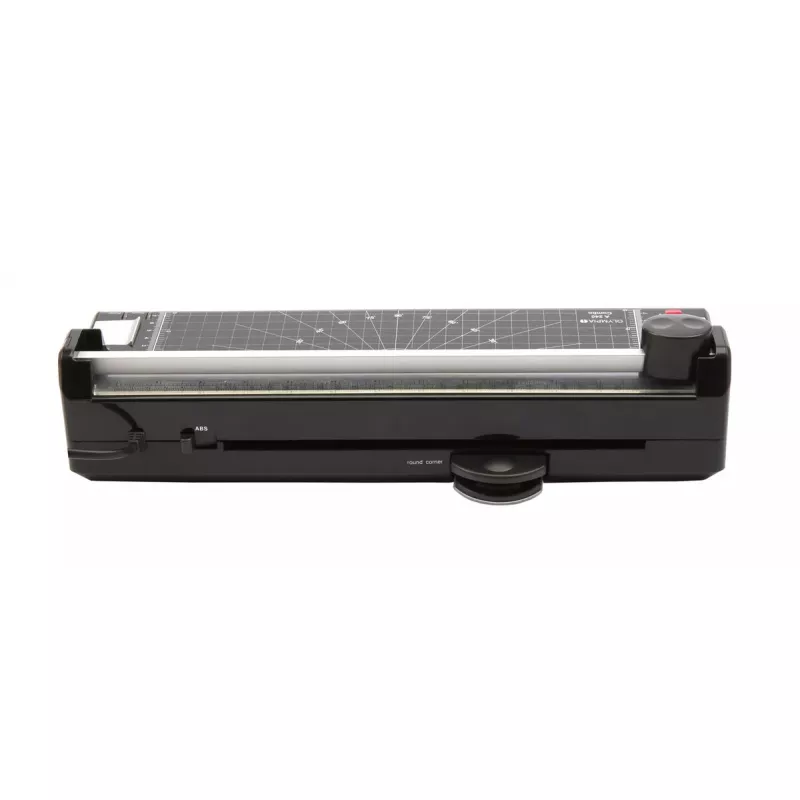

The Olympia A 340 Combo is a 3-in-1 cold/hot laminator with an integrated rotary trimmer and corner rounder. It supports a laminating width up to 330 mm (A3) and accepts pouches up to DIN A4 or A3 on the short side. The unit is compact (approx. 440 mm × 128 mm × 95 mm), weighs 1.8 kg and features a high-quality heating system with automatic overheat switch-off, jam release and LED indicators for power and ready status.

Advantages

The machine combines hot and cold lamination modes in one device and includes three selectable cutting styles (straight, wave and perforation) for simple finishing. With a warm-up time of about 4–6 minutes, a laminating speed of 250 mm/min and support for pouch thicknesses from 80 to 125 micron (max. 0.5 mm), it handles typical office laminating tasks while saving space thanks to its low 120 mm working height. Energy consumption is rated at 365 W.

Suitable for

• Laminating documents up to A3 width (330 mm)
• Finishing documents that require straight, wave or perforated cuts
• Protecting menus, ID cards, certificates, signs and promotional sheets

Key specifications

• Product: Cold/hot laminator Olympia A 340 Combo (MPN 3115, EAN 4030152031153)
• Laminating width: 330 mm (A3)
• Pouch size: up to DIN A4 / DIN A3 short side
• Pouch thickness: 80–125 micron (max. 0.5 mm)
• Laminating speed: 250 mm/min
• Power consumption: 365 W
• Cutting styles: straight cut, wave cut, perforation (3 sheets cutting capacity at 80 g/m²)
• Warm-up time: approx. 4–6 minutes
• Dimensions (W×D×H): approx. 440 × 128 × 95 mm
• Weight: 1.8 kg
• Indicators: LED for Power and Ready

How to use

Select hot or cold lamination mode depending on your pouch and media. Allow the laminator to warm up (approximately 4–6 minutes) until the Ready LED is lit. Insert the document into the appropriate pouch, align it and feed the sealed edge into the laminator first. For trimming, use the integrated rotary trimmer and choose one of the three cutting styles; for rounded corners use the corner rounder. If a jam occurs, use the unit's jam release feature and follow the manufacturer's safety instructions. Switch off the device after use; the unit has an automatic overheat switch-off for safety.

Recommendations

Use 80–125 micron pouches for best results and avoid laminating media thicker than 0.5 mm. For heat-sensitive documents, select cold lamination. Allow the laminator to reach operating temperature before use and do not force multiple thick sheets at once — cutting capacity is specified for 3 sheets at 80 g/m².
