KS TOOLS 12/24V master diagnose-test- en meetkabelset, 92-delig (150.0950)

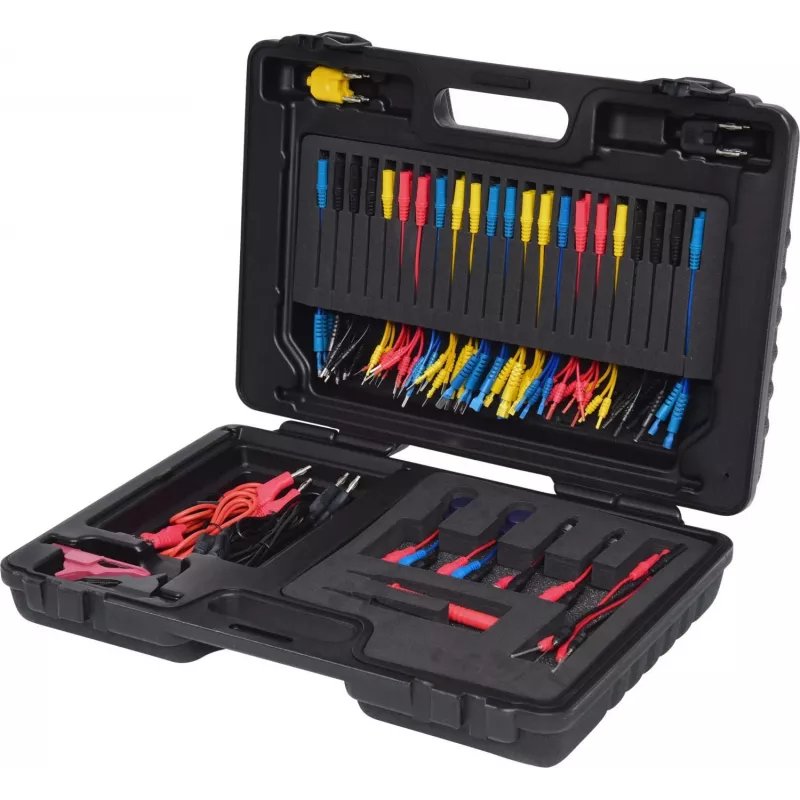

In a busy workshop, technicians often face the challenge of quickly and safely diagnosing electrical faults across a wide range of vehicles. The KS TOOLS 12/24V Master Diagnostic Test and Measurement Cable Set, 92-piece, equips professionals with everything needed to test circuits, measure signals, and simulate components in 12V and 24V automotive systems. This comprehensive kit includes test cables, adapters, test probes, fixed and variable resistors, LED test lights, airbag simulators, and crocodile clips, all organized in a robust high-impact plastic case. Connector pin diameters range from 0.7mm to 4.0mm, ensuring compatibility with most automotive connectors. Fully insulated connectors and flexible PVC/Silicone cable insulation guarantee safe handling during fault finding, signal measurement, and circuit testing. Suitable for engine management, ABS, airbag, sensors, and actuators, this set is a universal solution for any professional automotive electrician.

Key specifications

• Product type: Diagnostic test and measurement cable set
• Number of pieces: 92
• Voltage compatibility: 12V / 24V DC
• Connector pin diameter compatibility: 0.7mm to 4.0mm
• Connection type: 4mm banana plug and various automotive connectors
• Included components: Test cables, adapters, test probes, resistors, potentiometers, LED test lights, airbag simulators, crocodile clips
• Safety features: Fully insulated connectors and cables
• Storage: Robust plastic case made of high-impact plastic
• Cable insulation: Flexible PVC/Silicone
• Application area: Automotive electrical system diagnostics

Why choose it

This set stands out for its completeness and versatility. The inclusion of airbag simulators and variable resistors allows safe testing of sensitive systems without risk of damage. The wide range of probe types, including back-probing and piercing probes, enables access to hard-to-reach connectors. The robust case keeps all 92 pieces organized and protected, saving time and reducing the risk of lost components. Fully insulated connectors ensure user safety even in high-voltage 24V systems.

Ideal use cases

• Professional automotive workshops diagnosing engine management faults
• Testing ABS and airbag systems safely with simulators
• Measuring sensor and actuator signals in 12V and 24V vehicles
• Performing circuit continuity and resistance checks
• Mobile diagnostics for breakdown services and field technicians

Good to know

The set is designed for universal application across a wide range of vehicle makes and models. The LED test lights provide clear indication of circuit status, while the fixed and variable resistors allow simulation of sensor values for ECU testing. The case dimensions and weight are optimized for portability, making it easy to carry between workstations or vehicles. Always follow standard safety procedures when working with automotive electrical systems.
