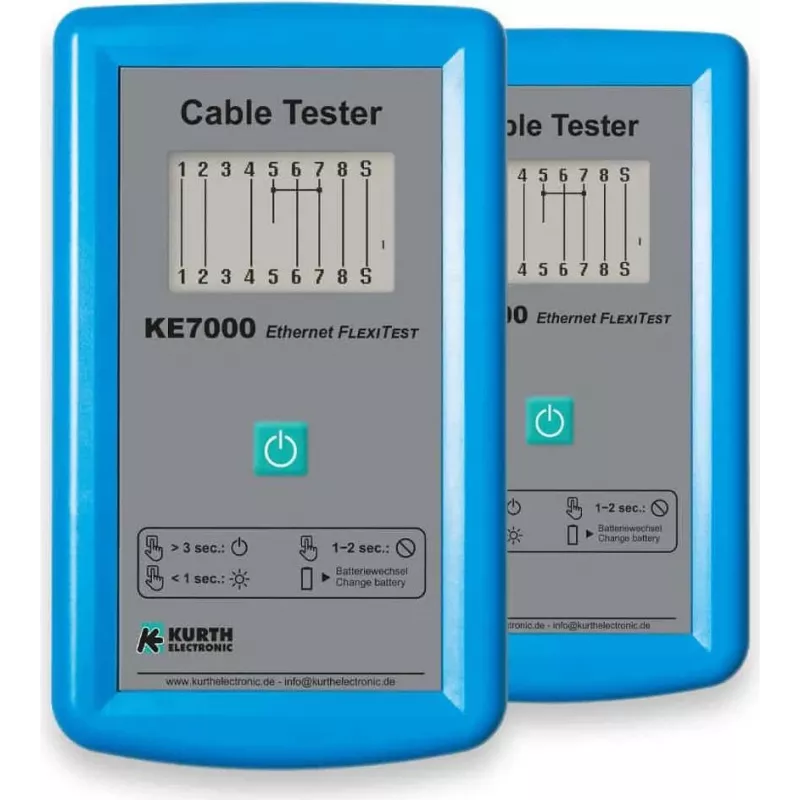

Kurth Electronic KE7000 UTP/STP kabeltester blauw

The Kurth Electronic KE7000 is a versatile multi-functional cable tester designed for professionals who need to quickly and accurately test RJ45 (UTP/STP), RJ11/12, coaxial, USB, and BNC cables. With its comprehensive fault detection capabilities and durable ABS housing, this tester is an essential tool for network installers and technicians.

Advantages

• Tests a wide range of cable types including RJ45, RJ11/12, Coax, USB, and BNC
• Per-pin LED mapping for precise fault location (open, short, crossed, split pairs, reverse polarity)
• Auto power off to conserve battery life
• Includes remote unit and multiple adapters for versatile testing
• Compact and lightweight design for easy portability

Suitable for

• Network technicians and installers
• IT professionals for cable verification and troubleshooting
• Telecommunications and data center maintenance

Key specifications

• Product Type: Multi-functional Cable Tester
• Supported Cable Types: RJ45 (UTP/STP), RJ11/12, Coaxial (F-connector), USB (Type A/B), BNC
• Test Functions: Continuity, Open, Short, Crossed, Split Pairs, Reverse Polarity
• Display: LED indicators for wire map and fault status
• Power Source: 9V Block Battery (PP3)
• Operating Voltage: 9 V
• Operating Temperature Range: 0 - 50 °C
• Maximum Cable Length: Up to 150 m (500 ft)
• Auto Power Off: Yes
• Housing Material: Durable ABS Plastic
• Dimensions (Main Unit): 160 x 95 x 35 mm
• Weight: 160 g
• Colour: Blue
• Certifications: CE Compliant

Recommendations

For comprehensive network cable testing, the Kurth Electronic KE7000 offers reliable performance and a wide range of supported connectors. Its intuitive LED mapping simplifies fault diagnosis, making it a valuable addition to any toolkit.
