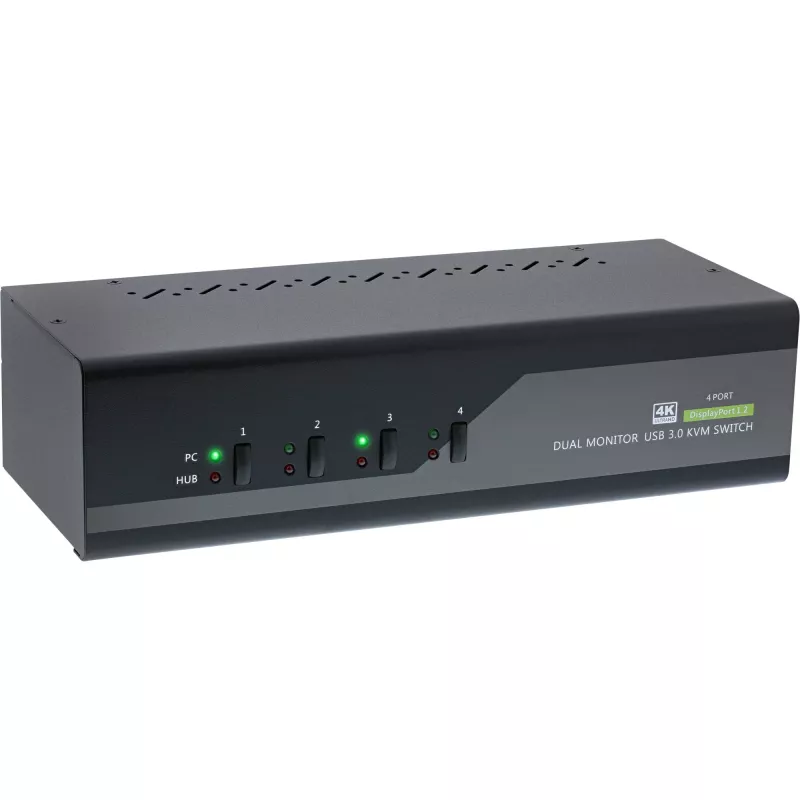

KVM Desktop Switch InLine 63654I 4-poorts dual-monitor DP 1.2 4K USB 3.0 audio

The InLine KVM Desktop Switch was specially developed for the use of two monitors (2x DisplayPort) on four multimedia computers. With the InLine KVM Desktop Switch you can completely control four PCs with only one USB keyboard, mouse and two monitors. This dual monitor DP KVM switch supports resolutions up to 3840x2160 (4K) at 60Hz, for maximum comfort in adapting to your display needs.
With TTU emulation technology integrated into a new ASIC chip, the dual monitor DP KVM switch is able to offer complete versatility in meeting the functional requirements of all types of modern keyboards and mice. It features a 2 channel stereo sound for full sound functions. Its advanced audio & microphone switching function also gives you an uninterrupted multimedia experience during KVM operation (e.g. you can listen to music from one PC while operating another). Multi-platform support for PC and Mac is also available.

4-way KVM switch
Four computers on one console (consisting of 2x DisplayPort Monitor, 1x USB mouse and 1x USB keyboard)
Two additional USB 3.0 (USB 3.2 Gen 1) Type A ports for peripheral devices
audio support for microphone and speakers
Maximum video resolution: 3840x2160 (60Hz) per monitor

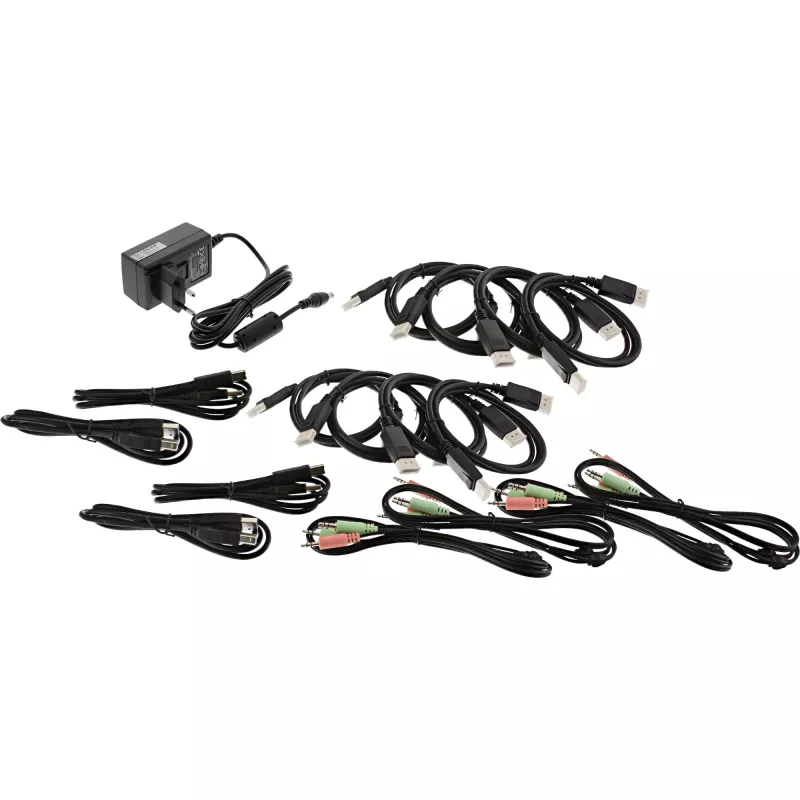

Content of delivery:
1x InLine KVM Desktop Switch, Dual Monitor, DisplayPort 1.2
4x KVM cable set
1x Plug power supply DC 12V
1x Operating Instructions

Please note:
The InLine KVM Switches are designed for office and home office applications as well as for monitoring and controlling multiple computers from one workstation. However, the KVM Switches are not suitable for gaming accessories such as mice and keyboards with programmable special keys, nor are gaming monitors with high frequencies of 120 Hz or more supported. The hot key function for the keyboard only works on the designated console USB port, connected via the USB hub ports, hot key control is not possible.

InLine KVM Desktop Switch, 4-port, Dual-Monitor DP 1.2, 4K, USB 3.0, Audio. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Grey. Power source: DC, Input voltage: 12 V. Width: 100 mm, Depth: 255 mm, Height: 65 mm

How to use

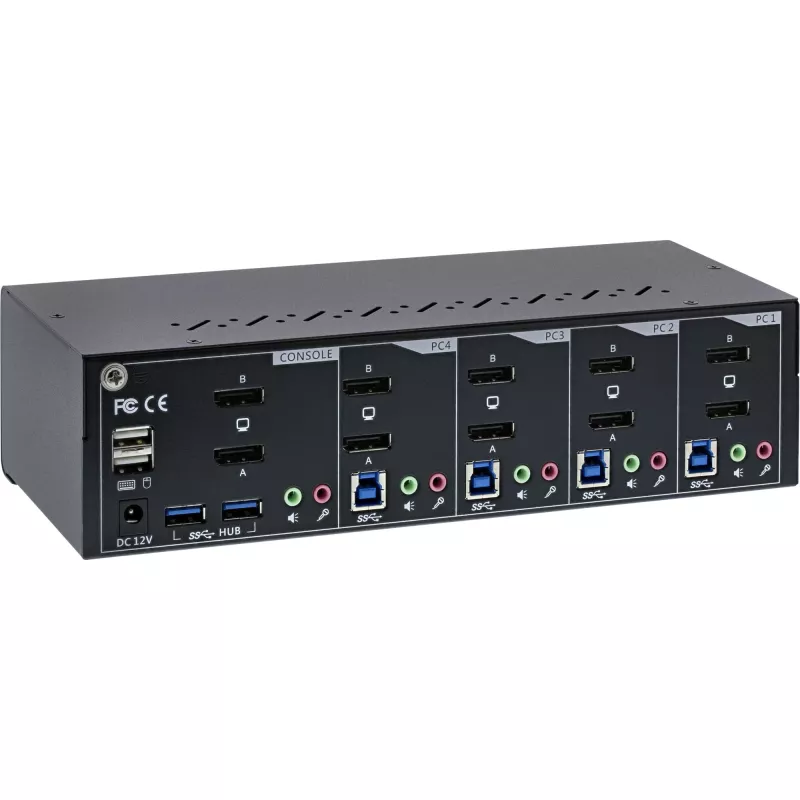

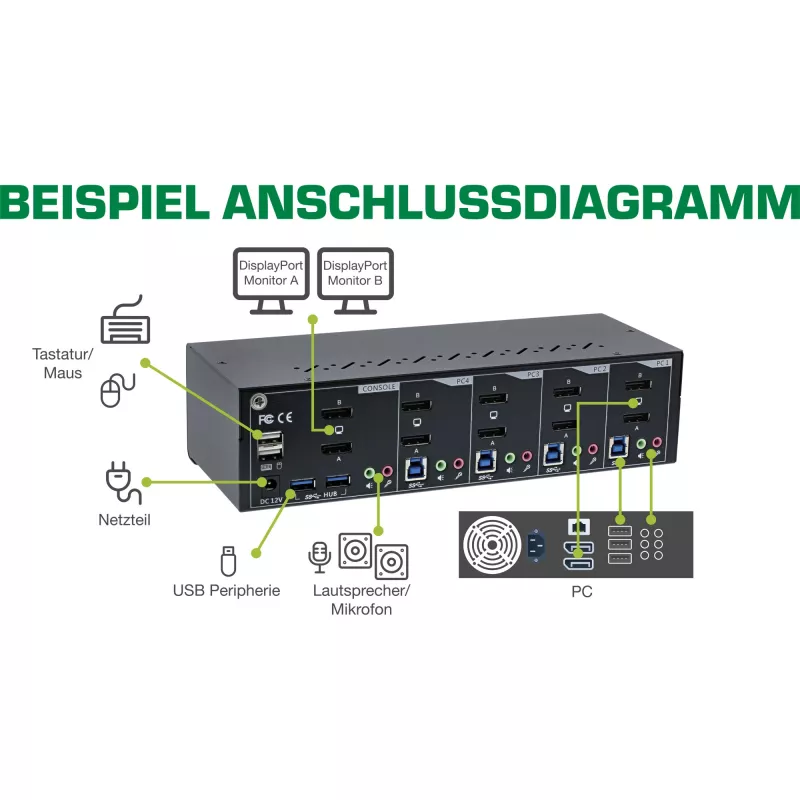

Connect two DisplayPort monitors, a USB keyboard and a USB mouse to the console ports of the KVM switch. Use the supplied KVM cable sets to connect each of the four computers to the corresponding input ports on the switch. Plug in the supplied 12V DC power adapter and switch on power. Use the device’s switching controls or keyboard hotkey from the designated console USB port to change the active computer; audio and microphone signals switch along with the selected computer.

Recommendations

Designed for office and home office environments and for monitoring/control workstations. Not recommended for gaming peripherals with programmable special keys or for gaming monitors with refresh rates of 120 Hz or higher. Keyboard hotkey functions work only from the designated console USB port (not via hub ports).
