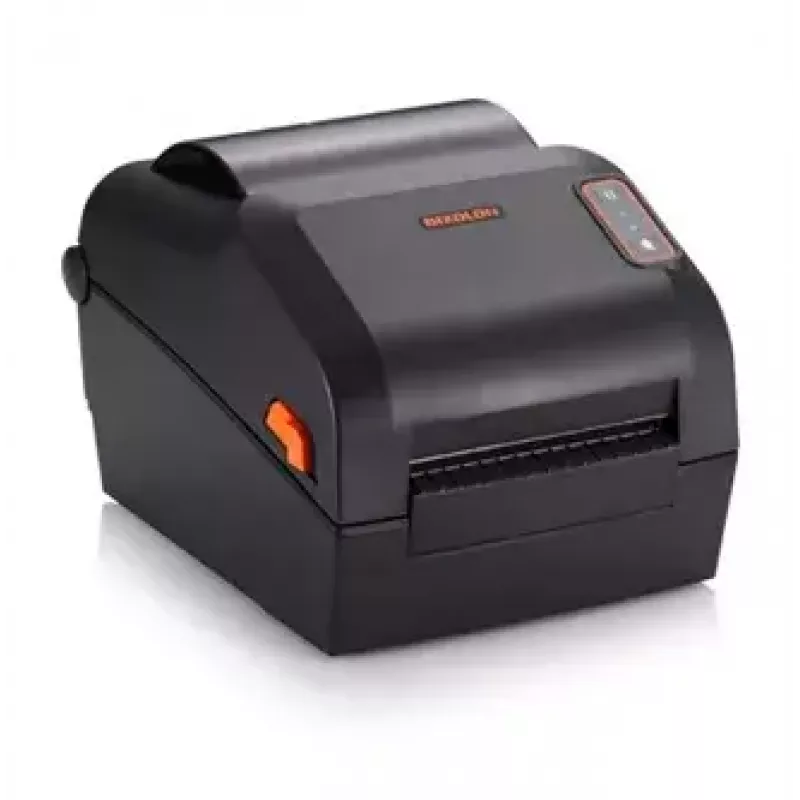

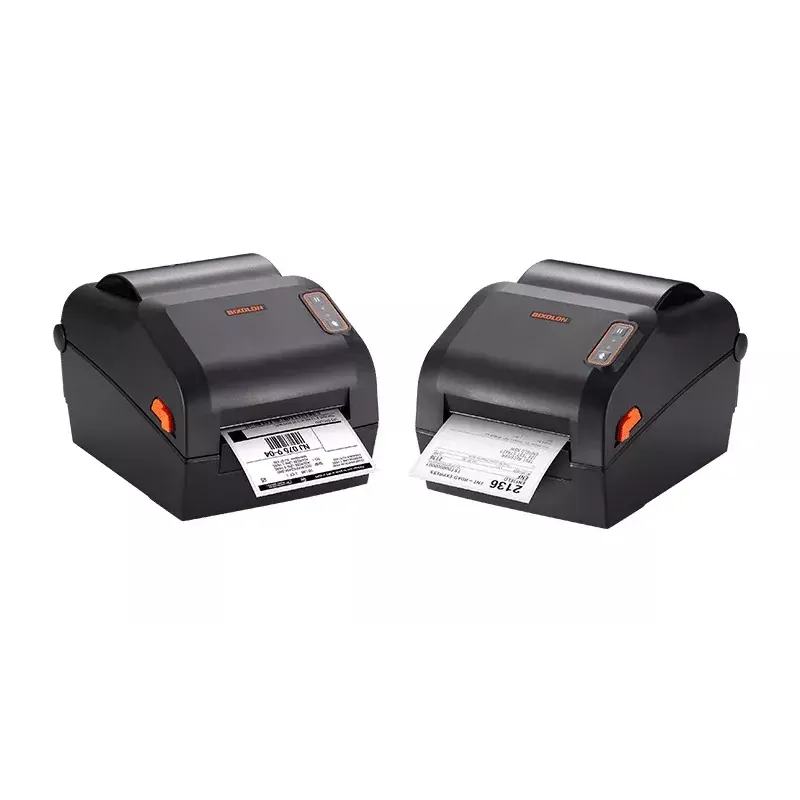

Labelprinter Bixolon XD5-40d

The Bixolon XD5-40d is a compact 4-inch (118 mm) direct thermal desktop label and barcode printer designed for mid-level industrial and commercial labelling tasks. With a clamshell design and enhanced memory (up to 256 MB SDRAM and 256 MB Flash), the XD5-40d delivers print speeds up to 178 mm/sec (7 ips) at a 203 x 203 dpi resolution. It supports multiple media types and is available with optional accessories such as a peeler, auto cutter and external paper supply. Standard connectivity includes dual USB 2.0 and USB Host, with optional interfaces including Ethernet, serial, Dual-WLAN and Dual-Bluetooth. The printer is compatible with common programming languages (SLCS™, BPL-Z™, BPL-E™) and is supported by BIXOLON software tools such as XPM™ and Label Artist-II™, as well as third-party solutions like BarTender®.

Advantages

The XD5-40d offers a balance of speed, memory and compact design suitable for continuous label production. Its Smart Media Detection™ automatically recognizes Gap, Black Mark, Continuous and Notch media formats to reduce setup time. Optional hardware modules (peeler, cutter, external roll holder) and an optional LCD display increase flexibility for different workflows. Twin Function™ via the USB Host port allows duplication of printer settings and data across devices, simplifying deployment in multi-printer environments. The printer includes industry-standard firmware and protocol support, enabling integration with existing systems and label design software.

Suitable for

• Manufacturing line label printing
• Transport and logistics shipping labels
• Retail price and product labelling
• Healthcare specimen and sample labels

Key specifications

• Print technology: Direct thermal
• Maximum resolution: 203 x 203 dpi
• Maximum print width: 108 mm
• Print speed: up to 178 mm/sec (7 ips)
• Memory: up to 256 MB SDRAM, 256 MB Flash
• Media roll capacity: up to 127 mm diameter
• Connectivity: Dual USB 2.0, USB Host (standard); optional Ethernet, Serial, Dual-WLAN, Dual-Bluetooth
• Display: optional LCD
• Weight: 1.89 kg
• Colour: Black

How to use

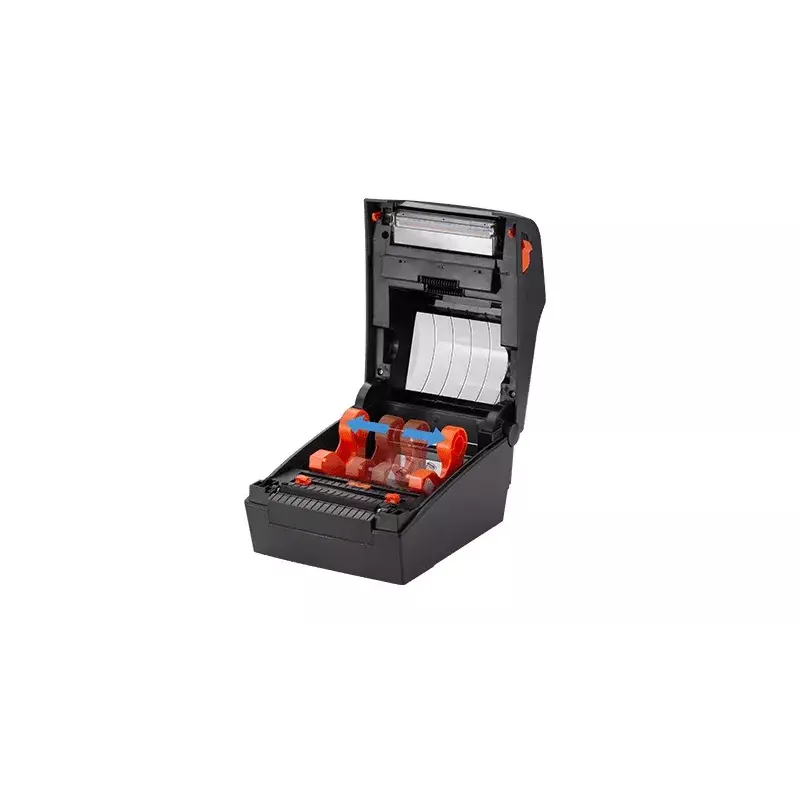

Install the XD5-40d on a stable surface and load direct thermal label roll into the clamshell mechanism according to the user manual, adjusting the paper guide for the media width. Configure desired media type so Smart Media Detection™ can correctly identify Gap, Black Mark, Continuous or Notch formats. Connect the printer to a host via USB, Ethernet or optional wireless/serial interfaces and install compatible drivers or software such as Label Artist-II™ or BarTender®. Use the USB Host Twin Function™ to clone settings to other XD5-series printers when deploying multiple devices.

Recommendations

Use direct thermal labels suited for short- to medium-term applications and store media in a cool, dry place to maintain print quality. For high-volume or durable label needs, consider using appropriate media grades and, where available, the optional cutter or peeler to streamline post-print handling.
