Labelprinter TSC DA220 direct thermal 203 DPI

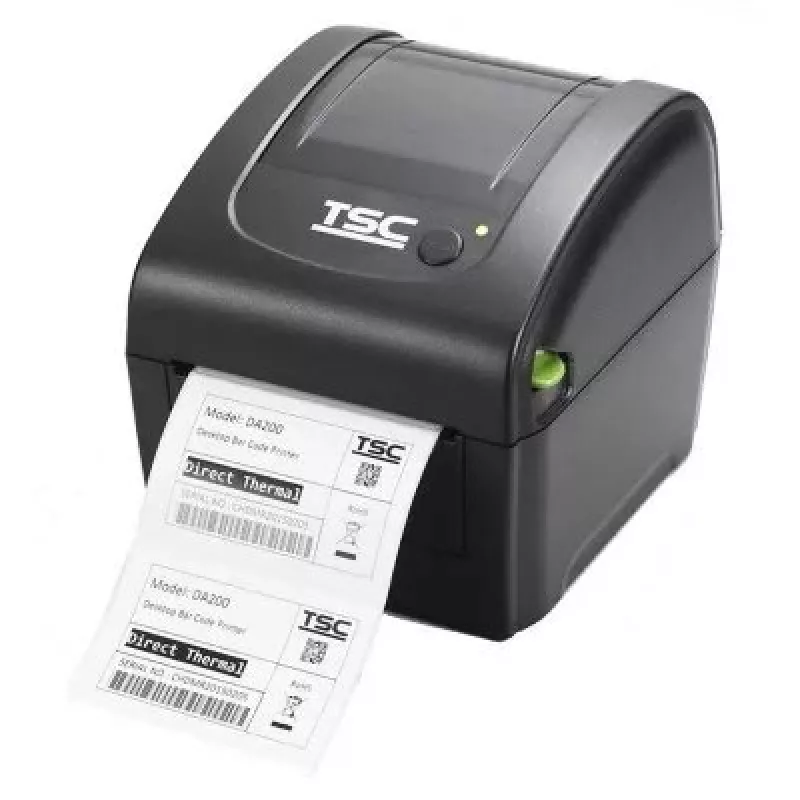

The TSC DA220 is a direct thermal desktop label printer offering 203 x 203 DPI resolution and a maximum print speed of 152.4 mm/s (6 inches per second). Designed for label and tag applications such as product marking, point-of-sale, retail, small office and shipping labels, the DA220 delivers reliable direct thermal printing from rolls up to 5" outer diameter. The printer features a compact black housing with a user-friendly clamshell design and a spring-loaded roll holder for straightforward media loading.

Advantages

The DA220 combines affordability with a durable design and a 60 W power supply that supports high-quality output at top speeds. It prints clear barcodes, graphics and text at up to 6 ips and supports multiple communication options, including USB 2.0, Ethernet LAN, internal 802.11 a/b/g/n Wi‑Fi and internal Bluetooth, as well as Serial RS-232 on applicable models. The unit includes ample memory (128 MB Flash and 64 MB DRAM) for storing fonts, international character sets and graphics, and supports common printer emulations (Line Mode, Eltron®, Zebra®, Datamax) for easy replacement of existing hardware.

Suitable for

• Product marking and inventory labels
• Point-of-sale and retail price labeling
• Small office and back-office labeling
• Shipping and logistics labels

Key specifications

• Print method: Direct thermal
• Resolution: 203 x 203 DPI
• Max print speed: 152.4 mm/s (6 inches per second)
• Media roll capacity: up to 5" (outside diameter), center-biased
• Memory (typical DA220): 128 MB Flash, 64 MB DRAM
• Power supply: 60 W
• Interfaces: USB 2.0, Ethernet LAN, optional/internal 802.11 a/b/g/n Wi‑Fi, internal Bluetooth, Serial RS-232 (model-dependent)
• Supported emulations: Line Mode, Eltron®, Zebra®, Datamax

How to use

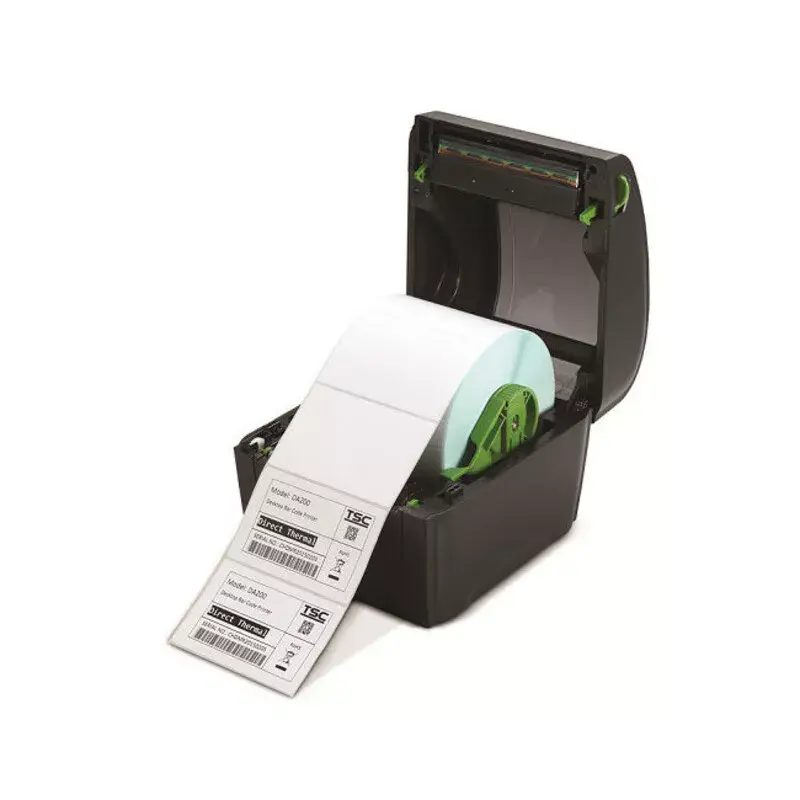

Open the clamshell housing to load a roll of direct thermal labels on the spring-loaded holder and thread the media through the print path. Select the correct top-of-form sensing mode (gap, black mark or notch) and close the printhead until the head-open sensor engages. Connect the printer via USB, Ethernet or enable the internal wireless option and install the appropriate driver or emulation that matches your software. Calibrate the label length and print width in the printer settings before sending print jobs.

Recommendations

Use direct thermal labels designed for your application and keep the printhead and media path free of debris. For consistent barcode quality at high speeds, use labels with stable dimensions and test emulation settings when replacing older printers to ensure compatibility.
