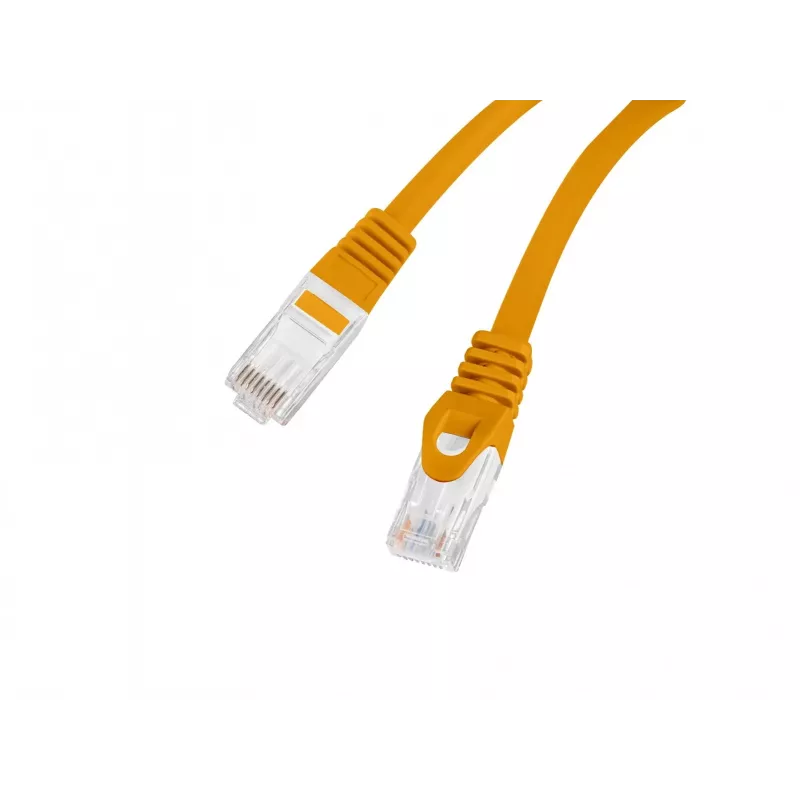

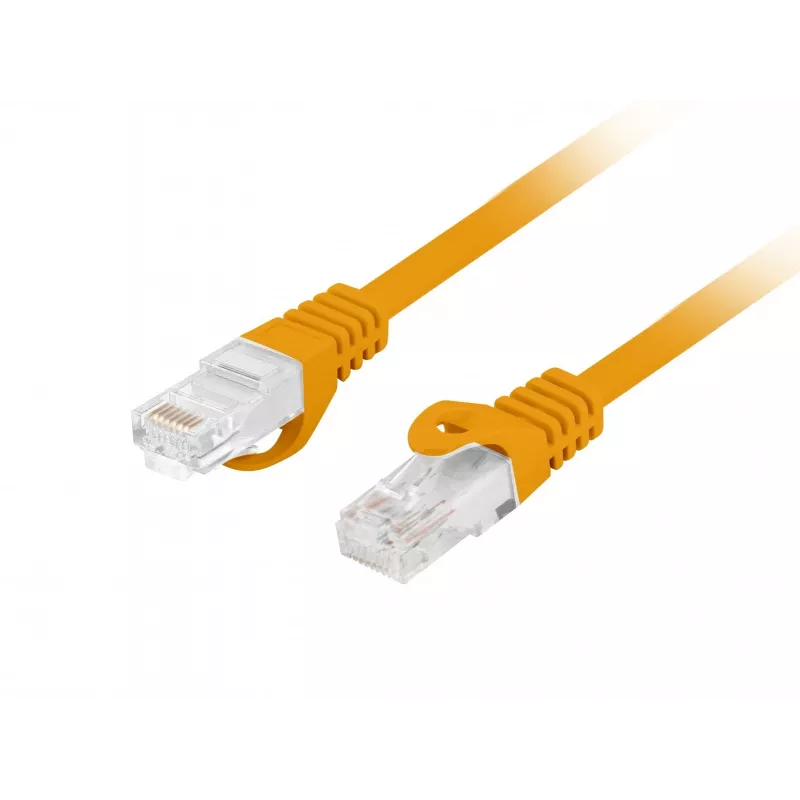

LANBERG Cat.6 UTP LSZH Patchkabel 20m oranje Fluke Passed

The LANBERG Cat.6 UTP LSZH Patch Cable 20m Orange is a high-performance network cable designed for reliable Gigabit Ethernet connections in demanding environments. Constructed with 100% copper conductors and Low Smoke Zero Halogen (LSZH) jacket, it ensures safety and signal integrity. Each cable is Fluke tested to guarantee compliance with Category 6 standards, making it ideal for data centers, LAN networks, and home setups.

Advantages

This patch cable offers superior transmission performance up to 250 MHz, supporting data rates of 1 Gbps. The LSZH jacket reduces toxic smoke in case of fire, enhancing safety in enclosed spaces. Gold-plated RJ45 connectors provide corrosion resistance and optimal conductivity. The 20-meter length allows flexible routing in server rooms or large installations.

Suitable for

• Local Area Networks (LAN)
• Data Centers
• Home Networks
• Office environments requiring high-speed connectivity

Key specifications

• Cable Type: Patch Cord
• Category: Cat.6 (Category 6)
• Shielding: UTP (Unshielded Twisted Pair)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Conductor Material: 100% Copper (CU)
• Length: 20 meters
• Color: Orange
• Performance Certification: Fluke Passed
• Connector Type: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated (50µm)
• Wire Gauge: 24 AWG
• Wiring Standard: TIA/EIA-568B
• Bandwidth: Up to 250 MHz
• Data Transfer Rate: Up to 1 Gbps
• Cable Construction: Stranded
• Number of Pairs: 4 Twisted Pairs
• Outer Diameter: Approx. 6.0 mm
• Operating Temperature: -20°C to 60°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, use with Cat.6 compatible devices and avoid sharp bends or kinks during installation. This cable is suitable for permanent installations where fire safety is a priority.
