Lanberg PCE-US3-002 interne USB 3.2 Gen 1 PCI Express-kaart met 2 externe poorten en 1 interne header

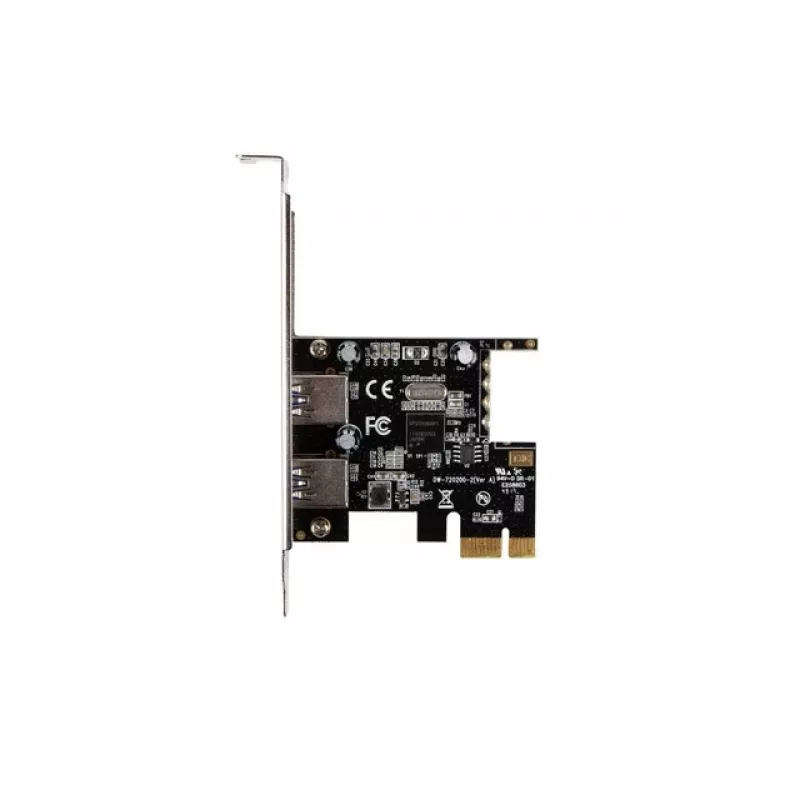

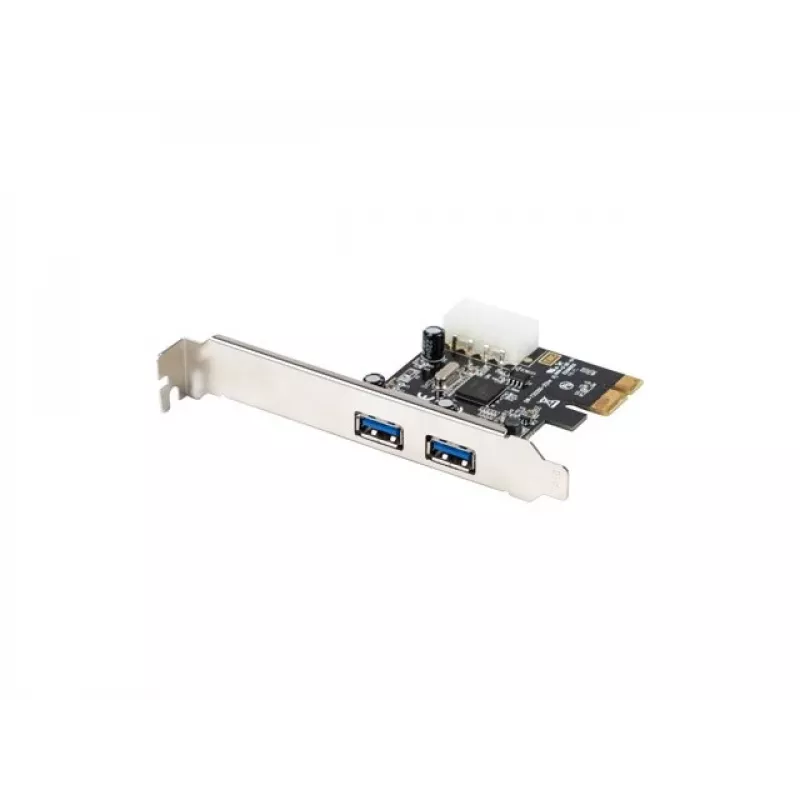

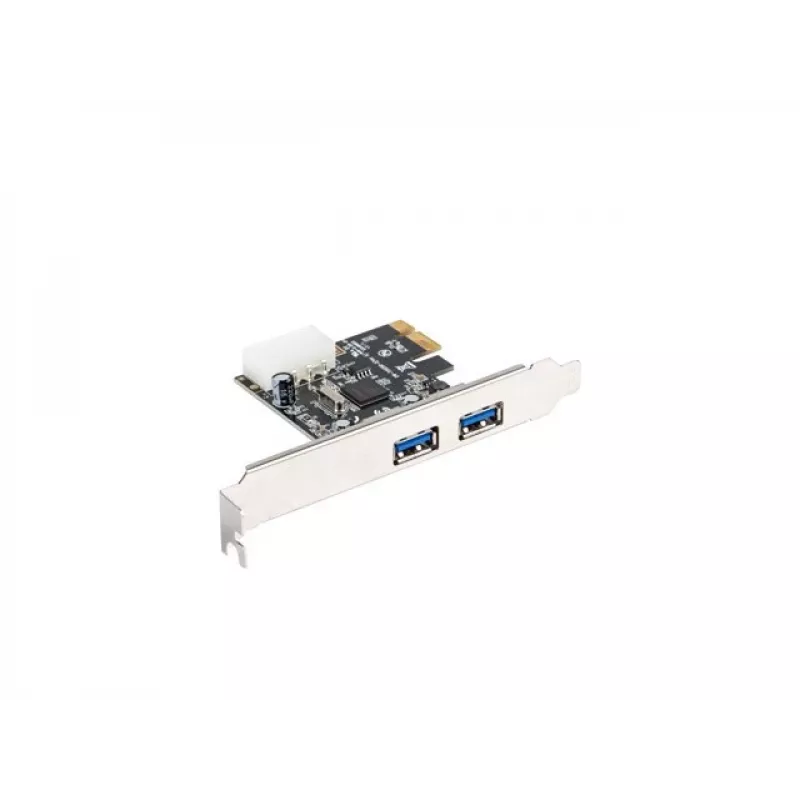

The Lanberg PCE-US3-002 is a high-performance internal USB 3.2 Gen 1 expansion card designed to add two external USB 3.2 Gen 1 Type-A ports and one internal 20-pin USB 3.2 Gen 1 header to your desktop PC. With a PCI Express x1 interface and support for data transfer rates up to 5 Gbit/s, this card is ideal for connecting high-speed peripherals such as external hard drives, SSDs, and USB flash drives.

Advantages

Upgrade your system with USB 3.2 Gen 1 speeds without replacing your motherboard. The card is backward compatible with USB 2.0 and USB 1.1 devices, ensuring broad compatibility. Plug and Play installation and hot-swap support make it easy to use.

Suitable for

• Desktop computers requiring additional USB 3.2 Gen 1 ports
• Users needing an internal USB header for front panel or internal device connectivity
• Systems with PCI Express x1, x4, x8, or x16 slots

Key specifications

• Host Interface: PCI Express x1
• USB Standard: USB 3.2 Gen 1 (USB 3.1 Gen 1 / USB 3.0)
• External USB Ports: 2 x USB 3.2 Gen 1 Type-A
• Internal USB Headers: 1 x 20-pin USB 3.2 Gen 1 Header
• Total USB Ports: 4 (2 external, 2 internal via header)
• Max Data Transfer Rate: 5 Gbit/s
• Chipset: Renesas uPD720202
• Power Connector: 15-pin SATA Power
• Form Factor: Standard Profile PCI Express Card
• Operating System Support: Windows XP/Vista/7/8/10/11, Linux
• Included Accessories: Low-profile bracket

Recommendations

For optimal performance, connect the SATA power cable to your power supply. The included low-profile bracket allows installation in slim cases.
