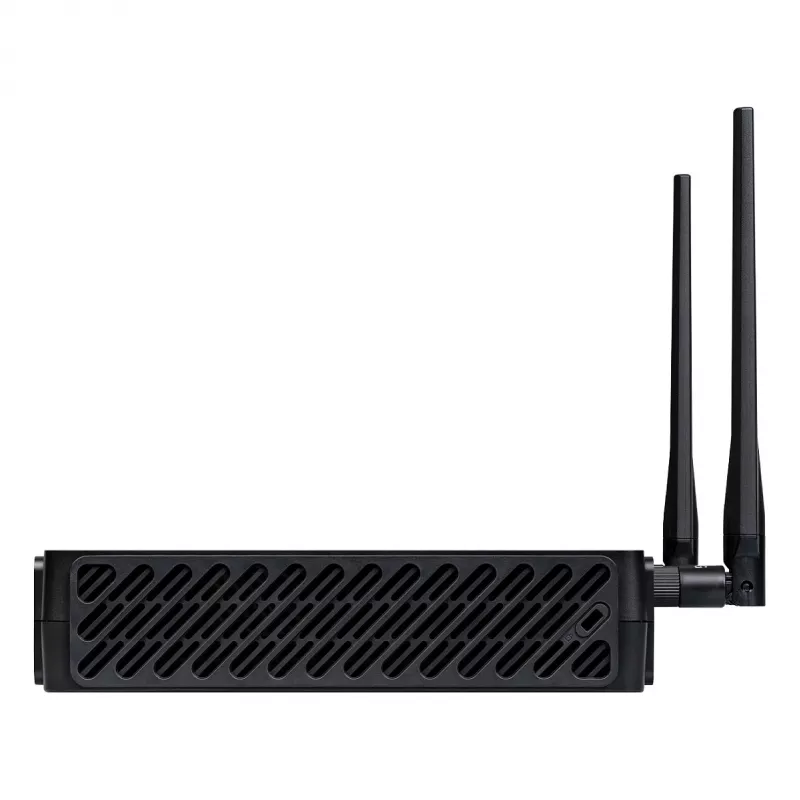

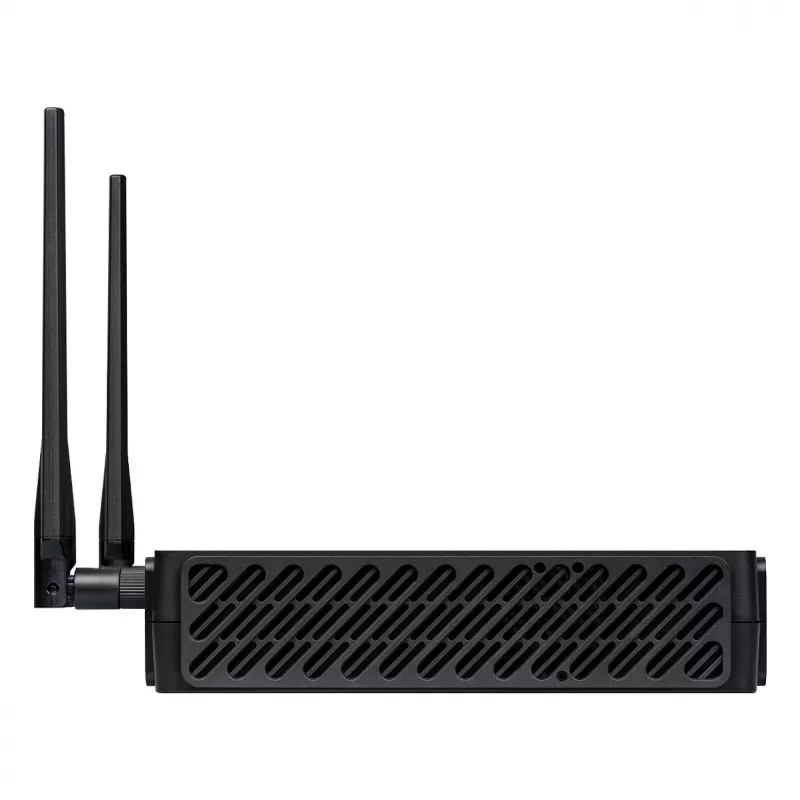

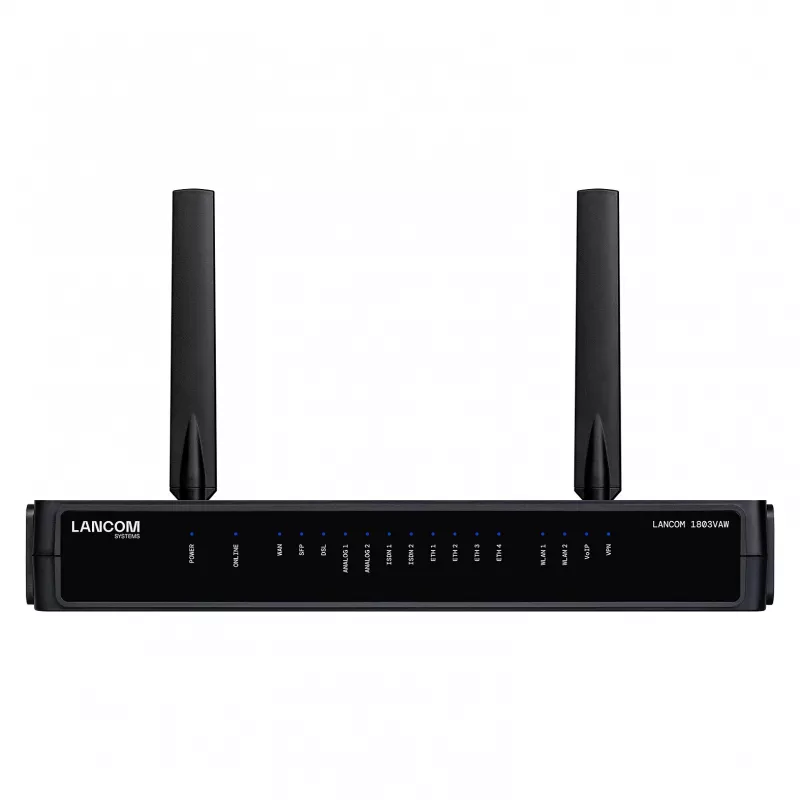

LANCOM 1803VAW (EU) draadloze router, zwart

The LANCOM 1803VAW (EU) is a black SD-WAN VoIP gateway with VDSL and Wi-Fi 6. It integrates mobile devices into the corporate network via dual-band concurrent Wi-Fi 6 technology on both 2.4 GHz and 5 GHz bands. The integrated VDSL modem and optional fiber connection provide a high-performance basis for fast internet, while LANCOM IPSec VPN and SD-WAN connect company locations and mobile employees.

Key features

• SD-WAN VoIP gateway with VDSL and Wi-Fi 6
• Dual-band concurrent Wi-Fi 6 technology for parallel operation in 2.4 GHz and 5 GHz bands
• Integrated VDSL modem and optional fiber connection
• LANCOM IPSec VPN and SD-WAN for networking locations and mobile employees
• Stateful Inspection Firewall with Intrusion Prevention and Denial of Service Protection
• Network segmentation via ARF and VLAN
• Supports up to 4096 VLANs
• External antennas with SMA connector type, max gain 2 dBi, 2 antennas
• 1 fan
• LED indicators
• Desktop, rack, and wall mounting possible

Specifications

• Brand: LANCOM
• MPN: 62154
• Product colour: Black
• Wi-Fi: Yes
• Wi-Fi standards: Wi-Fi 6
• Frequency band: 2.4/5 GHz
• Ethernet LAN data rates: 10,100,1000 Mbit/s
• Network standards: IEEE 802.1Q, IEEE 802.3az
• Management protocols: SNMPv1,v2c,v3
• Supported network protocols: Ethernet over GRE-Tunnel (EoGRE), L2TPv3, ARP-Lookup, LLDP, DHCP option 82
• VoIP protocols: SIP ALG
• Security algorithms: 3DES, AES, FIPS 140, SHA-1, SHA-256, SHA-384, SHA-512
• Authentication method: PAP, CHAP, MS-CHAP, MS-CHAPv2
• Firewall: Yes
• USB 2.0 ports: 1
• Ethernet LAN (RJ-45) ports: 5
• WAN port: Ethernet (RJ-45)
• Power consumption (max): 35 W
• Power consumption (idle): 17 W
• Heat dissipation: 140 BTU/h
• Width: 293 mm
• Depth: 190 mm
• Height: 44 mm
• Weight: 815 g
• Operating temperature: 0 - 40 °C
• Relative humidity: 0 - 95%
