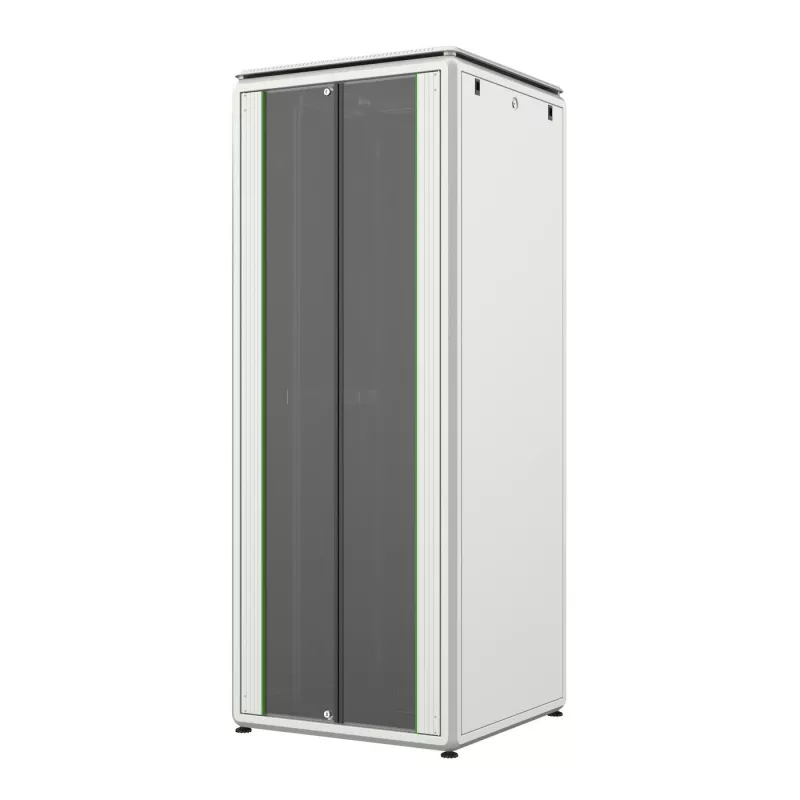

LANVIEW 19 inch 42U serverrackkast 800x800mm, grijs (RAL 7035), glazen deur

This LANVIEW 19-inch 42U rack cabinet provides a robust and secure housing solution for your critical IT and network equipment. With a spacious 800x800mm footprint and a generous 800kg load capacity, it accommodates a wide range of servers, switches, and patch panels, making it an ideal choice for data centers, server rooms, and network closets.

Advantages

The cabinet is constructed from a welded steel frame with a powder-coated finish in light grey (RAL 7035), ensuring durability and a professional appearance. The lockable glass front door allows for easy monitoring of equipment while maintaining security, while the lockable steel rear door and removable side panels provide full access for installation and maintenance. Adjustable 19-inch mounting profiles (front and rear) offer flexible equipment installation, and the cabinet is prepared for fan units to enhance ventilation.

Suitable for

• Data centers and server rooms requiring high-density equipment mounting
• Network and telecommunications installations
• Enterprise IT environments needing secure and organized equipment housing

Key specifications

• Rack capacity: 42U
• Rack width: 19 inch
• External dimensions: 800 x 800 x 2053 mm (W x D x H)
• Load capacity: 800 kg
• Material: Steel, powder coated
• Colour: Grey (RAL 7035)
• Front door: Lockable glass door
• Rear door: Lockable steel door
• Side panels: Removable and lockable
• Cable entry: Top and bottom with brush strips
• Protection rating: IP20
• Includes: 4 leveling feet, 4 castors, 2 keys for doors, 2 keys for side panels

Recommendations

For optimal airflow, install optional fan units in the top or bottom cable entry areas. Use the leveling feet for stable placement on uneven floors, or attach the castors for mobility. Ensure the cabinet is properly grounded to protect your equipment.
