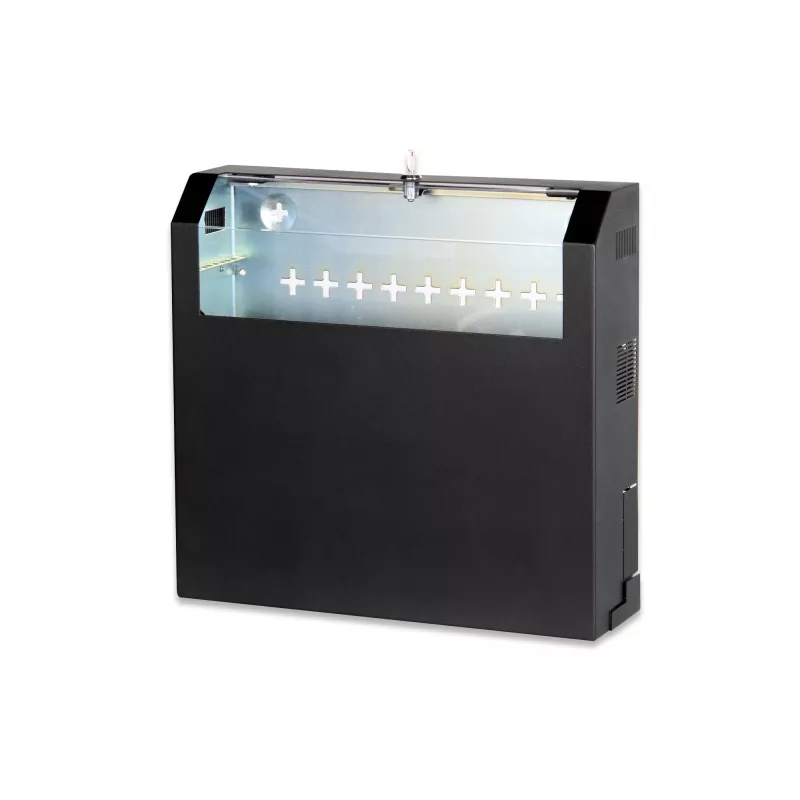

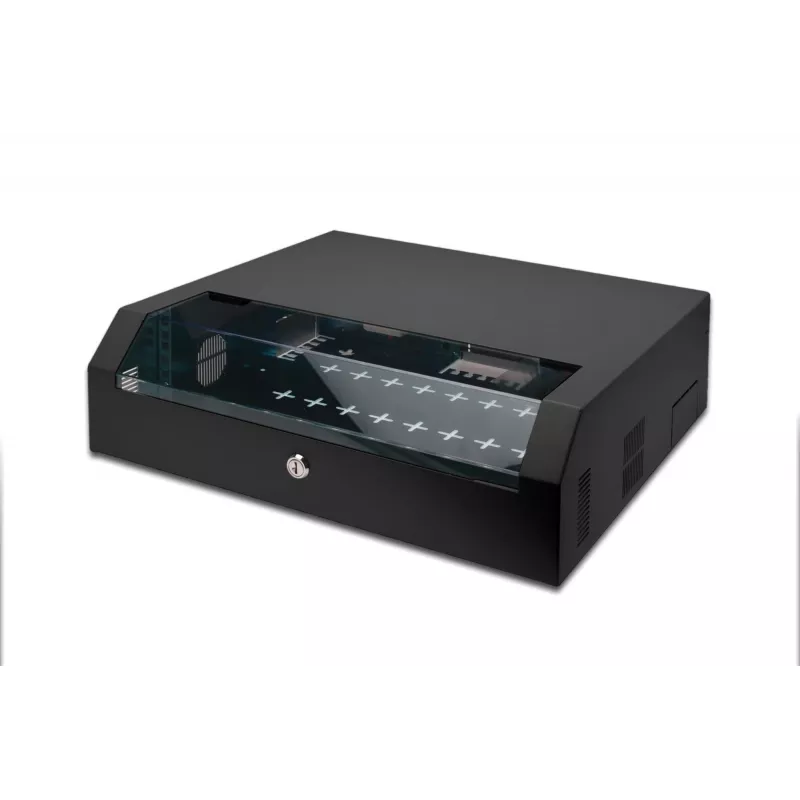

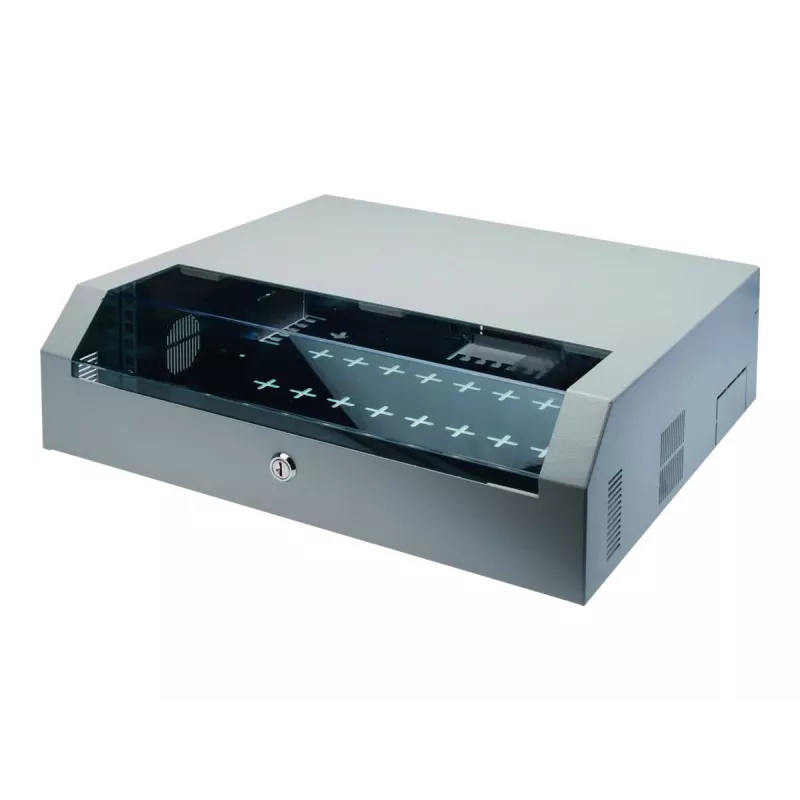

Wandmontagerack Digitus DN-19 04U-PB-B

Limited wall or ceiling space in small offices and home networks often makes it difficult to securely house networking equipment. The DIGITUS DN-19 04U-PB-B SOHO Slim Wall Mount Rack Enclosure solves this by offering a compact, rotatable 3U front rail and a fixed 2U rear rail in a slim, space-saving design. With pre-punched cable cut-outs and multiple mounting holes in the lower housing area, it accommodates both 19-inch components and non-standard devices like DSL routers, keeping your setup organized and protected.

Who is it for

This enclosure is ideal for small office/home office (SOHO) users, IT technicians, and installers who need a reliable wall-mounted solution for active network components such as switches and patch panels, as well as passive devices and non-19" equipment. It suits installations where space is at a premium, including walls, ceilings, or raised floors.

Main features

• Compact, slim housing for restricted spaces

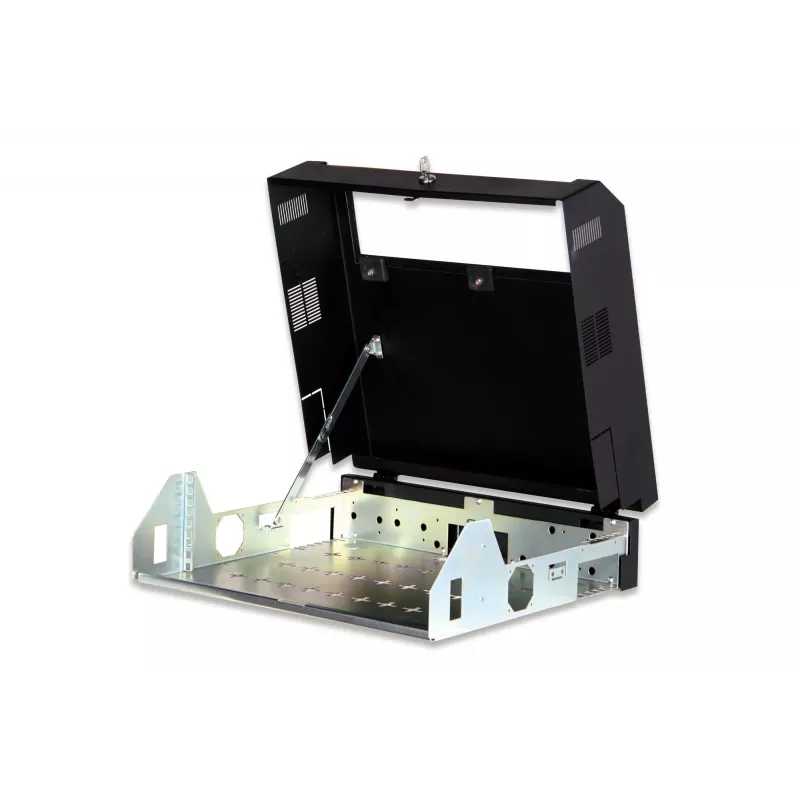

• Rotatable 3U front rail: vertical, horizontal, or angled positioning
• Fixed 2U rear rail for additional equipment
• Pre-punched cable cut-outs for flexible cable management
• Multiple punched mounting holes in lower area for non-19" devices
• Maximum load capacity of 30 kg
• IP20 protection rating
• Black powder-coated finish
• Door stopper mechanism allows mounting in any orientation

Specifications

• Brand: DIGITUS
• Model: DN-19 04U-PB-B
• Rack capacity: 4U (3U rotatable front, 2U fixed rear)
• Rack standard: 19-inch
• External dimensions (H x W x D): 145 x 500 x 475 mm
• Weight: 8.5 kg
• Load capacity: 30 kg
• Protection rating: IP20
• Material: Steel sheet
• Colour: Black
• Mounting type: Wall mount
• Included: Mounting kit, wall mounting kit

Tips

To maximize space, mount the enclosure on a wall or ceiling using the door stopper mechanism for secure positioning. Route cables through the pre-punched cut-outs to maintain a tidy installation. For non-19" components like DSL routers, utilize the lower mounting holes. Ensure the mounting surface can support the combined weight of the enclosure and equipment, up to 30 kg.
