Lanview LVN125430 RJ45-kabelstekker, metaalkleur

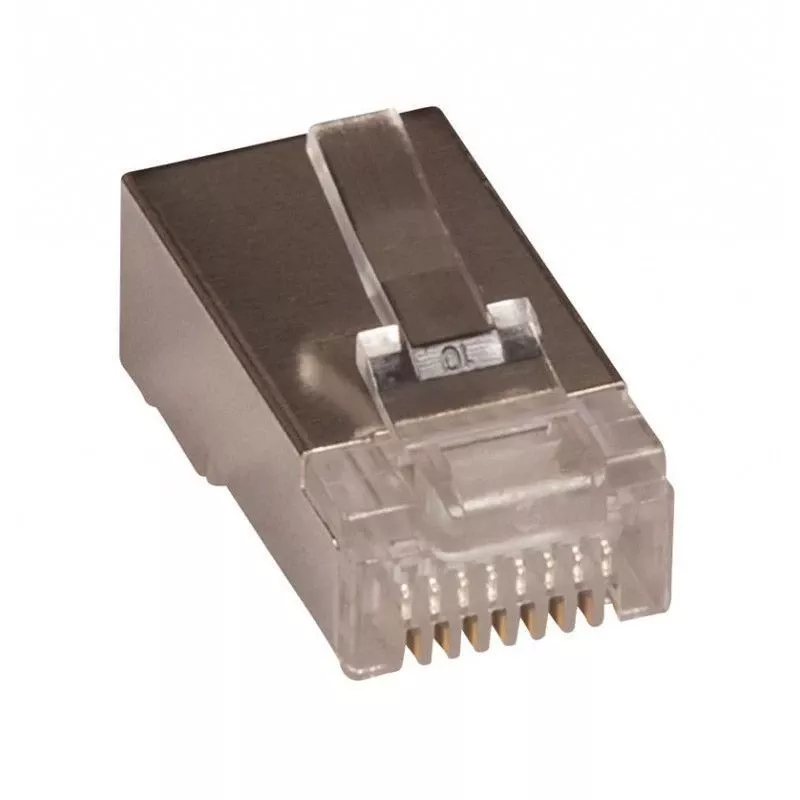

The Lanview LVN125430 RJ45 wire connector is a shielded, male Ethernet connector designed for Cat5e patch cables. It has a metallic finish and compact dimensions (14 mm width, 21 mm depth), and is supplied in packs of 10. The connector preserves cable twist through the connector body to help maintain signal performance for network installations.

Advantages

The metallic shield and design help reduce electromagnetic interference and improve overall connection stability. Its compact size and lightweight construction (26.3 g per unit) make it easy to handle and install. Supplied in a pack of 10, it is convenient for multiple terminations or small installation projects.

Suitable for

• Termination of shielded Cat5e patch cables
• Small office and home network repairs
• Network patch panel and patch cord extensions

Key specifications

• Brand: Lanview
• Model / MPN: LVN125430
• EAN: 5704174320586
• Connector type: RJ45, male
• Cable compatibility: Shielded Cat5e
• Finish: Metallic
• Dimensions: 14 mm (W) x 21 mm (D)
• Weight: 26.3 g (per unit)
• Pack quantity: 10

How to use

Prepare the shielded Cat5e cable by exposing the conductor pairs and preserving the cable twist as close to the connector as possible. Insert the conductor pairs into the RJ45 contacts according to the required wiring standard (T568A or T568B), ensuring the cable shield is connected to the connector housing for grounding. Crimp or secure the connector according to the manufacturer’s recommended method and verify continuity and performance with a network cable tester.

Recommendations

Use with properly shielded Cat5e cable and ensure the shield is correctly terminated to maintain EMI protection. Test each terminated cable to confirm correct pair mapping and signal integrity before deploying in live networks.
