Lanview LVO231408-FLEX InfiniBand/glasvezelkabel 3 m LC LC/LC geel

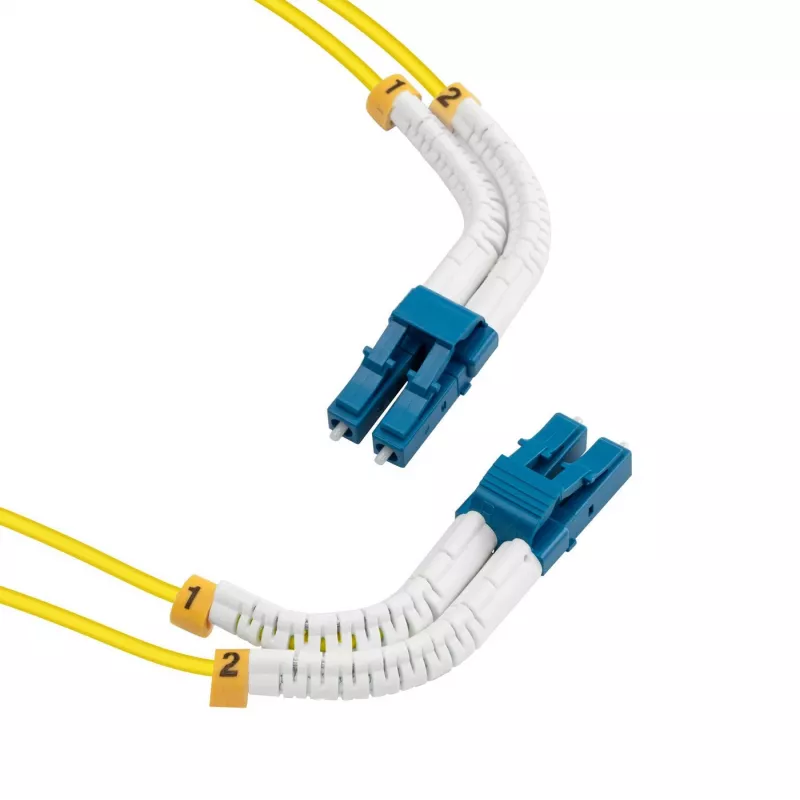

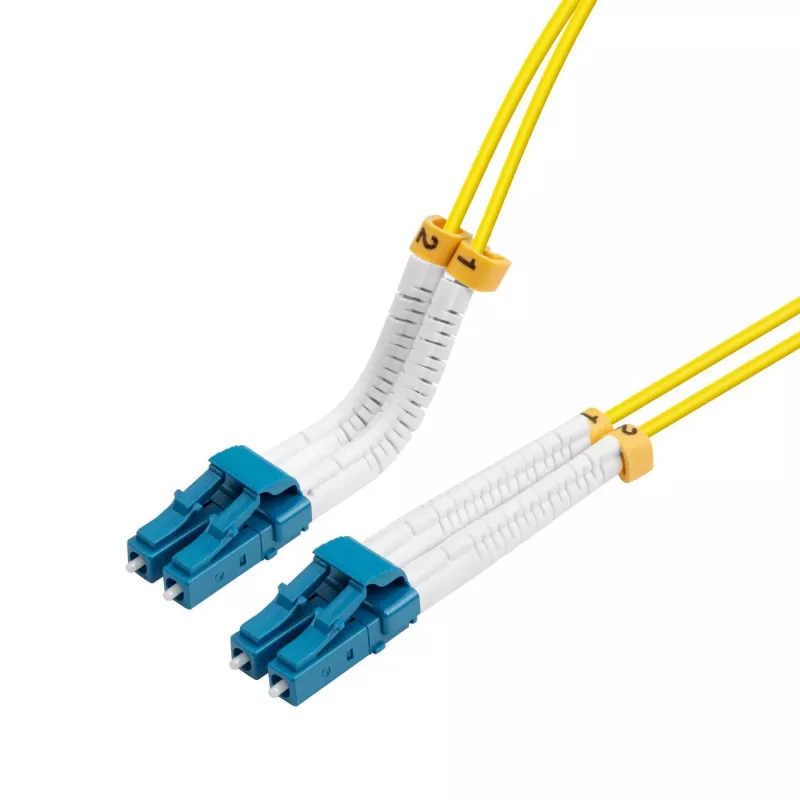

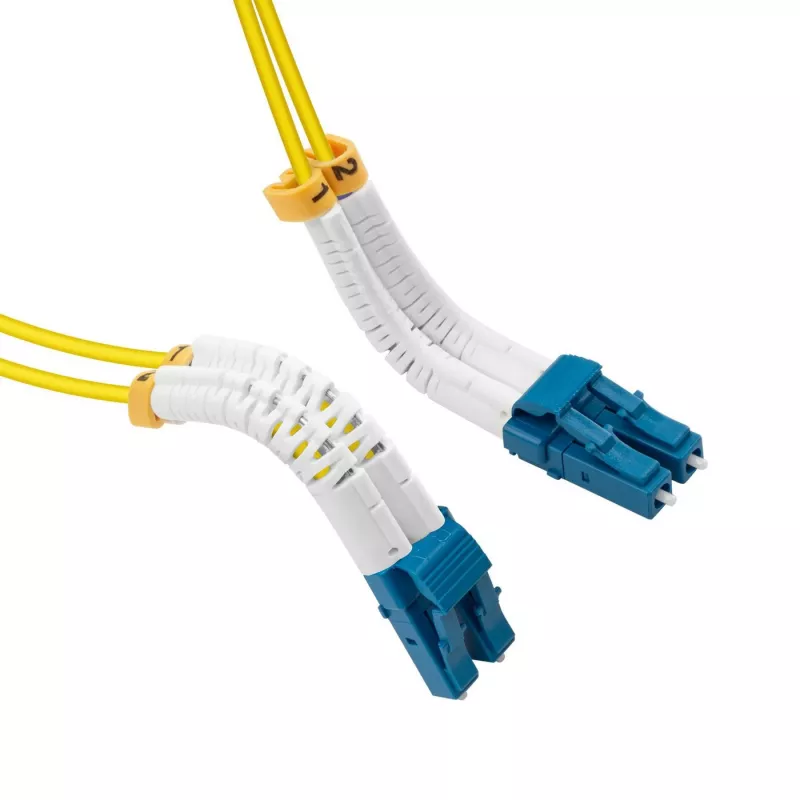

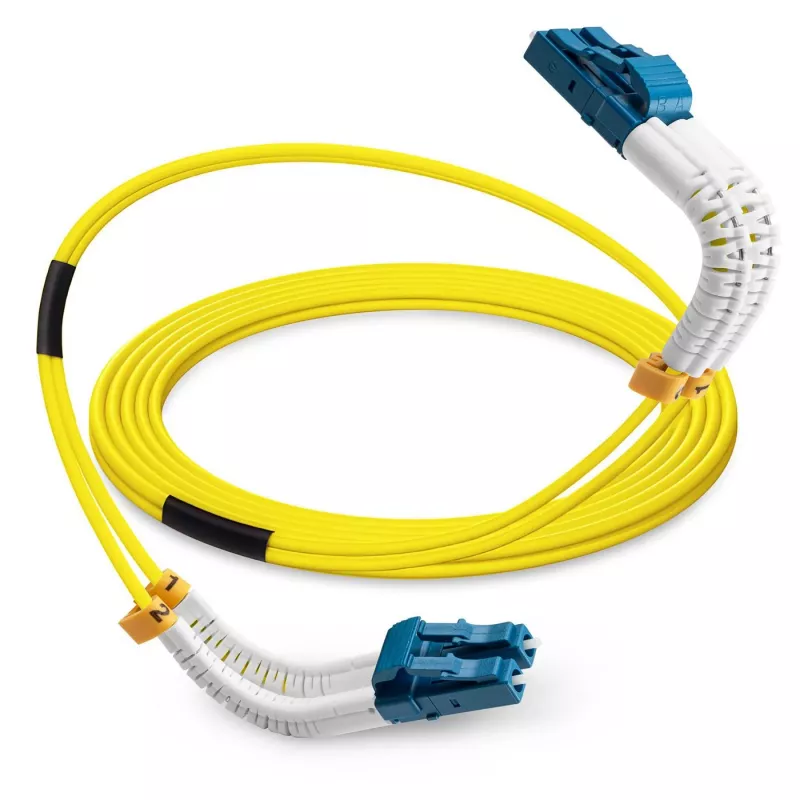

The Lanview Bendable series LVO231408-FLEX is a 3 m LC–LC fibre optic patch cable using OS2 single-mode fibre with a 9 µm core. Its yellow jacket makes the cable easy to identify in installations. The cable features a bendable boot constructed around a single stainless-steel wire that lets you set and maintain any angle from straight to 90° while preserving signal integrity and connector alignment.

Advantages

The bendable boot allows manual adjustment of the connector angle and holds the chosen position thanks to an internal wire. The boot can be repositioned or straightened for connector disconnection. Built with LC connectors on both ends and OS2 single-mode fibre, the cable is suitable for high-performance, low-loss duplex links and dense installations where precise connector placement is required.

Suitable for

• High-density patch panels and racks
• Data centres and telecom rooms with limited space
• Long-distance single-mode connections requiring OS2 fibre
• Environments where controlled connector orientation is needed

Key specifications

• Cable type: LC/LC
• Fibre type: OS2 single-mode, 9 µm core
• Length: 3 m
• Connectors: LC to LC, duplex
• Colour: Yellow
• Weight: 0.08 kg

How to use

Attach the LC connectors to the corresponding ports, then manually bend the boot around the stainless-steel wire to set the desired angle. The internal wire will maintain the chosen orientation; reposition or straighten the boot by hand when disconnecting or rerouting the cable. Ensure connectors are clean and fully inserted to maintain optimal signal transmission.

Recommendations

Use in conjunction with fibre-cleaning tools before installation and avoid sharp bends beyond the boot’s adjustable range. For long-term deployments in high-density environments, label the cable and leave sufficient slack to allow safe repositioning of the bendable boot.
