Lanview LVR-3MSCH-LIC-SCH8 stroomverdeleenheid (PDU) 8 AC-uitgangen 1U zwart

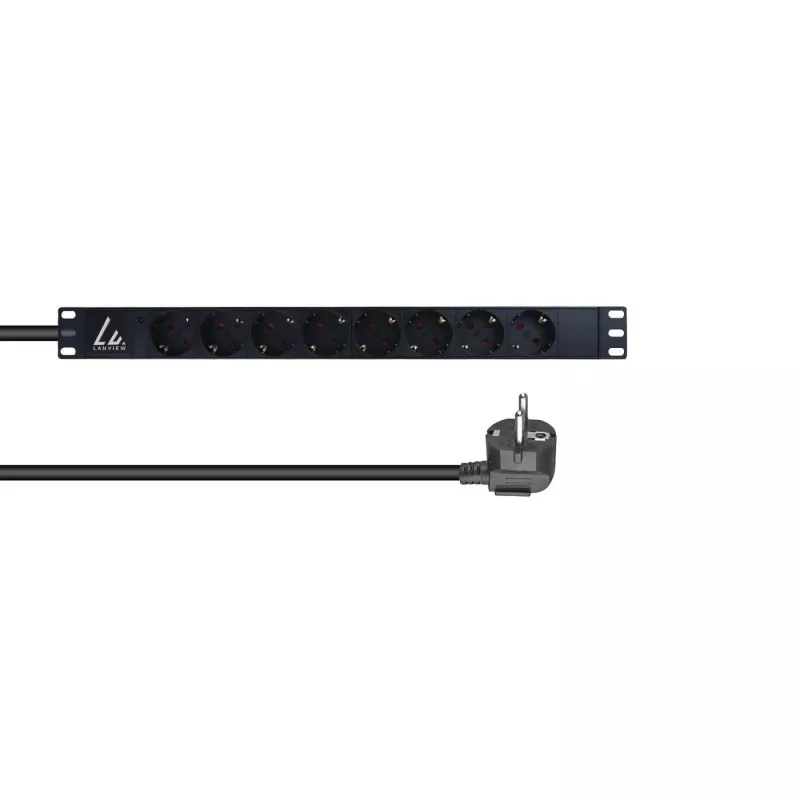

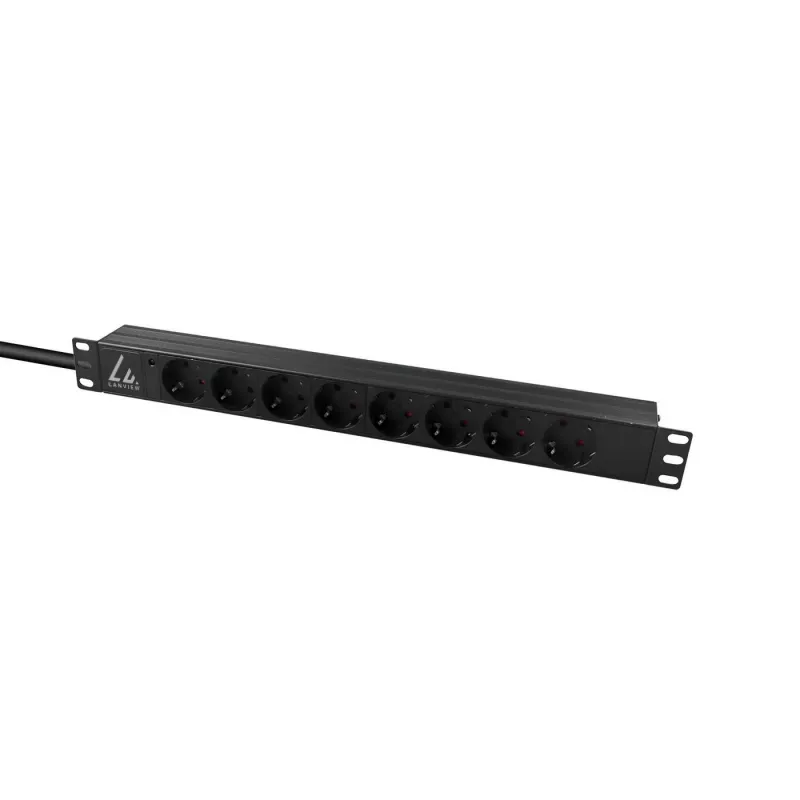

The Lanview LVR-3MSCH-LIC-SCH8 is a 1U power distribution unit for rack mounting, providing eight Schuko (Type F) AC outlets and a 3 m power cord with a Schuko plug. Designed for server racks and data-centre equipment, it supplies up to 230 V and 16 A and includes LED indicators for basic power status monitoring.

Advantages

The unit offers eight grounded Schuko outlets in a compact 1U form factor, a 3 metre cable for flexible installation, LED indicators to quickly check power presence, and a lightweight black metal housing suitable for standard rack cabinets. It supports up to 16 A input current and operates at the nominal 230 V used in many server environments.

Suitable for

• Small to medium server racks
• Network cabinets and telecom enclosures
• Data-centre equipment requiring multiple Schuko outlets
• Workspace power distribution for rack-mounted devices

Key specifications

• Model: Lanview LVR-3MSCH-LIC-SCH8
• AC outlets: 8 × Schuko (Type F)
• Nominal input voltage: 230 V
• Maximum current: 16 A
• PDU type: Basic, 1U rack-mount
• Cable length: 3 m with Schuko plug
• Colour: Black
• Weight: 1.1 kg

How to use

Mount the PDU into a standard 1U rack position using the appropriate rack screws. Connect the 3 m Schuko power cord to a compatible 230 V outlet capable of supplying up to 16 A. Plug rack equipment into the Schuko outlets. Use the LED indicators to verify incoming power; if an indicator is off, check the upstream power source and circuit protection devices.

Recommendations

Use a dedicated circuit with appropriate overcurrent protection and avoid exceeding the 16 A maximum current. Distribute connected loads across the eight outlets to prevent overloading a single outlet or circuit. Ensure rack ventilation and follow local electrical codes during installation.
