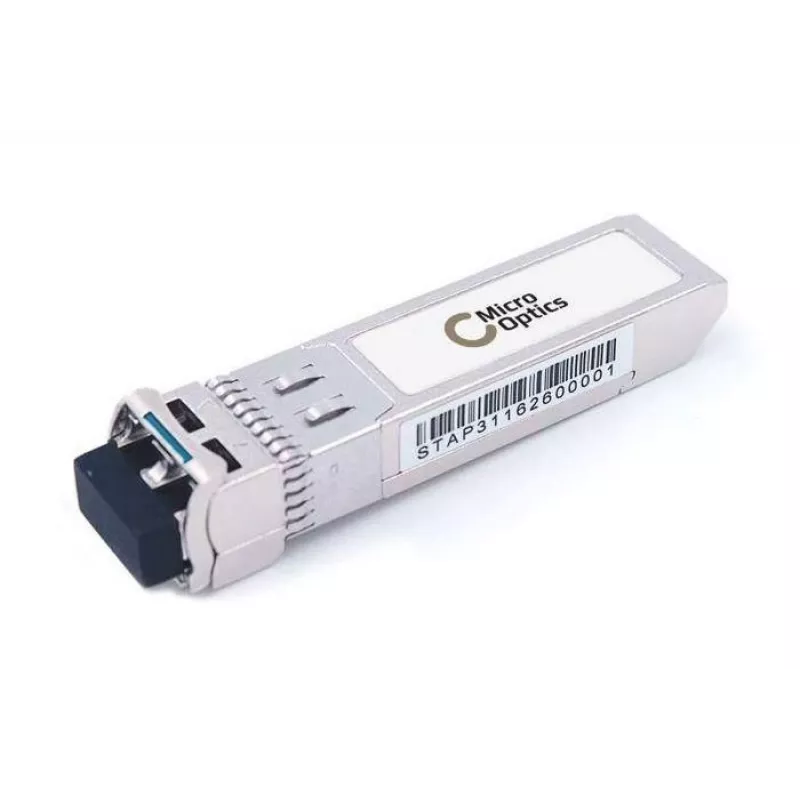

Netwerk-transceivermodule MicroOptics MO-AXM761-10000S SFP+ 10 Gbit/s 850 nm

MicroOptics MO-AXM761-10000S is an SFP+ fiber-optic network transceiver module that supports a data rate of up to 10,000 Mbit/s (10 Gbit/s) using an 850 nm wavelength. Engineered for insertion into standard SFP+ ports, this short-range multimode module provides reliable high-speed links for data center uplinks, server connections and other network segments requiring low-latency, high-bandwidth interconnects. The transceiver is compatible with a range of SFP+-equipped switches and network devices that accept SFP+ optical modules.

Advantages

The module offers compact SFP+ form factor for easy hot-plug installation and replacement, enabling flexible network upgrades without major hardware changes. With 850 nm multimode operation it supports cost-effective short-distance fiber runs while delivering 10 Gbit/s throughput. Passive, standards-aligned design minimizes configuration complexity and integrates with existing fiber infrastructure for predictable performance.

Suitable for

• Data center uplinks between switches and aggregation layers
• Server-to-switch high-speed connections
• Short-range multimode fiber links within racks or between adjacent racks
• Switch stacking or expansion with SFP+ ports

Key specifications

• Form factor: SFP+
• Maximum data transfer rate: 10,000 Mbit/s (10 Gbit/s)
• Wavelength: 850 nm
• Transmission medium: Multimode fiber (short-range)
• Typical use distance: short-range multimode links (within data center/rack)

How to use

Install the transceiver by inserting it into an available SFP+ port on the switch or network device until it clicks into place. Connect the multimode fiber cable (with appropriate LC connectors) to the transceiver, ensuring correct polarity and secure ferrule seating. Devices typically detect the module automatically; verify link status via the switch or host interface LEDs and management console. For removal, power down the relevant interface if required by your device, then depress the latch and pull the module straight out to avoid damaging the port.

Recommendations

Use OM3/OM4 multimode fiber for optimal short-range performance and ensure fiber connectors are clean before mating. Confirm device compatibility with SFP+ optical modules in the switch firmware documentation. For installations in racks, route fiber with gentle bends and secure strain relief to maintain signal integrity.
