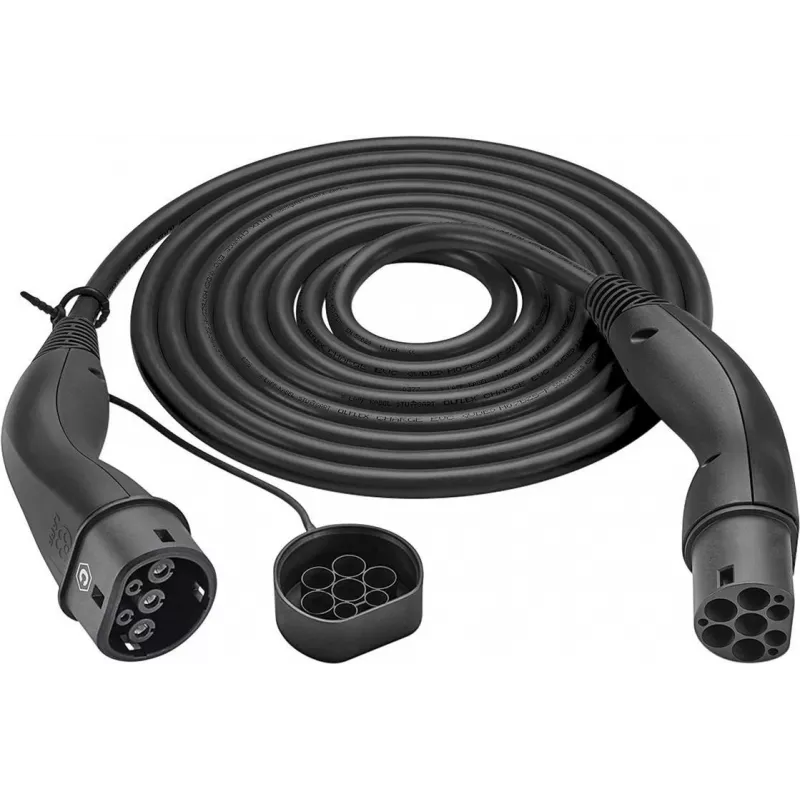

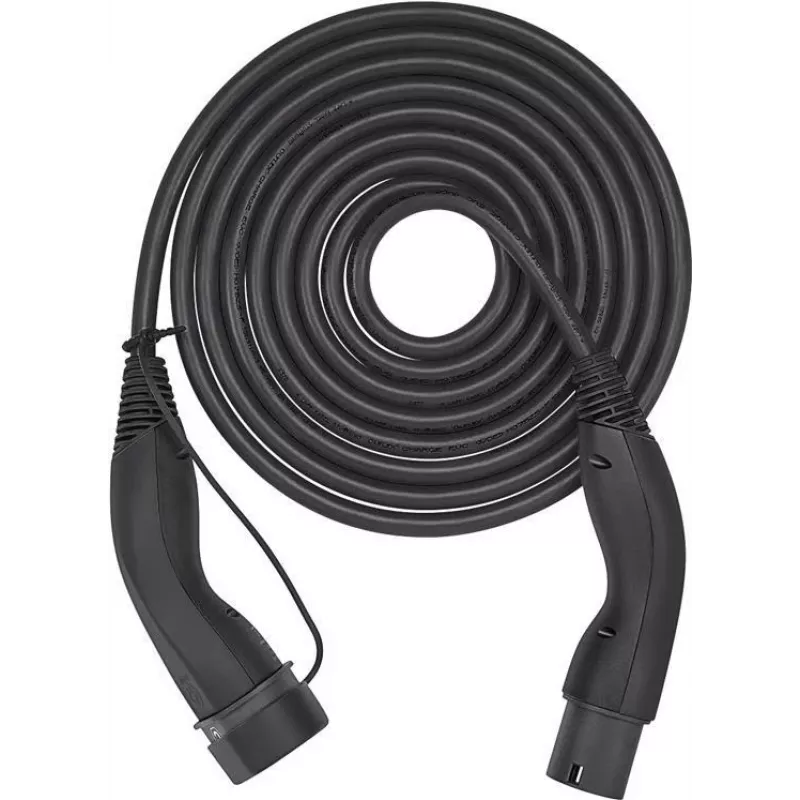

LAPP MOBILITY HELIX® Type 2 laadkabel, 7,4 kW, 5 m, zwart 61794

Type 2 EV charging cable with HELIX® technology, delivering up to 7.4 kW single-phase power for reliable electric vehicle charging. The 5 m black cable offers enhanced flexibility and durability, suitable for Mode 3 charging at home or public stations.

Advantages

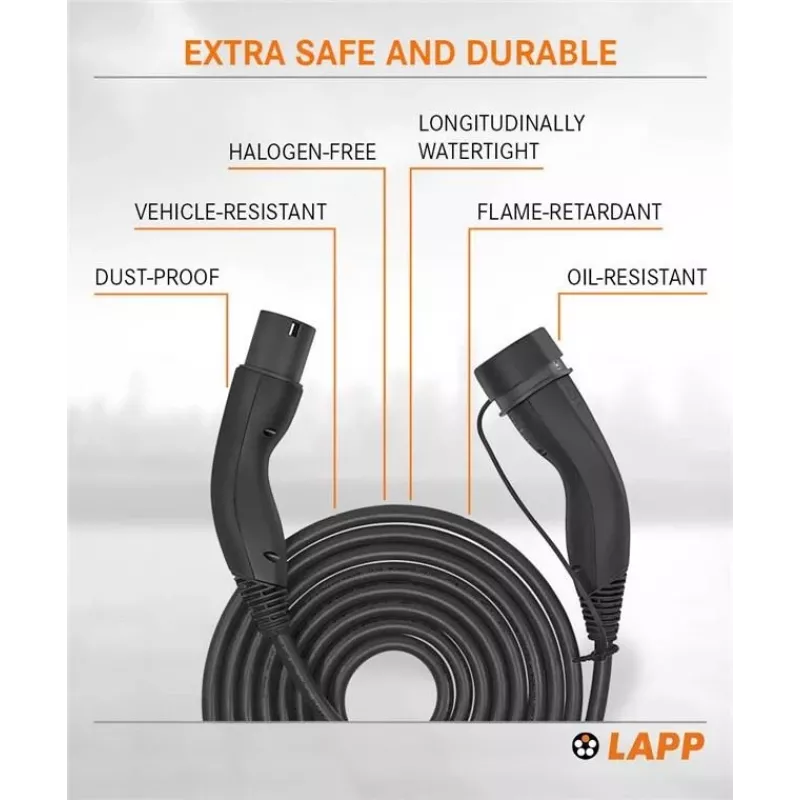

HELIX® cable construction provides superior flexibility and resistance to wear, oil, UV, and flames. Halogen-free TPE-U insulation ensures safety and longevity in demanding environments.

Suitable for

• Electric vehicles (EVs) and plug-in hybrids (PHEVs) with Type 2 inlet
• Mode 3 charging at stations with Type 2 socket
• Indoor and outdoor use, operating from -30 °C to +50 °C

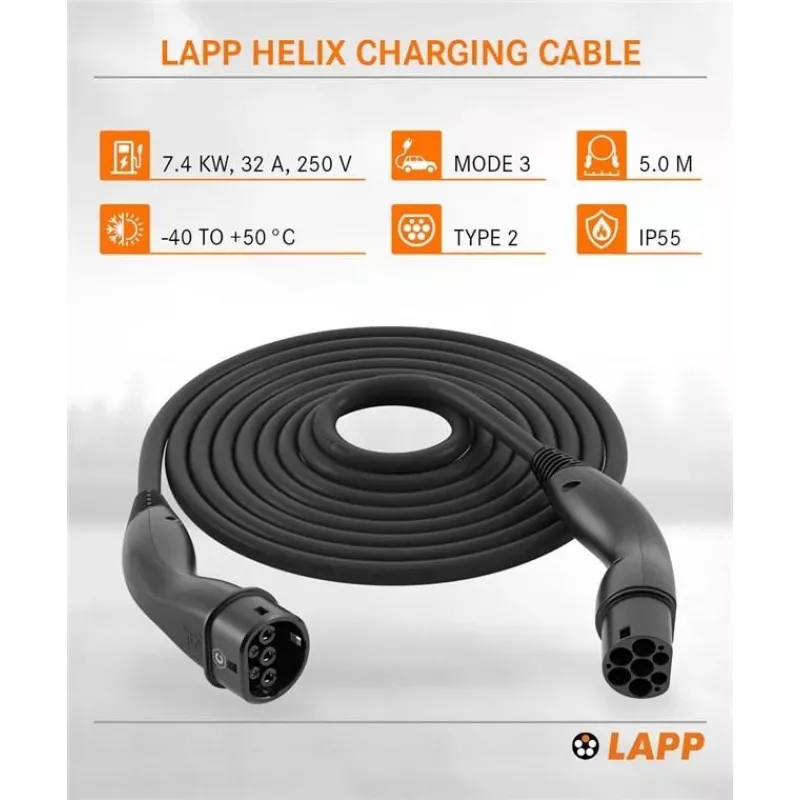

Key specifications

• Connectors: Type 2 (IEC 62196-2) on both ends
• Charging power: up to 7.4 kW (single-phase)
• Maximum current: 32 A
• Nominal voltage: 250 V AC
• Cable length: 5 m
• Cable colour: black
• Ingress protection: IP44 when connected

Recommendations

Ideal for EV owners needing a durable, flexible charging cable for daily use. The HELIX® design reduces tangling and withstands frequent handling.
