Laptop-dock Nedis CCGB64770WT01 USB Type-C bedraad 7,5 W

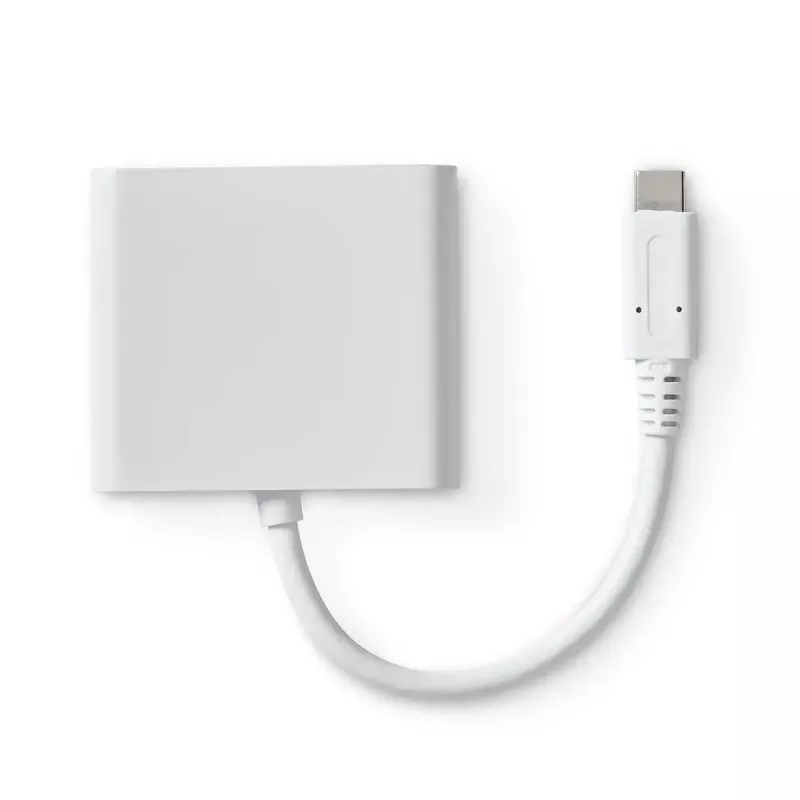

This Nedis USB 3.2 Gen 1 multiport adapter connects to any USB-C device and lets you combine up to three USB devices through a single USB-C port. It includes an HDMI output that supports 4K at 30 Hz, a USB-A port and a USB-C 3.2 Gen 1 data port with up to 5 Gbps transfer speed, and a USB-C power output up to 7.5W. The adapter has a compact, wired design and comes in white with a short built-in cable.

Advantages

The dock provides a compact way to expand a USB-C port into HDMI video output and additional USB data ports. It supports 4K@30Hz HDMI output for external displays, offers high-speed 5 Gbps data transfer on USB 3.2 Gen 1 ports, and supplies up to 7.5W power via the USB-C power output. Its small footprint and light weight make it convenient for tidy workspaces and mobile use.

Suitable for

• Connecting a laptop or tablet with USB-C to an external monitor via HDMI
• Attaching USB-A peripherals such as mice, keyboards or storage drives
• Adding an extra USB-C data port for high-speed transfers

Key specifications

• Interface: USB-C (host) to HDMI, USB-A and USB-C (device)
• USB standard: USB 3.2 Gen 1 (up to 5 Gbps)
• HDMI output: supports up to 4K resolution at 30 Hz
• USB-C power output: up to 7.5 W
• Cable length: 0.1 m (integrated)
• Colour: white
• Dimensions (W × D × H): 59 mm × 190 mm × 12 mm
• Weight: 0.042 kg

How to use

Plug the adapter's USB-C connector into a USB-C port on your laptop or tablet. Connect an HDMI cable from the adapter's HDMI output to an external monitor to enable video output (up to 4K@30Hz). Attach USB-A or USB-C peripherals to the corresponding ports for data transfer. If a connected device requires power from the adapter, use the USB-C power output keeping in mind the maximum 7.5W limit.

Recommendations

For stable video performance at 4K resolution, use high-quality HDMI cables rated for 4K@30Hz and ensure the host device supports USB-C video output (DisplayPort Alternate Mode). Avoid exceeding the 7.5W power draw on the USB-C power output and keep cable connections secure to maintain data transfer speeds up to 5 Gbps.
