Laserliner 082.240A endoscoopsonde 7,6 mm diameter, 1 m lengte

This Laserliner endoscope probe stands out with its 7.6 mm diameter and 1 m flexible cable, reaching into tight spaces where standard inspection cameras cannot fit. It is built for the Laserliner VideoFlex G3, VideoControl-Master, and VideoControl-Live systems, providing a reliable extension for visual inspection tasks.

Highlights

• 7.6 mm probe diameter for narrow access
• 1 m flexible cable length
• 640 x 480 pixel CMOS camera with 54° field of view
• 4 dimmable high-power LEDs for illumination
• IP68 waterproof camera head and cable

In daily use

The probe connects directly to compatible Laserliner main units, transmitting live video for inspection of pipes, wall cavities, and machinery. Its flexible cable and compact head make it easy to maneuver, while the adjustable LED brightness ensures clear images in dark environments. The IP68 rating allows use in wet conditions, expanding its utility for plumbing and automotive diagnostics.

Full specifications

• Probe diameter: 7.6 mm
• Probe length: 1 m
• Camera resolution: 640 x 480 pixels (VGA)
• Image sensor: CMOS
• Field of view: 54°
• Depth of field: 30 - 70 mm

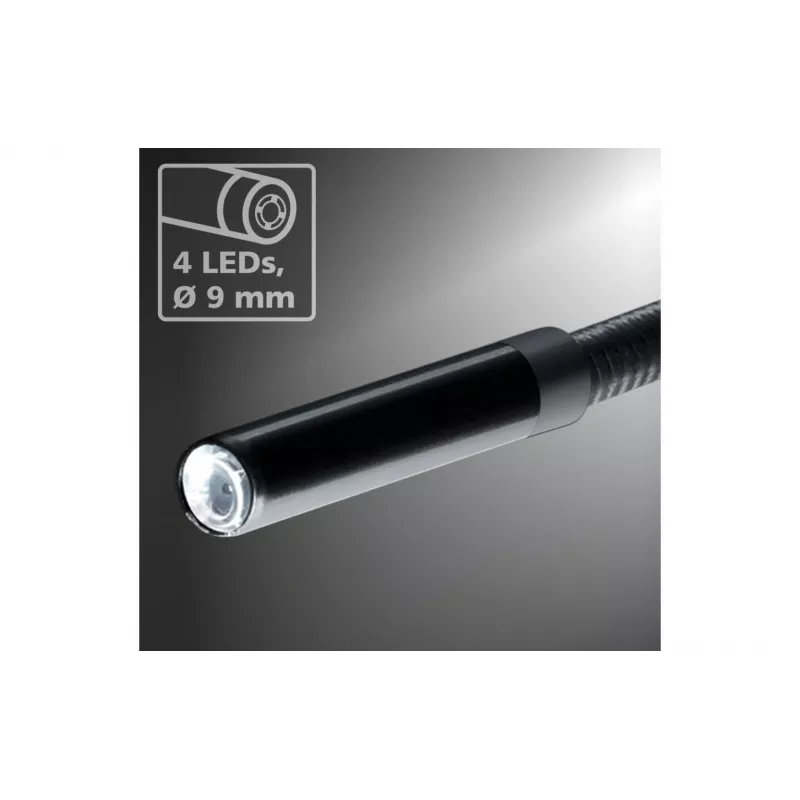

• Lighting: 4 high-power LEDs, dimmable
• Waterproof rating: IP68 (camera head and cable)

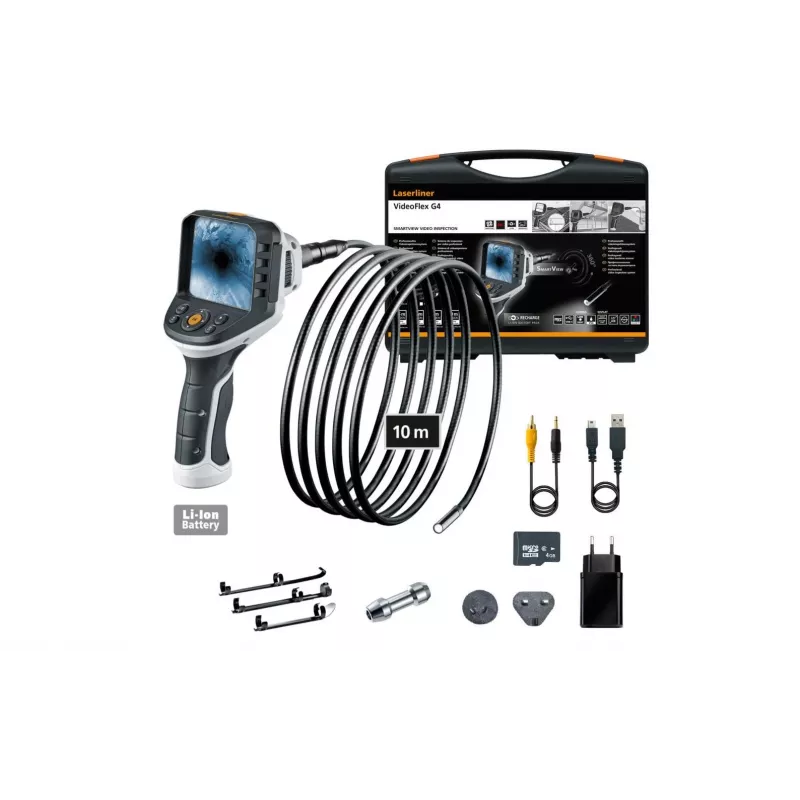

• Compatibility: Laserliner VideoFlex G3, VideoControl-Master, VideoControl-Live
• Cable type: Flexible
• Operating temperature: 0°C to 45°C
• Storage temperature: -10°C to 60°C
• Power supply: Via main unit
• Connector type: Proprietary Laserliner connector
• Material (probe head): Stainless steel / Plastic

Final note

This probe is a direct replacement or extension for Laserliner inspection systems, ensuring consistent performance and compatibility.
