Waterpas Laserliner MasterLevel Compact Plus

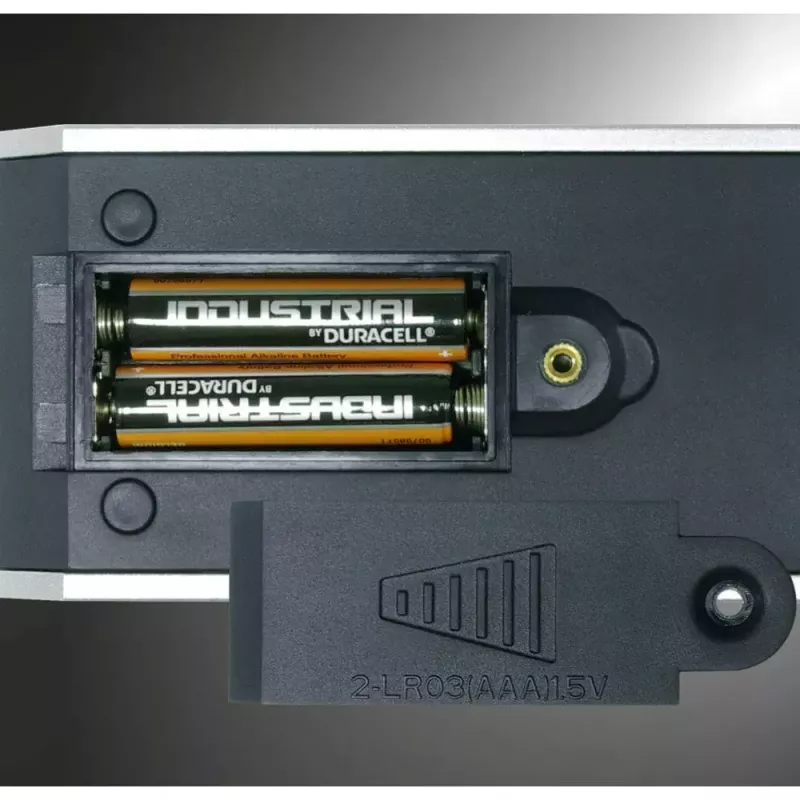

The Laserliner MasterLevel Compact Plus is a compact digital electronic spirit level with a square design, intended for accurate alignment of slopes and angle transfer. It has a 360° angle display, an automatic display flip for overhead measurements, and a hold function to retain measured values on the LCD. The device connects to smartphones via the Digital Connection interface and includes a calibration function for high measuring accuracy. Built-in magnets secure the tool to metal surfaces. It is powered by AAA 1.5 V batteries and measures 152 mm × 60 mm × 33 mm.

Advantages

The MasterLevel Compact Plus provides precise 360° angle readings and a reference function for transferring angles. Automatic display rotation improves readability during overhead use, while the hold function freezes values for easy reading. Digital Connection enables data transfer to a smartphone. Calibration increases measurement accuracy, and integrated magnets allow stable attachment to metal surfaces. Its compact dimensions make it suitable for confined workspaces.

Suitable for

Key specifications

How to use

Place the level on the surface or edge to be measured and read the angle on the 360° display. Use the reference function to set a base angle and transfer it to the workpiece. For overhead measurements the display will flip automatically so the reading remains upright. Press the hold button to freeze the displayed value for later transfer or documentation. Connect the device to a smartphone via the Digital Connection interface to send measurements or record them digitally. Replace batteries when the display indicates low power.

Recommendations

For best accuracy, perform calibration before critical measurements and ensure the magnetic surfaces are clean and free of debris when using the magnets. Store the level in a dry place and remove batteries when the tool will be unused for extended periods.
