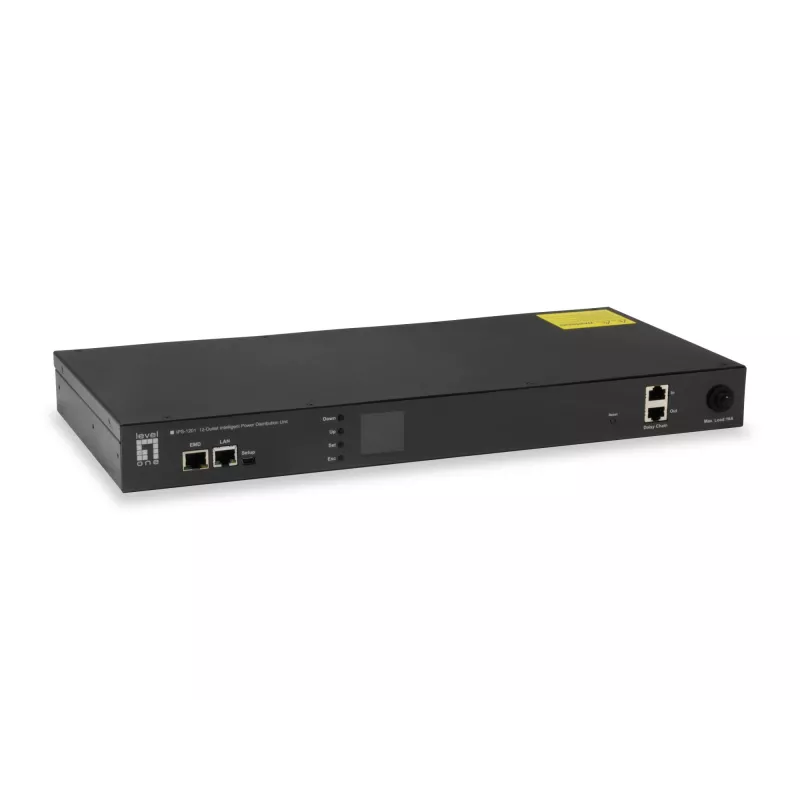

LevelOne 12-voudige intelligente power distribution unit, 200-240V AC

The LevelOne PDUIPS-1201E is a 12-outlet intelligent power distribution unit that supplies reliable AC power to rack-mounted equipment. It accepts 200–240V AC input and supports a maximum current of 16A, delivering power through twelve C13 outlets. Built-in monitoring and management tools include an LCD display for local current readouts and network-based interfaces for remote supervision using Web, SNMP and SSH protocols. Security is provided by SSH and SSL/TLS algorithms, and the unit meets FCC (Class A), CE and LVD certifications for regulatory compliance.

Advantages

The PDUIPS-1201E offers individual outlet control for remote power recycling and sequenced power-on/power-off management, enabling precise control over connected devices. Real-time load monitoring and an LCD display make it easy to track current consumption locally, while network interfaces provide centralized monitoring and alerting. The device supports environmental monitoring of temperature and humidity when integrated with network sensors, and its PIPS/POPS technology improves the accuracy of power and load measurements for data center environments.

Suitable for

• Data center racks and server rooms requiring centralized power distribution
• Network closets and telecom cabinets with multiple rack devices
• Environments needing remote outlet control and power recycling
• Installations that require power and environmental monitoring with SNMP and Web access

Key specifications

• Input voltage: 200–240V AC
• Maximum current: 16A

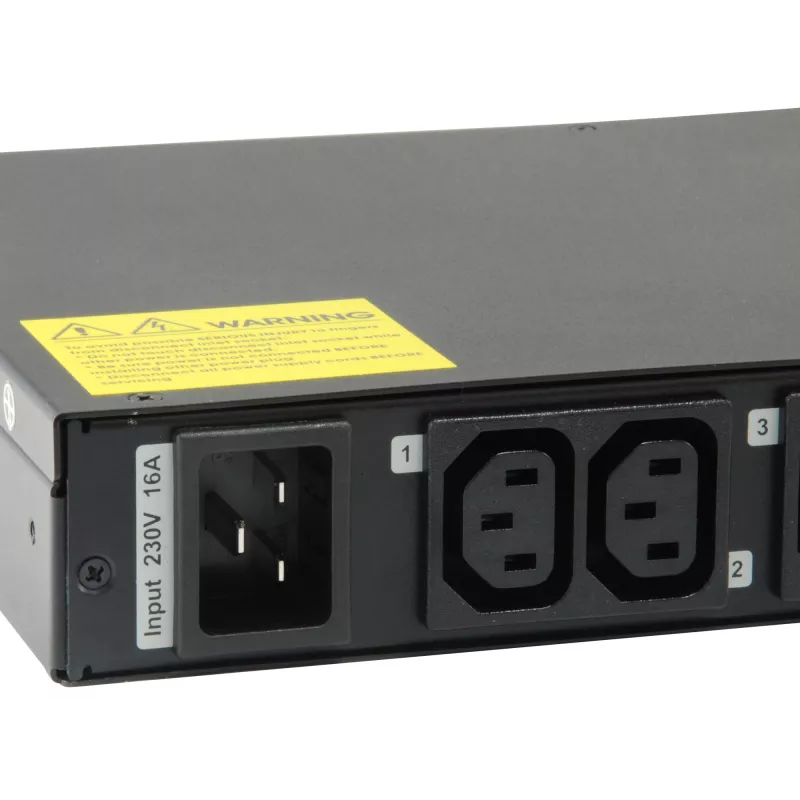

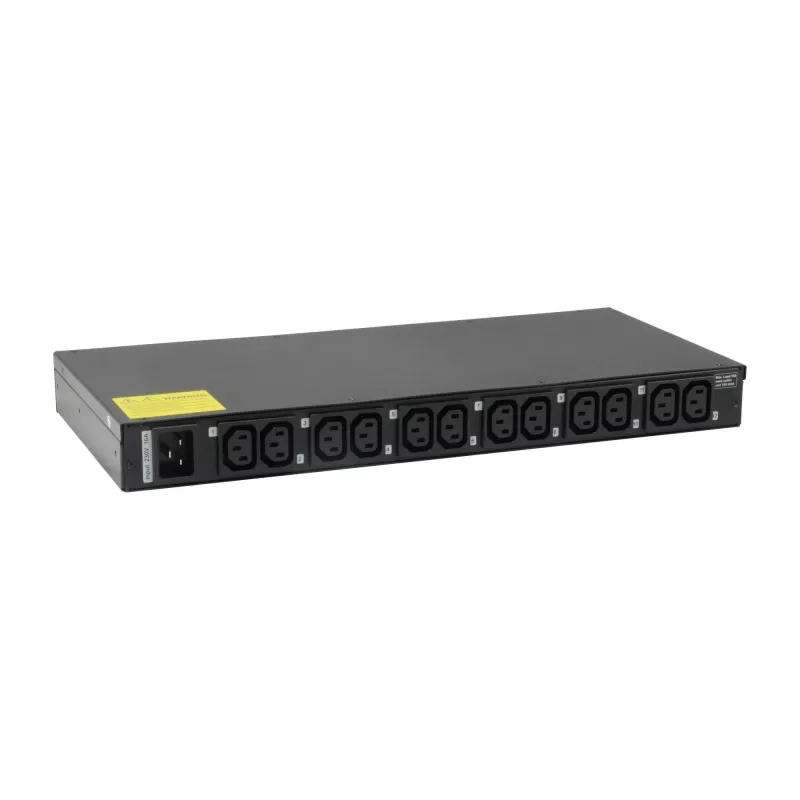

• Number of outlets: 12 C13 outlets

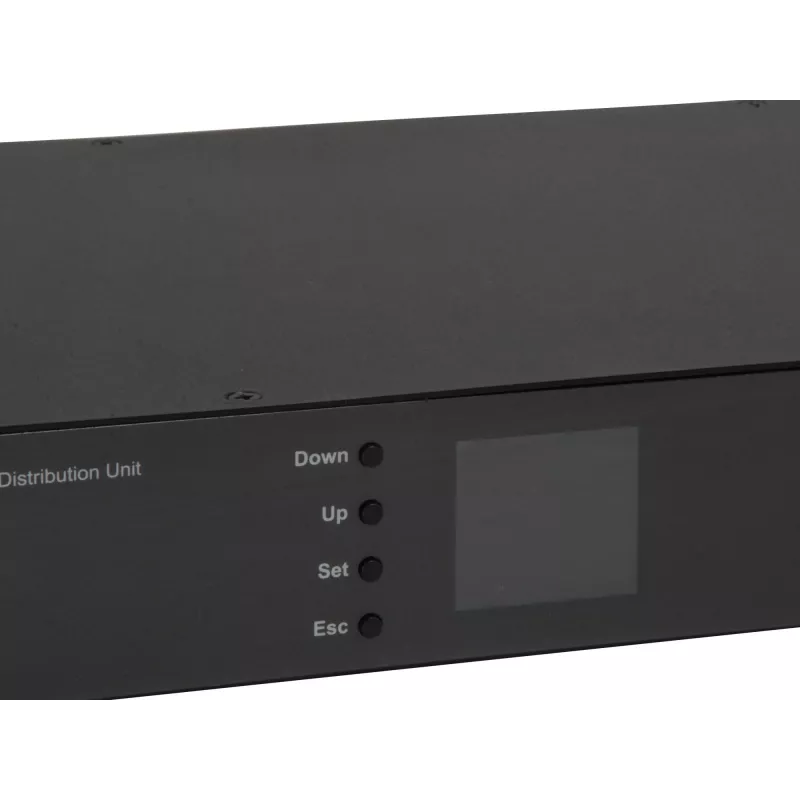

• Local display: LCD for current monitoring

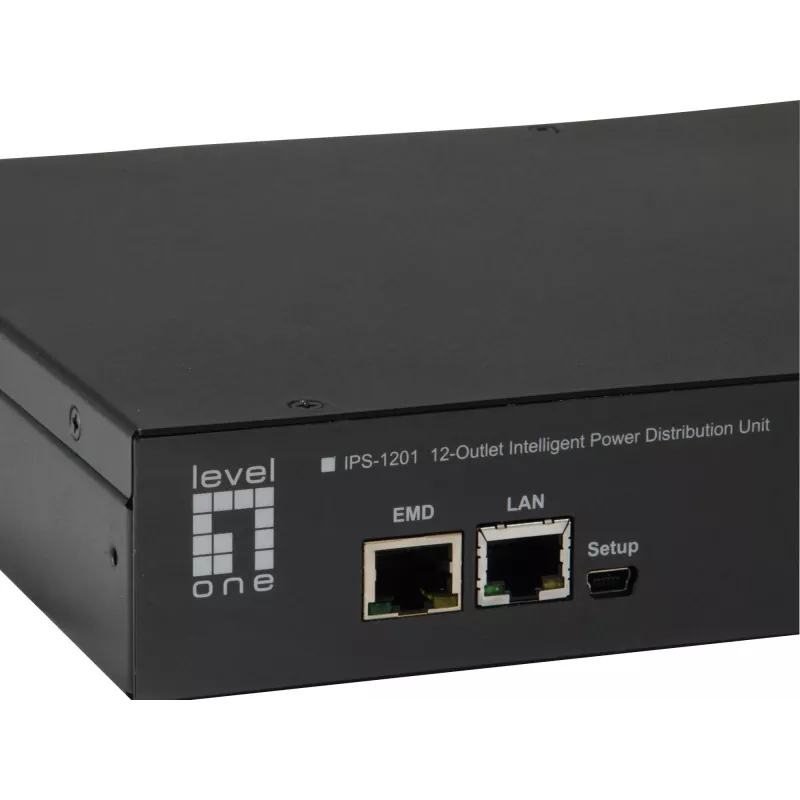

• Remote management: Web interface, SNMP, SSH
• Security: SSH and SSL/TLS algorithms for secure management
• Environmental monitoring: supports temperature and humidity monitoring via network interface
• Power monitoring: real-time remote load monitoring with PIPS/POPS technology
• Color and weight: black housing, approximately 3 kg

How to use

Install the PDU in a rack or cabinet using standard mounting hardware appropriate for its form factor. Connect the PDU to a compatible 200–240V AC power source with capacity for 16A. Plug equipment into the C13 outlets and use the local LCD to view current draw. For remote management, connect the PDU to your network and configure access via the Web interface, SNMP or SSH according to your security policies. Use individual outlet control to perform remote power recycling, and configure power-on/off sequences where needed.

Recommendations

Check that the combined load of connected devices does not exceed the 16A rating and monitor current readings regularly. Configure SNMP and email alerts to notify operators when power or environmental thresholds are exceeded. Use secure credentials and enable SSH/SSL/TLS to protect remote management access. For accurate facility-level reporting, integrate the PDU with network monitoring tools that can read the PIPS/POPS power metrics.
