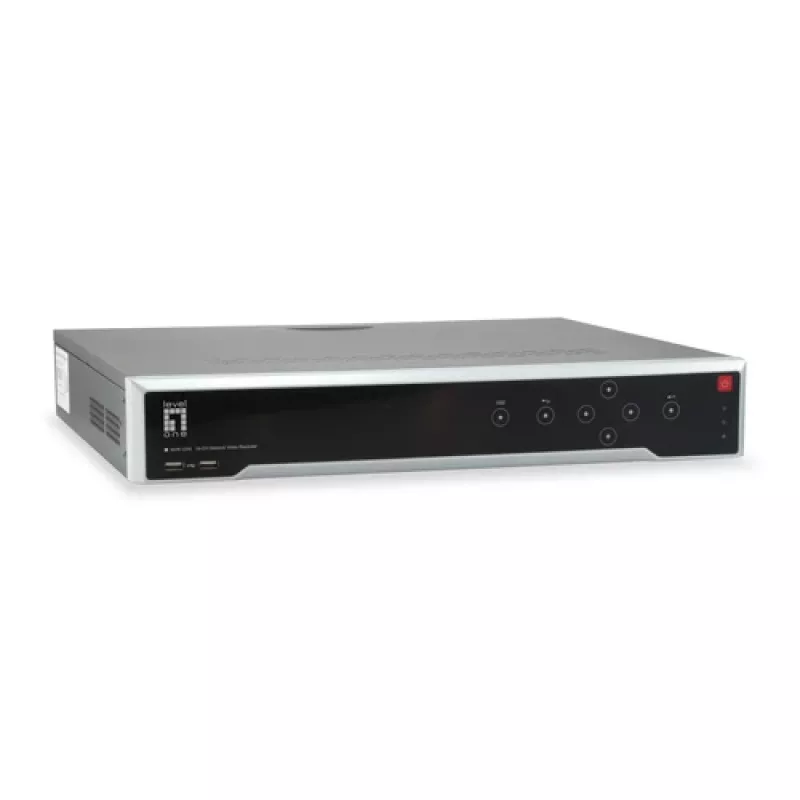

LevelOne NVR-1612 16-kanaals 12MP 4-bay netwerk videorecorder

The LevelOne NVR-1612 is a high-performance 16-channel network video recorder designed for professional surveillance systems. Supporting up to 12MP resolution recording and equipped with 4 SATA HDD bays (up to 40TB total storage), this NVR delivers reliable, high-definition video management for medium to large-scale installations.

Advantages

With support for H.265+ compression, the NVR-1612 reduces bandwidth and storage requirements without compromising image quality. Its embedded Linux operating system ensures stable, secure operation. RAID 0/1/5/6/10 support provides data redundancy for critical footage.

Suitable for

• Retail stores and shopping centers
• Office buildings and corporate campuses
• Warehouses and logistics centers
• Educational institutions and hospitals

Key specifications

• 16 IP camera channels, up to 12MP (4000x3000) resolution
• 4 SATA HDD bays, each supporting up to 10TB (max 40TB total)
• Video compression: H.265+, H.265, H.264+, H.264

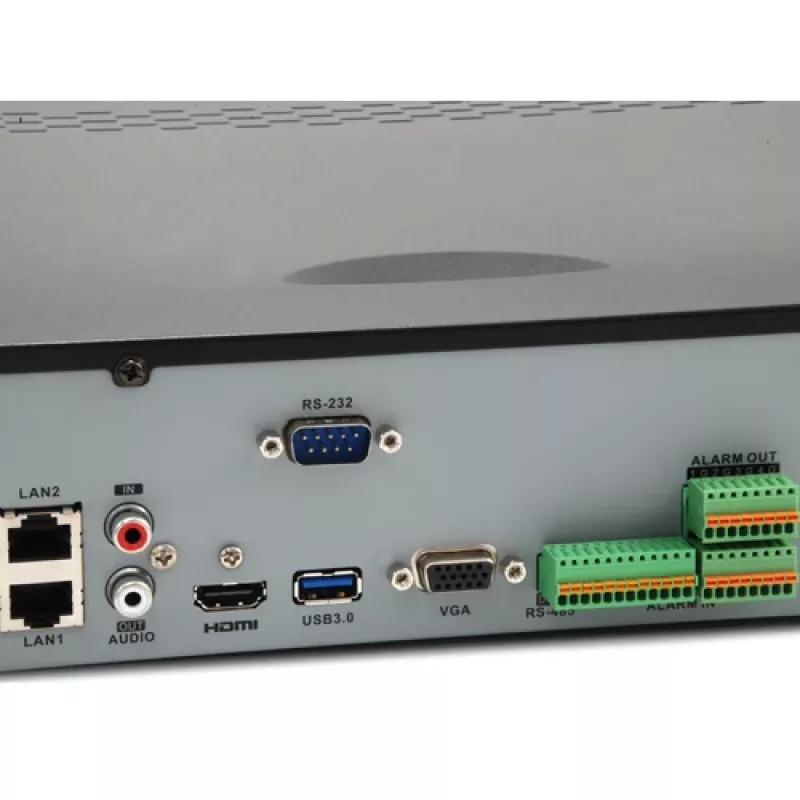

• Video output: 1x HDMI (4K), 1x VGA (1080p)
• Audio: 1x RCA in, 1x RCA out
• Network: 2x Gigabit Ethernet (RJ-45)
• USB: 1x USB 2.0, 1x USB 3.0
• Alarm: 16x alarm in, 4x alarm out
• RAID support: 0, 1, 5, 6, 10

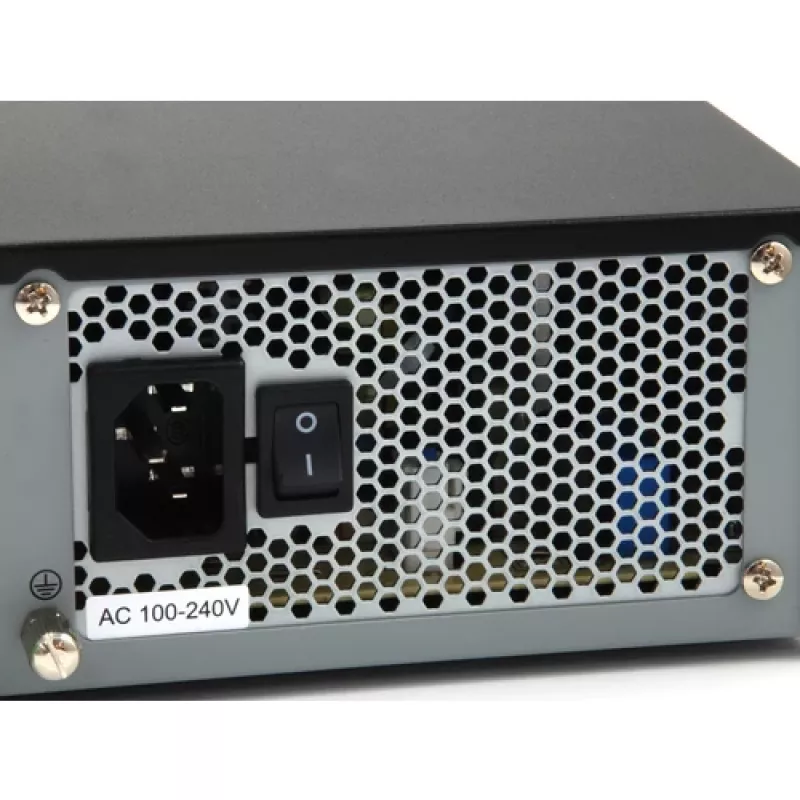

• Power: AC 100-240V, 50/60Hz
• Operating temperature: -10°C to 55°C
• Mounting: 1.5U rack-mountable

Recommendations

For optimal performance, pair with LevelOne PoE switches and high-capacity surveillance-grade HDDs. Remote access via web browser or mobile app (iOS/Android) is supported.
