LG 75XF3P-B Signage Display digital signage flatscreen 190,5 cm (75 inch) 3000 cd/m² 4K Ultra HD zwart

Customizable Open-frame Display for Smart Effciency

Open-frame Outdoor Display
LG Open Frame display empowers you to personalize not only the casing design but also the function, granting you the freedom to tailor the display to your exact preferences.

High Visibility Under
Strong Sunlight
With outstanding high brightness of 3,000 nits (Typ.), the XF3P outdoor display delivers content clearly while captivating passerby. In addition, its outdoor visibility can deliver a variety of information even to those wearing polarized sunglasses.

Optimized Design for Double-sided Display
The XF3P, featuring a sleeker design than the conventional model, excels in maximizing space efficiency with its convenient double-sided display.

Efficient Energy Management
The screen brightness is automatically adjusted depending on the ambient light. The brightness is increased in light for better visibility, while it is decreased in darkness for efficient power management. Also, XF3P uses M+ panel that can offer high energy efficiency and cost savings by decreasing power consumption.

High-performance with webOS 6.0
Quad Core SoC (System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 6.0 platform enhances not only user convenience with intuitive UI but also web-app integration with updated Node JS / Chromium version.

Wide Range of Operating Temperature
The XF3P can be used under a wide range of operating temperature from 0℃ to 50℃.

Conformal Coating
Conformal Coating protects the circuit board and power board against dust, iron powder, humidity, etc.

Installation Guide for a Customized Casing
LG offers an installation guide for designing a customized casing to ensure stable performance for outdoor displays. It includes information about the size of ventilation and the location of partitions within the casing.

Web Monitoring
The LG Control Manager, the embedded web monitoring program, is user-friendly and enables the user to have full access anywhere at anytime from their mobile phone or PC while having access to both current and past data. It allows the user to monitor the unit, make adjustments, and control the unit remotely in real time.

Professional Content Partners
Pairing the XF3P with LG SW solutions would enhance its utilization.

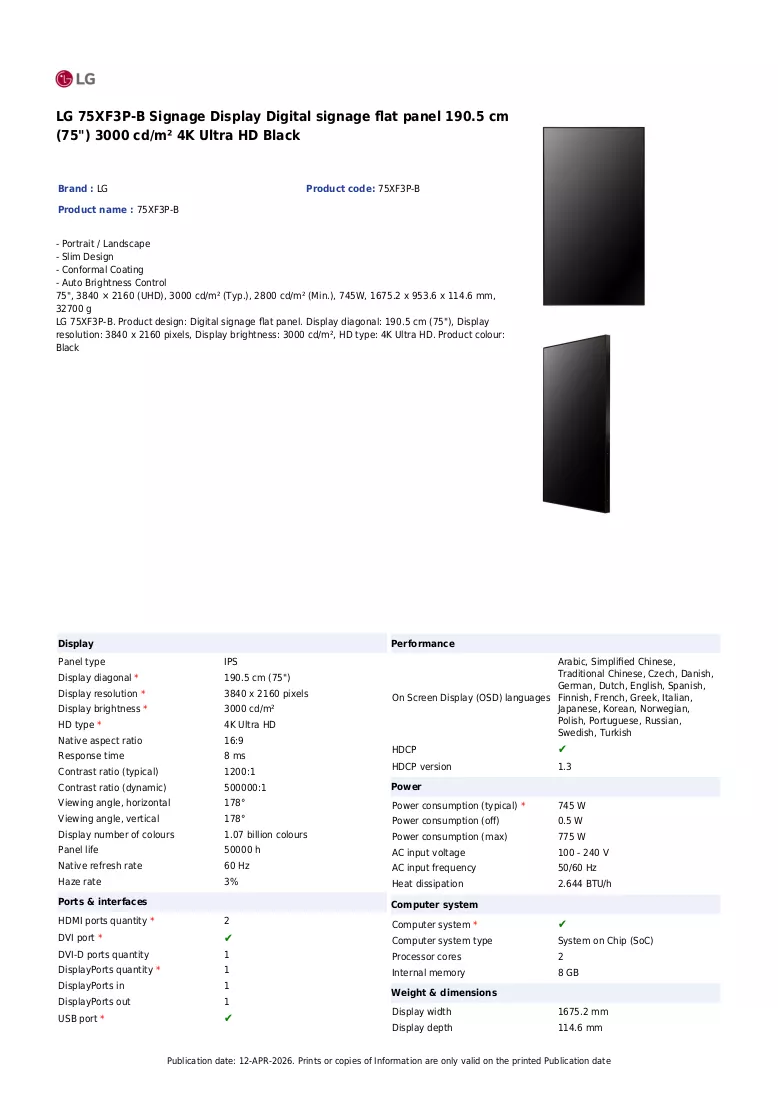

LG 75XF3P-B. Product design: Digital signage flat panel. Display diagonal: 190.5 cm (75"), Display resolution: 3840 x 2160 pixels, Display brightness: 3000 cd/m², HD type: 4K Ultra HD. Product colour: Black

How to use

Install the display according to the manufacturer’s mechanical and ventilation guidelines for open-frame or customized casings to ensure stable operation. Choose portrait or landscape orientation and mount securely, taking into account double-sided deployment if required. Connect to network via Ethernet LAN and access the built-in webOS 6.0 interface to upload content or integrate web apps. Use LG Control Manager for remote monitoring, status checks and adjustments. Configure auto brightness and power settings to match the installation environment and intended operating hours.

Recommendations

For outdoor or window installations, follow the LG installation guide for customized casings to provide adequate ventilation and partitioning. Schedule periodic inspections of the enclosure and ensure that conformal coating and seals remain intact. Use web monitoring to track display temperature and performance, and adjust brightness profiles to balance visibility and energy consumption.
