LG 86BH5F-M signage-display digital-signage flatscreen 2,18 m (86 inch) Wi-Fi 500 cd/m² zwart WebOS 24/7

58:9 Space-Fitting Wide Screen
The 86BH5F is the most suitable display for delivering new forms of advertising and multiplexed information in a 58:9 widescreen format. It can bring unused & leftover space to life by being installed without restriction.

58:9 Extended Wide Format
It is a unique wide screen with 58:9 bar type which provides much more flexibility in playing content* than the conventional display of 16:9 ratio.

Ultra HD Resolution (3,840 x 600)
Ultra HD resolution delivers an immersive viewing experience with vivid colors and clear images.

Multi Screen Mode with 4PBP
The Picture-by-Picture (PBP) feature allows you to show multi content in one single display by up-to four parts. It is very useful and convenient to deliver various advertisements or pieces of information at the same time without calibration.

Tiled Scene with Immersive View
The 86BH5F can show a tiled scene by up to 15 × 15 configuration. This will be the best choice if you want to use a large screen, or provide visual impact to your customers in a different way.

IP5x Certified Design
The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation.

User-Friendly UX
The 86BH5F is equipped with a user-friendly UX to simplify approach flows, groups similar functions together, and adopts an intuitive GUI for ease of use. When using the display in portrait mode, OSD* can also be adjusted accordingly.

LAN Daisy Chain Management
By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware.

Real-Time Monitoring with LG ConnectedCare
Easier and faster maintenance are available with our optional cloud service solution LG ConnectedCare*. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.

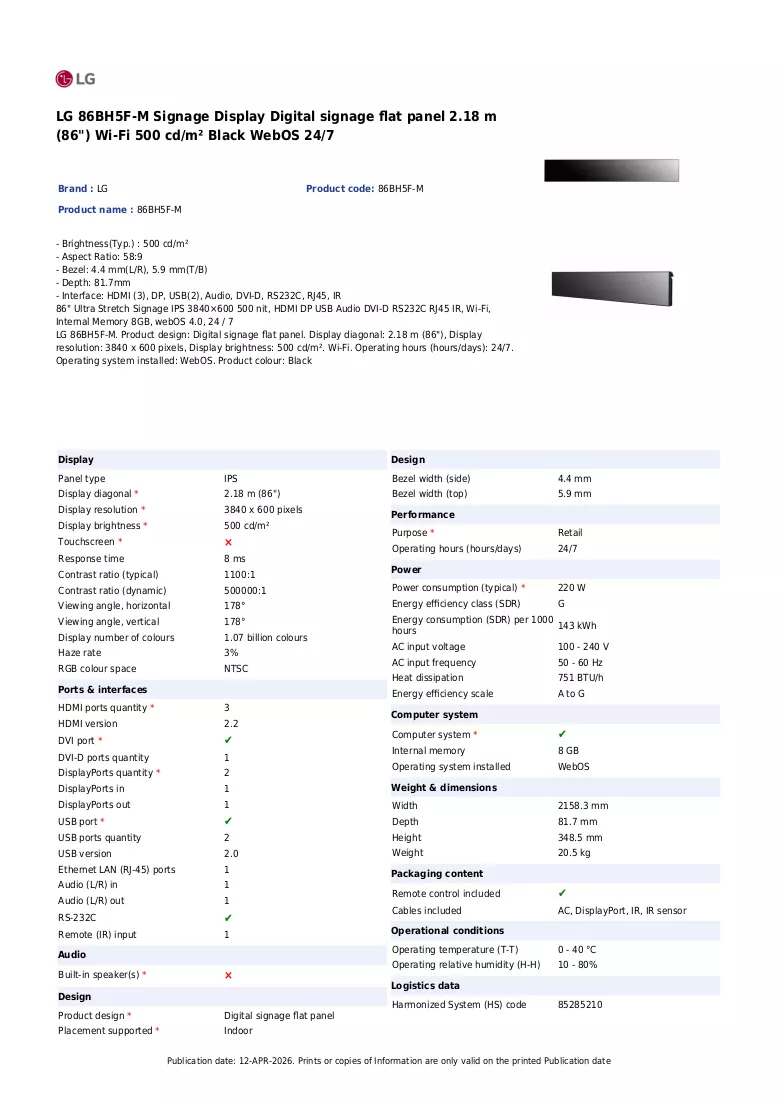

LG 86BH5F-M. Product design: Digital signage flat panel. Display diagonal: 2.18 m (86"), Display resolution: 3840 x 600 pixels, Display brightness: 500 cd/m². Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: WebOS. Product colour: Black

How to use

Install the display in the intended horizontal or vertical orientation using appropriate VESA-compatible mounts. Connect power and network (LAN or Wi‑Fi) and configure the WebOS operating system for signage playback. Use the Picture-by-Picture (4PBP) mode to present up to four simultaneous contents without external calibration, or create large tiled scenes up to a 15×15 configuration for immersive visuals. When deployed in portrait mode, adjust the on-screen display (OSD) accordingly.

Recommendations

For reliable 24/7 operation, mount the panel in a dust-controlled environment where possible and enable LAN daisy-chain management plus LG ConnectedCare for proactive monitoring, remote firmware updates and simplified maintenance.
