LG scherm 13,3 inch, 1366x768, 60Hz, glanzend, 30-pins, rechts

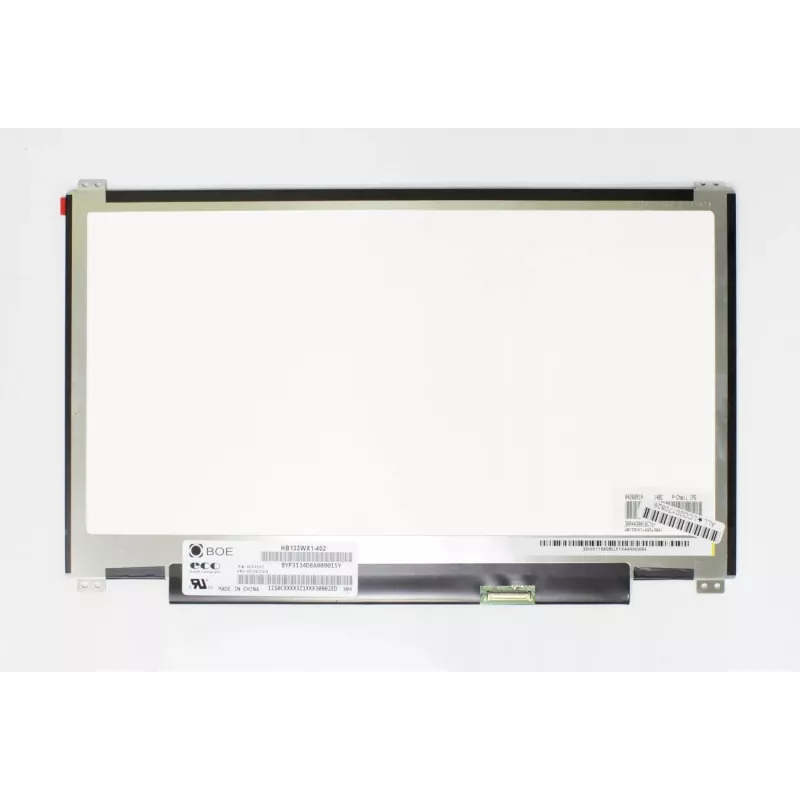

This 13.3-inch replacement panel stands out with its right-side 30-pin connector placement, a detail that simplifies installation in many laptop chassis where cable routing is constrained. The glossy WXGA surface delivers crisp text and vivid colours for everyday productivity.

Highlights

• 13.3-inch TFT Active Matrix LCD with LED backlight
• 1366 x 768 (WXGA) resolution, 16:9 aspect ratio
• Glossy finish for enhanced colour saturation
• 30-pin LVDS connector positioned on the right when viewed from the back
• TN panel with 60 Hz refresh rate and 8 ms response time

In daily use

The 200 cd/m² brightness and 45% NTSC colour gamut are suited to indoor environments. Viewing angles of 45/45/20/40 degrees (L/R/U/D) mean the image remains legible when the screen is tilted, though colour shift is noticeable from extreme vertical angles. Power draw stays low at 3.5 W maximum, helping preserve battery life.

Full specifications

• Screen size: 13.3 inch
• Resolution: 1366 x 768 (WXGA)
• Aspect ratio: 16:9
• Refresh rate: 60 Hz
• Surface type: Glossy
• Backlight type: LED
• Connector type: 30-pin LVDS
• Connector position: Right (viewed from back)
• Display technology: TFT Active Matrix LCD
• Panel type: TN
• Brightness: 200 cd/m²
• Response time: 8 ms
• Colour gamut: 45% NTSC
• Viewing angle (H/V): 45/45/20/40
• Power consumption (max): 3.5 W
• Operating temperature: 0°C to 50°C

Final note

Compatible with a range of laptop models that require a 13.3-inch WXGA panel with a right-side 30-pin connection. Verify your original screen's connector position and mounting brackets before ordering.
