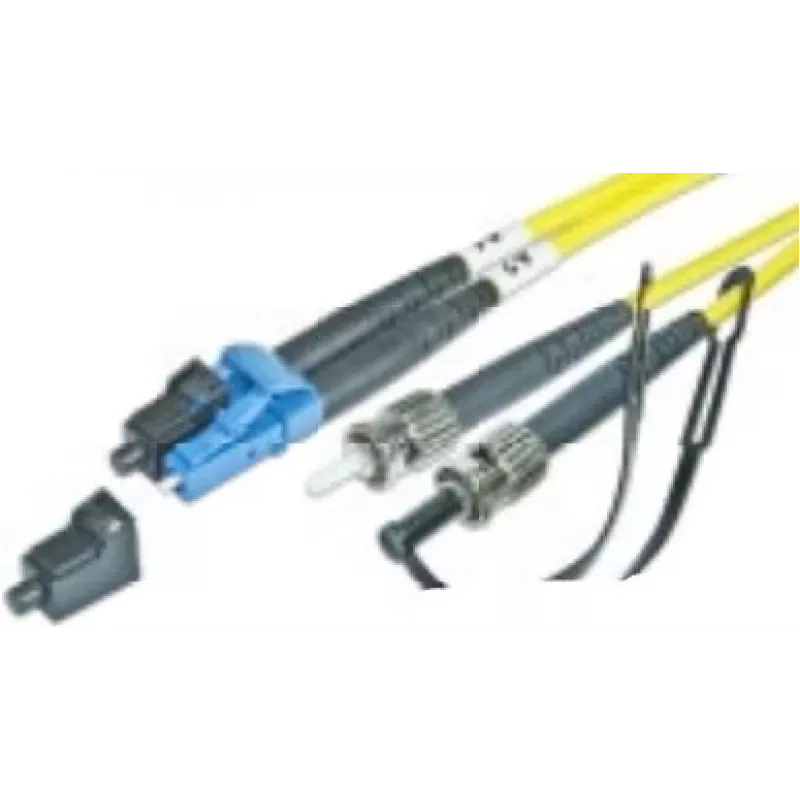

Lightwin 3m LC-ST duplex multimode OM3 glasvezel-patchkabel, 50/125µm, PVC-mantel, zwart LDP-50 LC-ST 3.0 OM3

Fiber optic patch cable with LC to ST connectors, 3 meters long, using multimode OM3 fiber for high-speed data transmission up to 10 Gbps. Ideal for short-range backbone and horizontal cabling in data centers and enterprise networks, this duplex cable ensures reliable connections with low insertion loss and excellent return loss characteristics.

Advantages

OM3 fiber supports 10 Gigabit Ethernet over distances up to 300 meters, providing future-proof performance. The duplex zip-cord construction with PVC jacket offers durability and easy handling, while the crossed polarity (A-B) simplifies installation in standard network setups. RoHS compliant, this cable meets environmental standards.

Suitable for

• Data center interconnects and server-to-switch links
• Enterprise backbone cabling for high-speed LANs
• Fibre Channel storage area networks
• Telecommunications rooms and horizontal cabling

Key specifications

• Connector A: LC Male
• Connector B: ST Male
• Cable length: 3 m
• Fiber type: Multimode OM3, 50/125 µm
• Number of fibers: 2 (Duplex)
• Jacket material: PVC, black
• Insertion loss: < 0.3 dB typical
• Return loss: > 30 dB typical
• Bandwidth: 2000 MHz·km at 850 nm
• Operating temperature: -20°C to 70°C

Recommendations

For optimal performance, pair with OM3-compatible transceivers and ensure proper bend radius during installation. Test with a fiber optic power meter to verify link quality.
