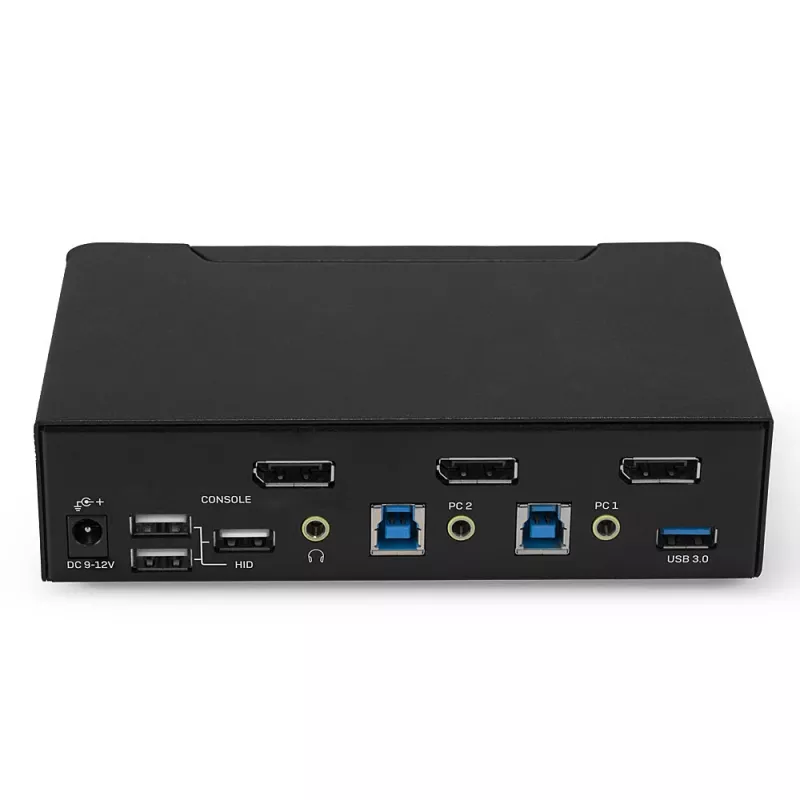

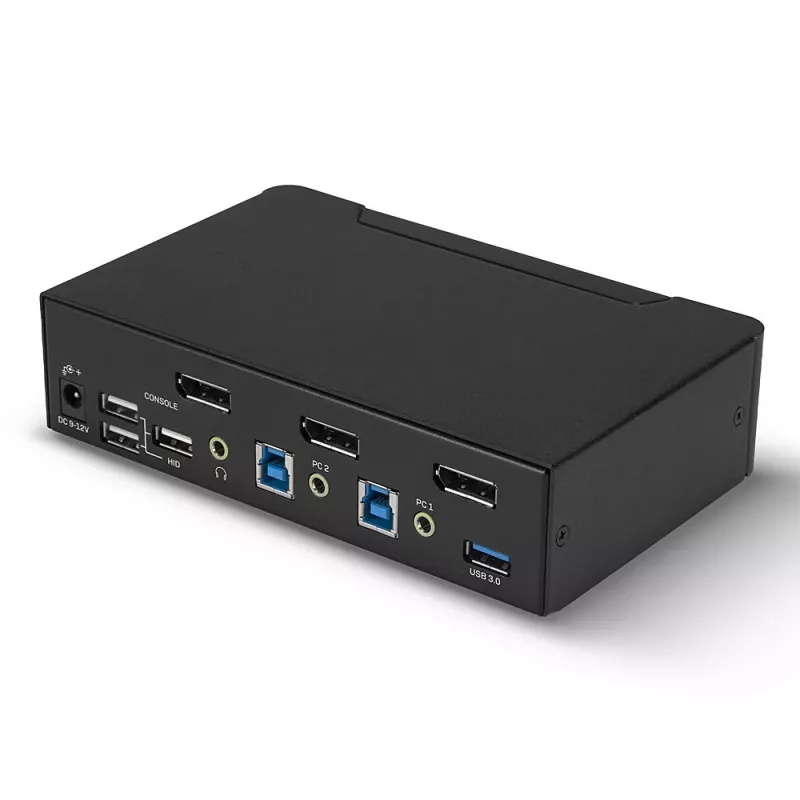

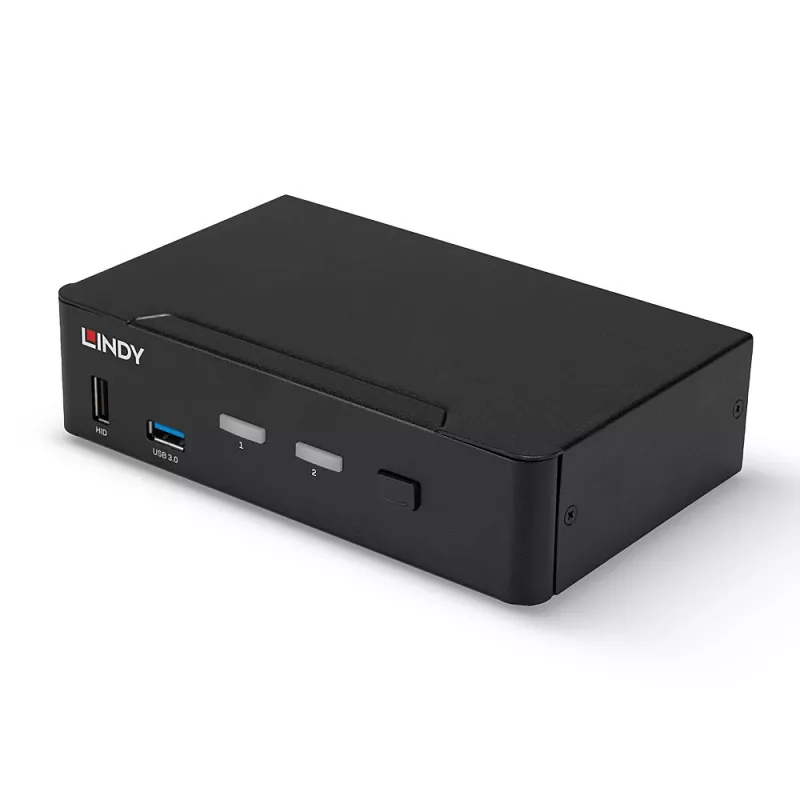

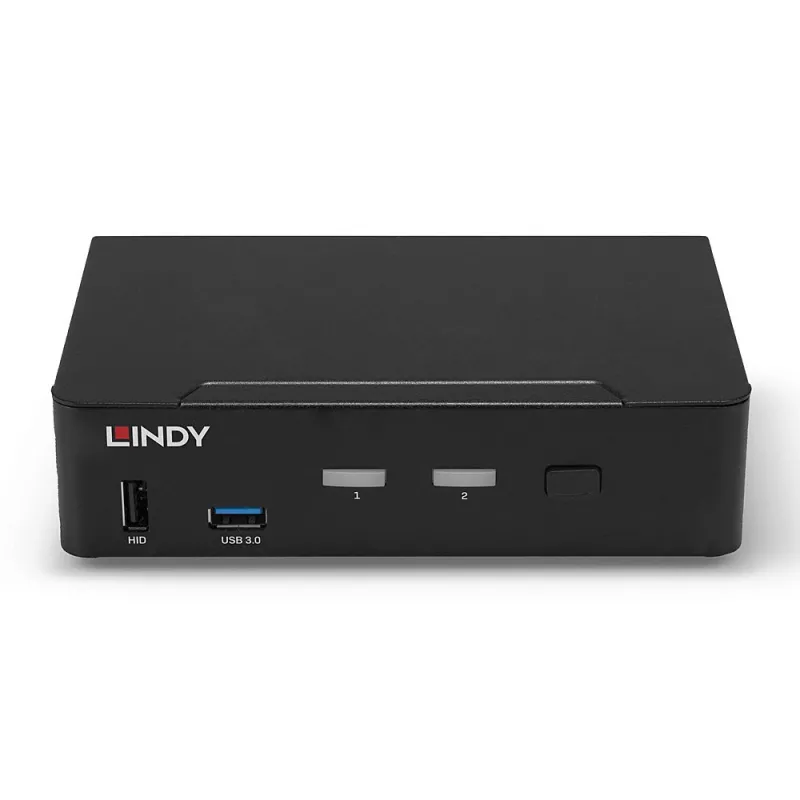

Lindy 2-poorts DisplayPort 1.4, USB 3.0 en audio KVM-switch

A KVM switch allows an operator to conveniently control and manage multiple devices, such as PCs and servers, from a single keyboard, mouse and display console.

The Lindy 2 Port DisplayPort 1.4, USB 3.0 and Audio KVM Switch is a compact solution for providing access and control over two DP equipped PCs from a single keyboard, mouse and monitor.

Support for resolutions up to 8K Ultra HD 60Hz including 4K and full HD ensures the highest image quality and an exceptional viewing experience, perfect for demanding graphical content in gaming setups, video editing or dual system control workstations. The additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, greater contrasts and a much wider colour gamut. The audio output port on the front panel also allow users to connect headphones or speakers to add immersive 2CH audio, while additional USB peripherals can be integrated with the 2 ports USB 3.0. Both audio and USB 3,0 ports can be switched independently of the computers allowing users to print from one PC whilst working on another for example.

It supports Auto Scan function also with different durations of the scan period, perfect for digital signage and advertising applications.

The KVM switch features multiple switching options including push buttons on the unit and configurable hotkeys that provide simple, reliable control for the user, great for both professional and first time users.

Please Note: connection cables are not included, we suggest to use DP cables up to 3m and USB 3.0 Type A/B cables up to 3m to reach the highest resolutions and best performances. MST hubs are not supported.

Lindy 2 Port DisplayPort 1.4, USB 3.0 and Audio KVM Switch. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 7680 x 4320 pixels, Video bandwidth: 60 Hz. Product colour: Black, Housing material: Metal, LED indicators: Status. Power source: DC, Input voltage: 12 V, Input current: 1.5 A. Compliance certificates: CE, REACH, RoHS

How to use

Connect each computer to the KVM using DisplayPort cables to the video inputs and USB Type-A/B cables for keyboard/mouse and USB 3.0 functionality. Attach your monitor to the DisplayPort output and plug headphones or speakers into the front-panel audio jack if required. Use the front push buttons or configured hotkeys to switch control between the two connected computers. Configure the Auto Scan interval via the device controls when rotating between sources is needed.

Recommendations

To achieve the stated maximum resolutions and best performance, use DisplayPort cables up to 3 m and USB 3.0 Type A/B cables up to 3 m. MST hubs are not supported. Cables are not included.
